Model EUT8841S
EU 4-gang switching · Touch only
EUT8841S: 4-gang switching in a EU-format glass touch panel. Touch only; single live wire only (l). 110–240V AC · 50/60Hz.
Model-specific documentation available on request
- EUT8841S: 4-gang switching in a EU-format glass touch panel. Touch only; single live wire only (l). 110–240V AC · 50/60Hz.
- Function: 4-gang switching
- Product catalogue · page 22
- Product catalogue · page 24
- Dimensions & wiring reference 1
- Dimensions & wiring reference 2
No matching certificate PDF for EUT8841S is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
Specification notes
- The catalogue dimension sheet includes different rear housing and base versions. Confirm the exact body drawing and wall-box compatibility for the ordered model; a shared face format does not establish an identical rear housing.
- This is a touch-only control, not a Wi-Fi or Zigbee model. App, voice and remote-control features are not claimed for this configuration.
Choosing this model
Four gangs on the EU touch panel. At this width the panel dominates the wall, so the plate and frame choice matters as much as the switching function.
Technical Parameters
| Model | EUT8841S |
|---|---|
| Available finishes | Black / White / Gold / Grey |
| Face format | EU glass panel |
| Control mode | Touch only |
| Function | 4-gang switching |
| Operating voltage | 110–240V AC · 50/60Hz |
| Published load | LED: 3–100W · resistive: 3–300W |
| Face material | Tempered glass |
| Available face colors | White · Black · Gold · Grey |
| Number of switched gangs | 4 |

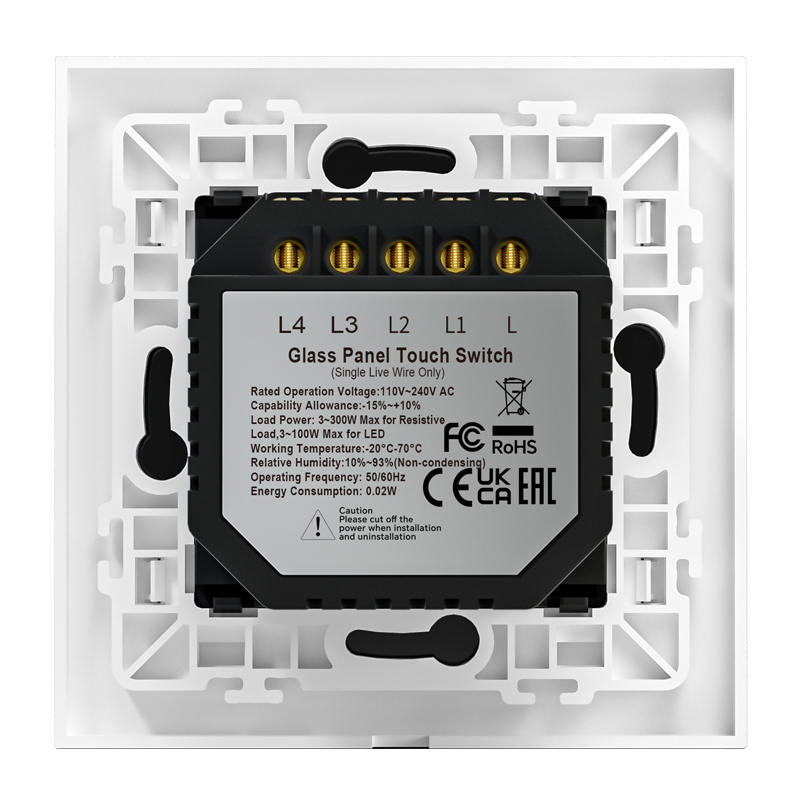

| Wiring requirement | Single live wire only (L) |
| Source model designation | EUT8841S |
