Model EUT8831S
EU 3-gang switching · Touch only

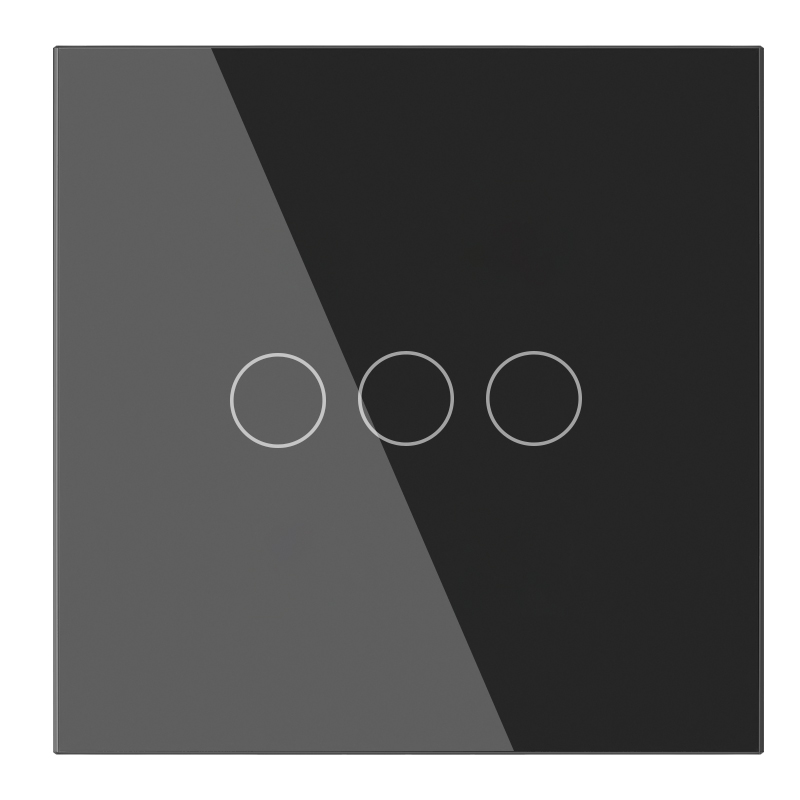

EUT8831S: 3-gang switching in a EU-format glass touch panel. Touch only; single live wire only (l). 110–240V AC · 50/60Hz.
Model-specific documentation available on request
- EUT8831S: 3-gang switching in a EU-format glass touch panel. Touch only; single live wire only (l). 110–240V AC · 50/60Hz.
- Function: 3-gang switching
- Product catalogue · page 22
- Product catalogue · page 24
- Dimensions & wiring reference 1
- Dimensions & wiring reference 2
No matching certificate PDF for EUT8831S is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
Specification notes
- The catalogue dimension sheet includes different rear housing and base versions. Confirm the exact body drawing and wall-box compatibility for the ordered model; a shared face format does not establish an identical rear housing.
- This is a touch-only control, not a Wi-Fi or Zigbee model. App, voice and remote-control features are not claimed for this configuration.
Technical Parameters
| Model | EUT8831S |
|---|---|
| Available finishes | Black / White / Gold / Grey |
| Face format | EU glass panel |
| Control mode | Touch only |
| Function | 3-gang switching |
| Operating voltage | 110–240V AC · 50/60Hz |
| Published load | LED: 3–100W · resistive: 3–300W |
| Face material | Tempered glass |
| Available face colors | White · Black · Gold · Grey |
| Number of switched gangs | 3 |
| Wiring requirement | Single live wire only (L) |
| Source model designation | EUT8831S |
