Model UST8821
US 2-gang switching · Touch only
UST8821: 2-gang switching in a US-format glass touch panel. Touch only; single live wire. 110–240V AC · 50/60Hz.
Model-specific documentation available on request
- UST8821: 2-gang switching in a US-format glass touch panel. Touch only; single live wire. 110–240V AC · 50/60Hz.
- Function: 2-gang switching
- Product catalogue · page 19
- Product catalogue · page 21

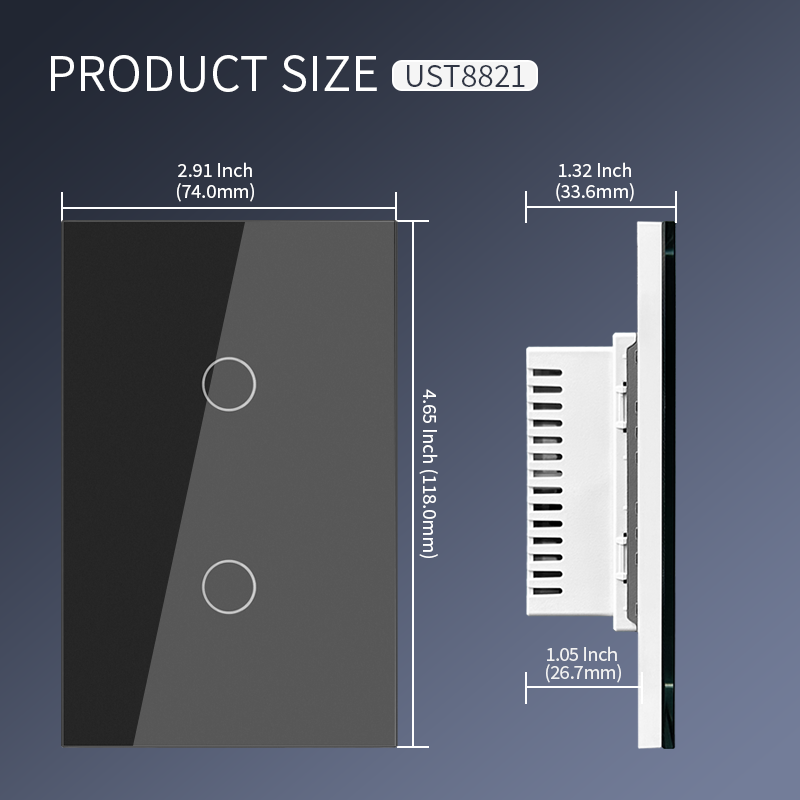

- Dimensions & wiring reference 1

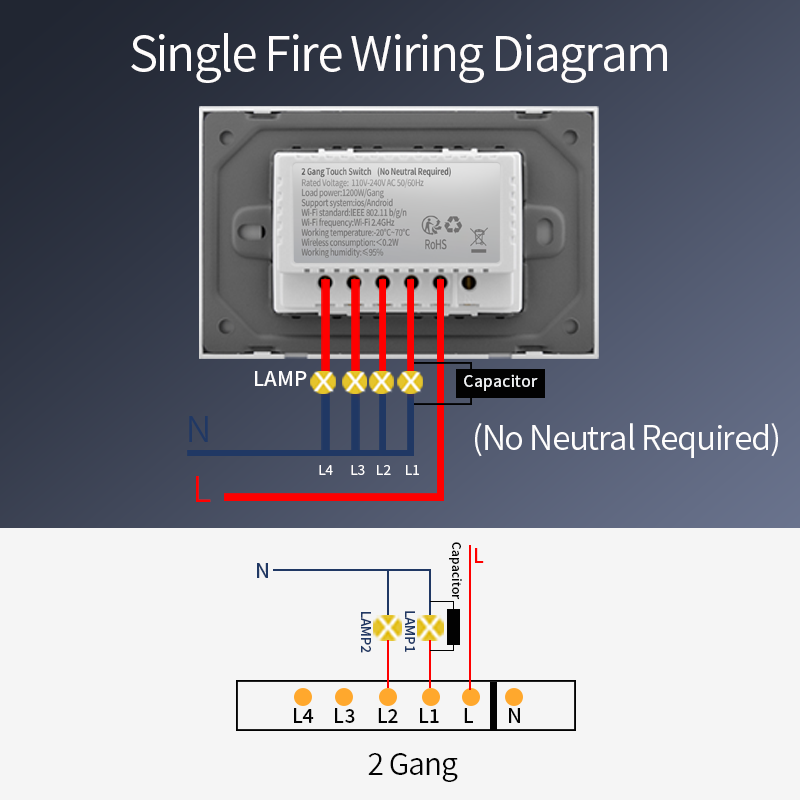

- Dimensions & wiring reference 2
No matching certificate PDF for UST8821 is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
Specification notes
- The catalogue dimension sheet includes different rear housing and base versions. Confirm the exact body drawing and wall-box compatibility for the ordered model; a shared face format does not establish an identical rear housing.
- The catalogue load figure does not identify every lamp or motor load type. Confirm the permitted load, minimum load and any required bypass with the model-specific instructions.
- This is a touch-only control, not a Wi-Fi or Zigbee model. App, voice and remote-control features are not claimed for this configuration.
Choosing this model
Two gangs on one panel, touch only. It reads as two switches because it controls two circuits, but it is one device occupying one box, so the load behind each gang has to be checked separately before the panel is specified.
Technical Parameters
| Model | UST8821 |
|---|---|
| Available finishes | Black / White / Grey / Gold |
| Face format | US glass panel |
| Control mode | Touch only |
| Function | 2-gang switching |
| Operating voltage | 110–240V AC · 50/60Hz |
| Published load | 1200W / gang |
| Face material | Tempered glass |
| Available face colors | White · Black · Gold · Grey |
| Number of switched gangs | 2 |
| Wiring requirement | Single live wire |
| Source model designation | UST8821 |
