Model USW8811

US 1-gang switching · Wi-Fi + touch

USW8811: 1-gang switching in a US-format glass touch panel. Wi-Fi + touch; neutral required (n + l). 90–250V AC · 50/60Hz.

Available finishes

Model-specific documentation available on request

  • USW8811: 1-gang switching in a US-format glass touch panel. Wi-Fi + touch; neutral required (n + l). 90–250V AC · 50/60Hz.
  • Function: 1-gang switching
Read the guide: Smart switches with or without neutral: which version fits?

Choosing this model

Wi-Fi and touch, one gang, neutral required. The neutral is the deciding fact: if the box has only a switch loop, this model is not installable without new cable. Where the neutral exists, it is the simplest connected option because the panel talks to the router directly.

Technical Parameters

USW8811 technical parameters
ModelUSW8811
Available finishesBlack / White / Grey / Gold

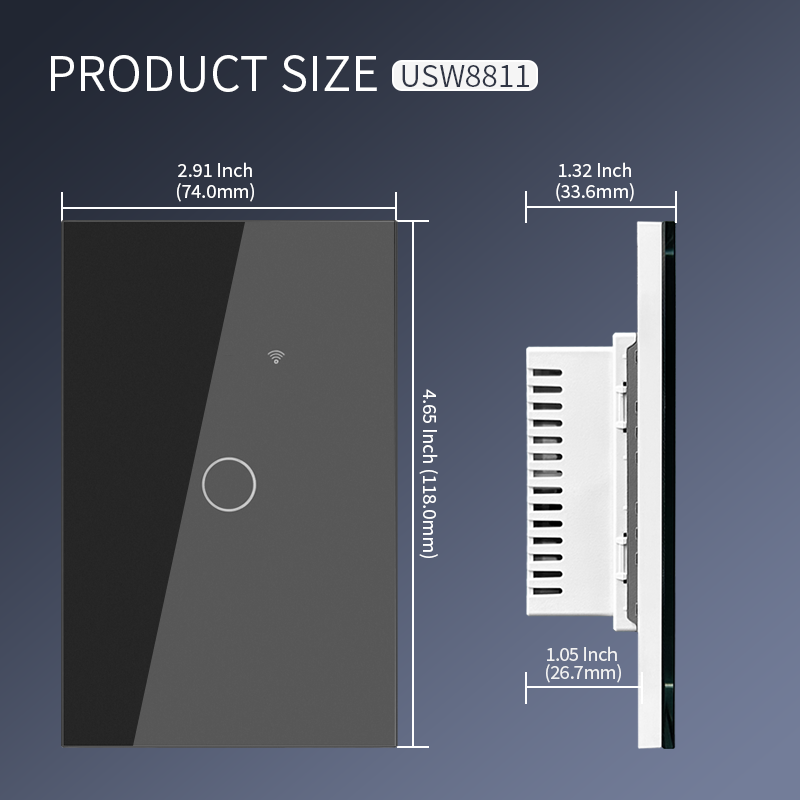

Face formatUS glass panel
Control modeWi-Fi + touch
Function1-gang switching
Operating voltage90–250V AC · 50/60Hz
Published load1200W / gang
Face materialTempered glass
Available face colorsWhite · Black · Gold · Grey
Number of switched gangs1

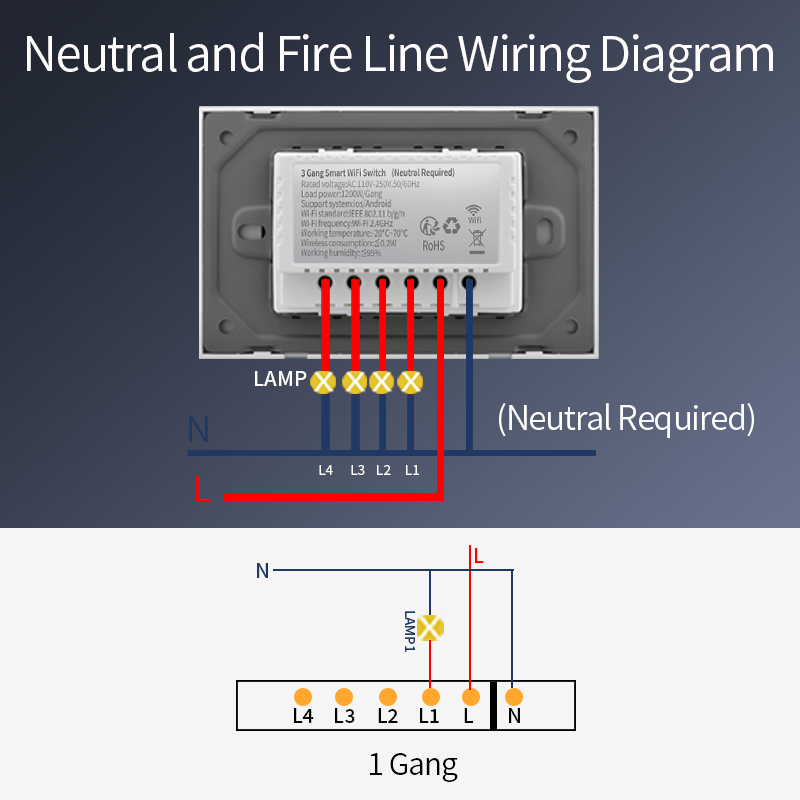

Wiring requirementNeutral required (N + L)
Source model designationUSW8811
