Model USW8821-S
US 2-gang switching · Wi-Fi + touch
USW8821-S: 2-gang switching in a US-format glass touch panel. Wi-Fi + touch; single live wire. 110–240V AC · 50/60Hz.
Model-specific documentation available on request
- USW8821-S: 2-gang switching in a US-format glass touch panel. Wi-Fi + touch; single live wire. 110–240V AC · 50/60Hz.
- Function: 2-gang switching
- Product catalogue · page 19
- Product catalogue · page 21

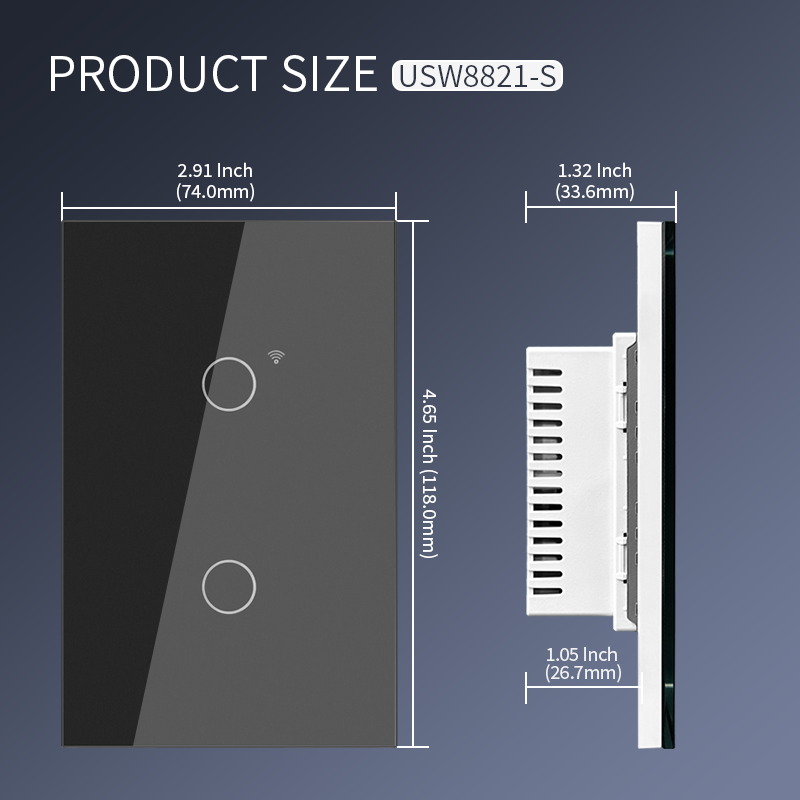

- Dimensions & wiring reference 1

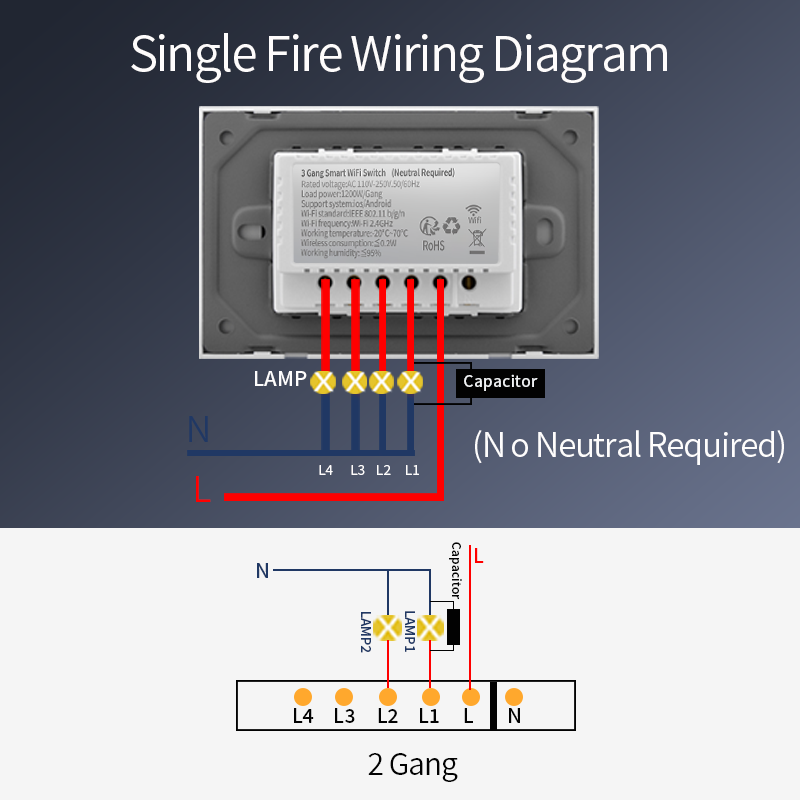

- Dimensions & wiring reference 2
No matching certificate PDF for USW8821-S is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
Specification notes
- The catalogue dimension sheet includes different rear housing and base versions. Confirm the exact body drawing and wall-box compatibility for the ordered model; a shared face format does not establish an identical rear housing.
- The catalogue load figure does not identify every lamp or motor load type. Confirm the permitted load, minimum load and any required bypass with the model-specific instructions.
Technical Parameters
| Model | USW8821-S |
|---|---|
| Available finishes | Black / White / Grey / Gold |
| Face format | US glass panel |
| Control mode | Wi-Fi + touch |
| Function | 2-gang switching |
| Operating voltage | 110–240V AC · 50/60Hz |
| Published load | 1200W / gang (catalogue rating; confirm load type) |
| Face material | Tempered glass |
| Available face colors | White · Black · Gold · Grey |
| Number of switched gangs | 2 |
| Wiring requirement | Single live wire |
| Source model designation | USW8821-S |
