Model UST8832
US Dimming · Touch only
UST8832: dimming in a US-format glass touch panel. Touch only; source conflict — confirm wiring. 110–240V AC · 50/60Hz (catalogue; confirm supplied version).
Wiring conflict in source documents: confirm whether the supplied UST8832 requires a neutral wire before ordering.
Model-specific documentation available on request
- UST8832: dimming in a US-format glass touch panel. Touch only; source conflict — confirm wiring. 110–240V AC · 50/60Hz (catalogue; confirm supplied version).
- Function: Dimming
- Product catalogue · page 20
- Product catalogue · page 21
- Dimensions & wiring reference 1
- Dimensions & wiring reference 2
No matching certificate PDF for UST8832 is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
Specification notes

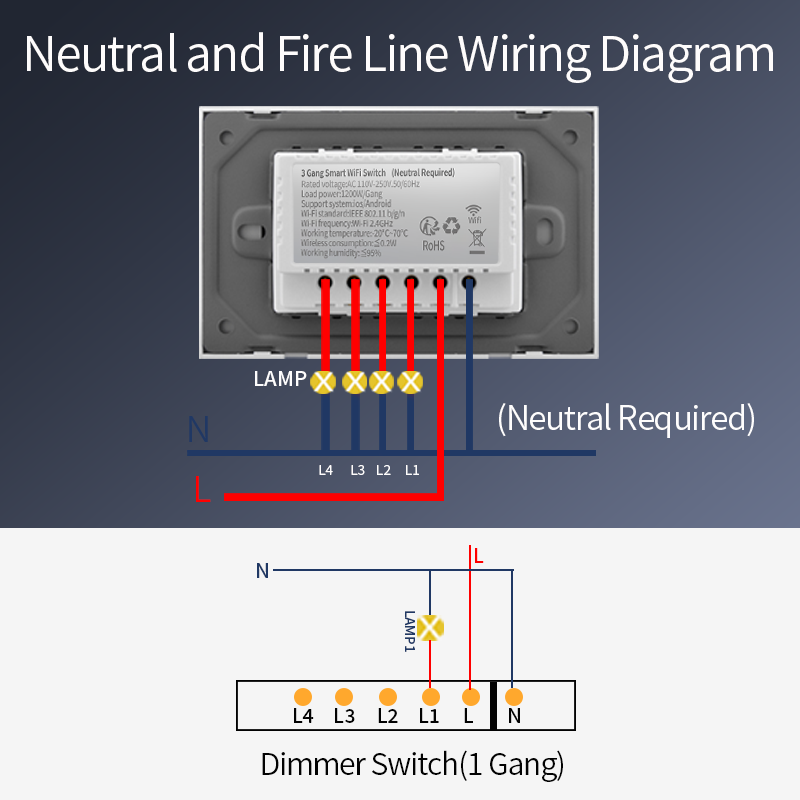

- Catalogue page 20 calls UST8832 single-live-wire, but the model-specific artwork explicitly says neutral required. The wiring requirement must be confirmed before specifying or ordering.

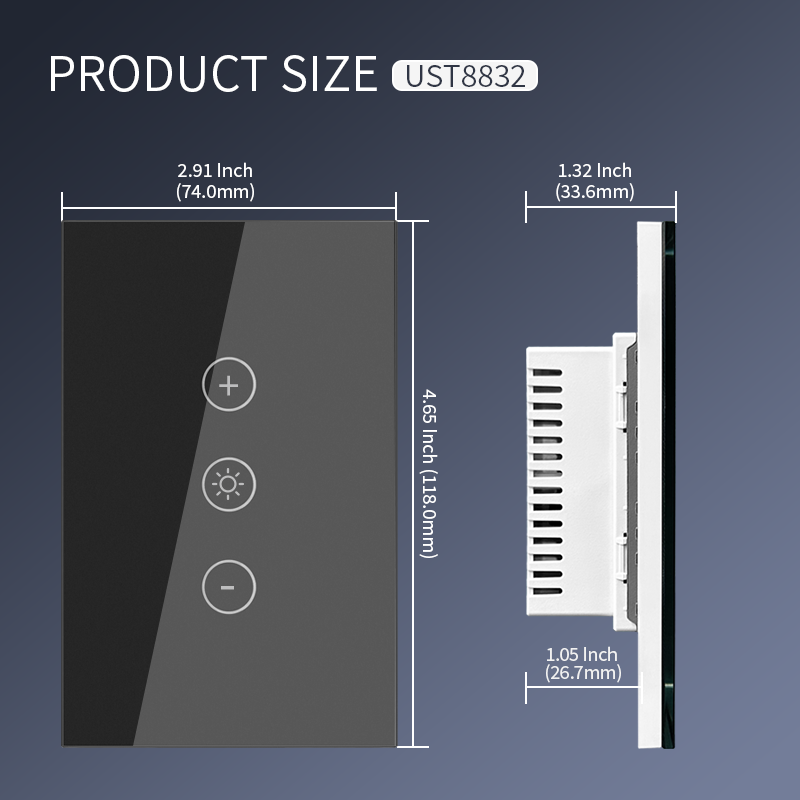

- The catalogue dimension sheet includes different rear housing and base versions. Confirm the exact body drawing and wall-box compatibility for the ordered model; a shared face format does not establish an identical rear housing.
- This is a touch-only control, not a Wi-Fi or Zigbee model. App, voice and remote-control features are not claimed for this configuration.
Technical Parameters
| Model | UST8832 |
|---|---|
| Available finishes | Black / White / Grey / Gold |
| Face format | US glass panel |
| Control mode | Touch only |
| Function | Dimming |
| Operating voltage | 110–240V AC · 50/60Hz (catalogue; confirm supplied version) |
| Published load | Confirm model-specific lamp / motor load |
| Face material | Tempered glass |
| Available face colors | White · Black · Gold · Grey |
| Wiring requirement | Source conflict — confirm wiring |
| Source model designation | UST8832 |
