Model EUZ8835
EU Heater control · Zigbee + touch
EUZ8835: heater control in a EU-format glass touch panel. Zigbee + touch; neutral required (n + l). 90–250V AC · 50/60Hz.
Sample-stage model in the source library. Confirm production availability and final specifications.
Model-specific documentation available on request
- EUZ8835: heater control in a EU-format glass touch panel. Zigbee + touch; neutral required (n + l). 90–250V AC · 50/60Hz.
- Function: Heater control
- Zigbee control requires a compatible gateway.
- Product catalogue · page 23
- Product catalogue · page 24
- Dimensions & wiring reference 1
- Dimensions & wiring reference 2
No matching certificate PDF for EUZ8835 is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
Specification notes
- The catalogue gives a 300W/gang rating for this functional control. Confirm the compatible lamp, motor or heater type and its starting load before specification.

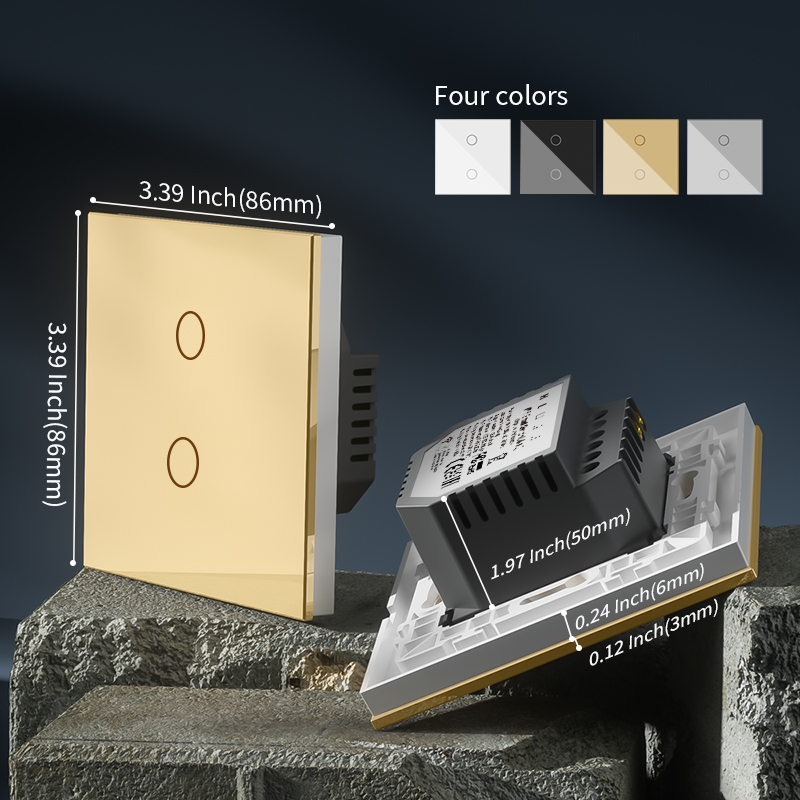

- The catalogue dimension sheet includes different rear housing and base versions. Confirm the exact body drawing and wall-box compatibility for the ordered model; a shared face format does not establish an identical rear housing.
- The supplied product library marks this neutral-required Zigbee range as sample-stage. Confirm availability and approved specifications before ordering.
Technical Parameters
| Model | EUZ8835 |
|---|---|
| Available finishes | Black / White / Gold / Grey |
| Face format | EU glass panel |
| Control mode | Zigbee + touch |
| Function | Heater control |
| Operating voltage | 90–250V AC · 50/60Hz |
| Published load | 300W / gang (catalogue rating) |

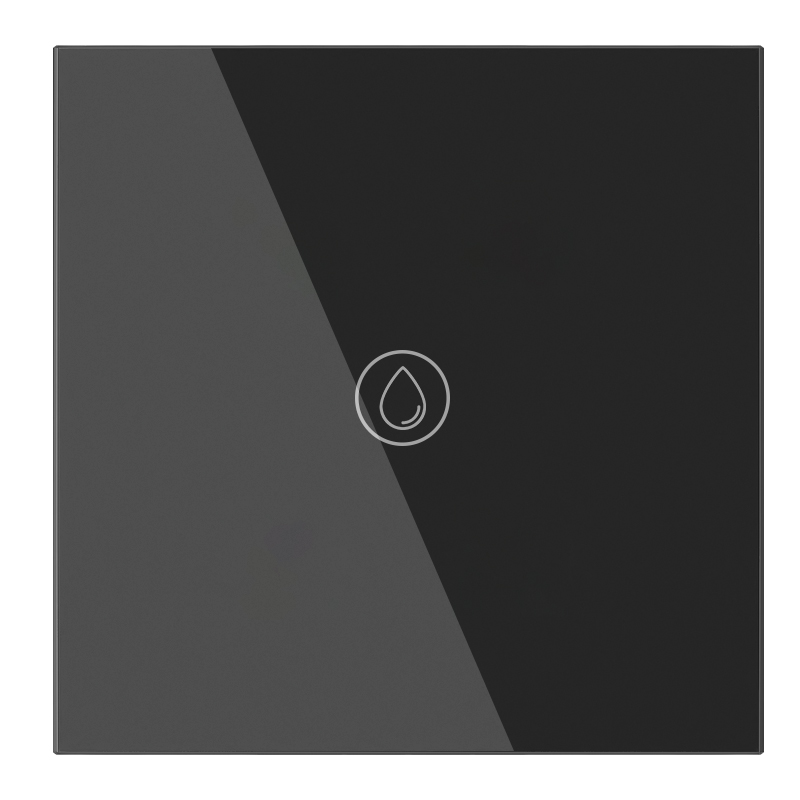

| Face material | Tempered glass |
| Available face colors | White · Black · Gold · Grey |
| Program status | Sample-stage reference — confirm production availability |

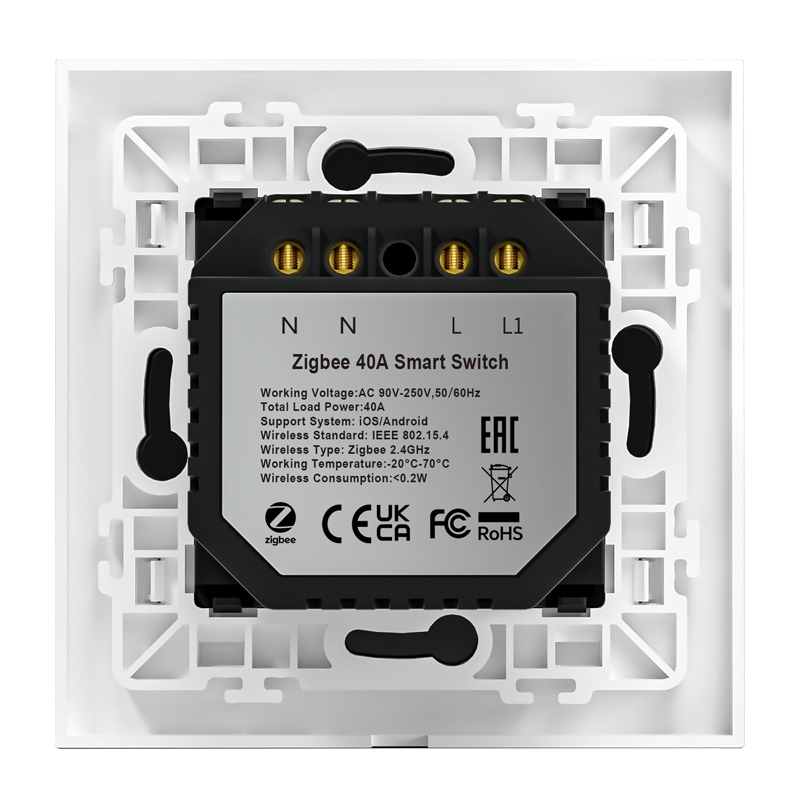

| Wiring requirement | Neutral required (N + L) |
| Source model designation | EUZ8835 |
