Model EUZ8831C
EU 3-gang switching · Zigbee + touch
EUZ8831C: 3-gang switching in a EU-format glass touch panel. Zigbee + touch; single-live or neutral + live (l / n + l). 160–240V AC · 50/60Hz.
Model-specific documentation available on request
- EUZ8831C: 3-gang switching in a EU-format glass touch panel. Zigbee + touch; single-live or neutral + live (l / n + l). 160–240V AC · 50/60Hz.
- Function: 3-gang switching
- Zigbee control requires a compatible gateway.
- Product catalogue · page 22
- Product catalogue · page 24
- Dimensions & wiring reference 1
- Dimensions & wiring reference 2
No matching certificate PDF for EUZ8831C is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
Specification notes
- The catalogue dimension sheet includes different rear housing and base versions. Confirm the exact body drawing and wall-box compatibility for the ordered model; a shared face format does not establish an identical rear housing.
- The catalogue load figure does not identify every lamp or motor load type. Confirm the permitted load, minimum load and any required bypass with the model-specific instructions.
Technical Parameters
| Model | EUZ8831C |
|---|---|
| Available finishes | Black / White / Gold / Grey |
| Face format | EU glass panel |
| Control mode | Zigbee + touch |
| Function | 3-gang switching |
| Operating voltage | 160–240V AC · 50/60Hz |
| Published load | 600W / gang |
| Face material | Tempered glass |
| Available face colors | White · Black · Gold · Grey |
| Number of switched gangs | 3 |

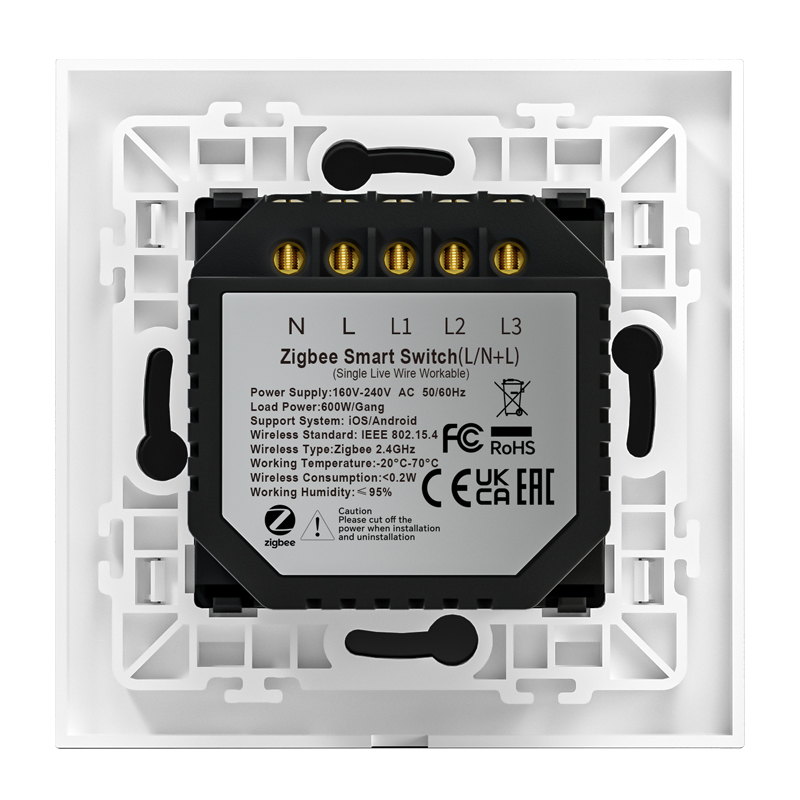

| Wiring requirement | Single-live or neutral + live (L / N + L) |
| Source model designation | EUZ8831C |
