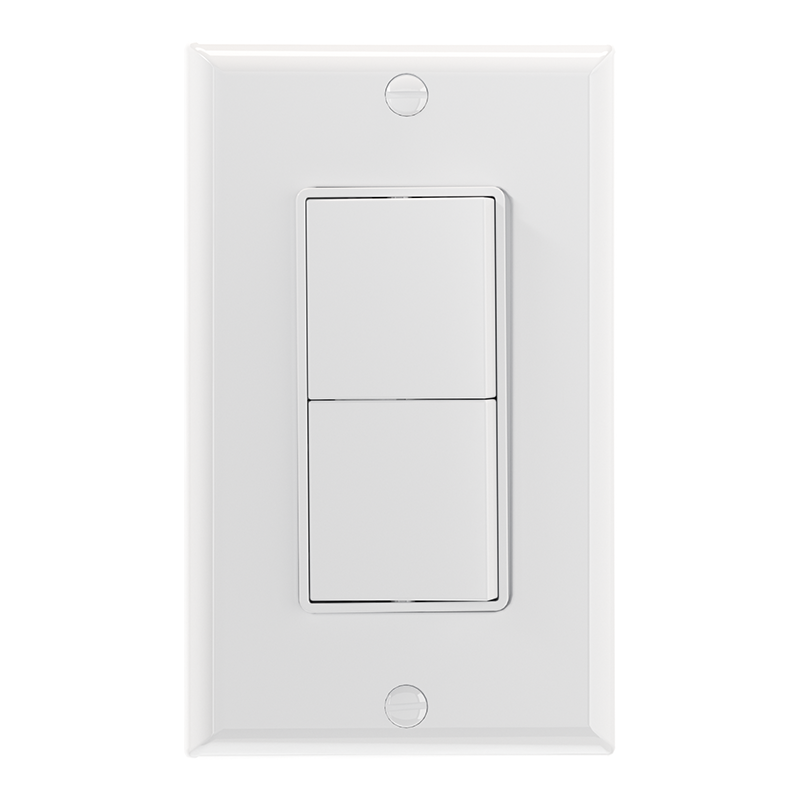

Model DS1502
15A Double Paddle Combination Switch
Double-rocker combination light switch rated 15A 120/277V AC. 2 single-pole rockers control with back wire & side wire.
ETL · file E5033770

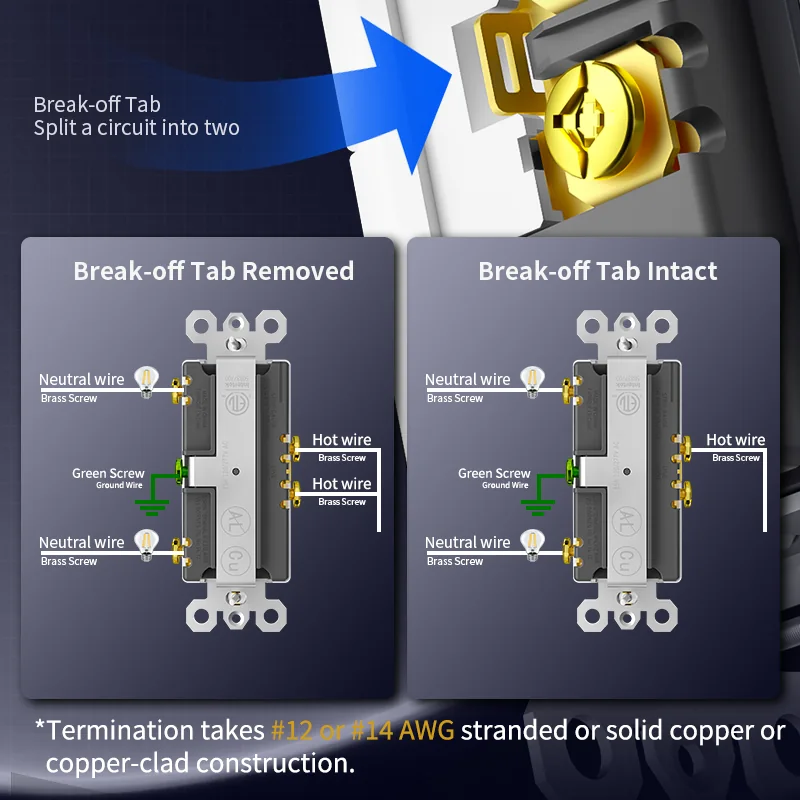

- Break-off tab for circuit splitting.
- Two independent rocker paddles control separate loads in one wall plate.
- Certification reference: ETL · file E5033770. The certificate for this exact model is not yet published here. Request it before specifying the product. Dedicated green grounding screw for installation.
- SPEC GRADE Durability: Commercial-grade construction for reliable, long-lasting performance in residential and commercial spaces.
- Sleek Glossy Finish: Modern glossy design complements any decor, with a smooth, easy-to-clean surface that resists fingerprints, keeping your switch looking pristine for years.
- Warranty: 3 years limited
No matching certificate PDF for DS1502 is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
Specification notes
- This is a multi-rocker combination switch in a single-gang device opening, not a two- or three-gang wall plate. The original model page identifies ETL certification; a UL certificate for another switch must not be substituted.
Technical Parameters
| Model | DS1502 |
|---|---|
| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Feature | Rocker Switch |
| Terminal accommodation | #12 and #14 AWG stranded and copper wire |
| Device rating | 15A 120/277V AC |
| Mounting type | Wall Mount |

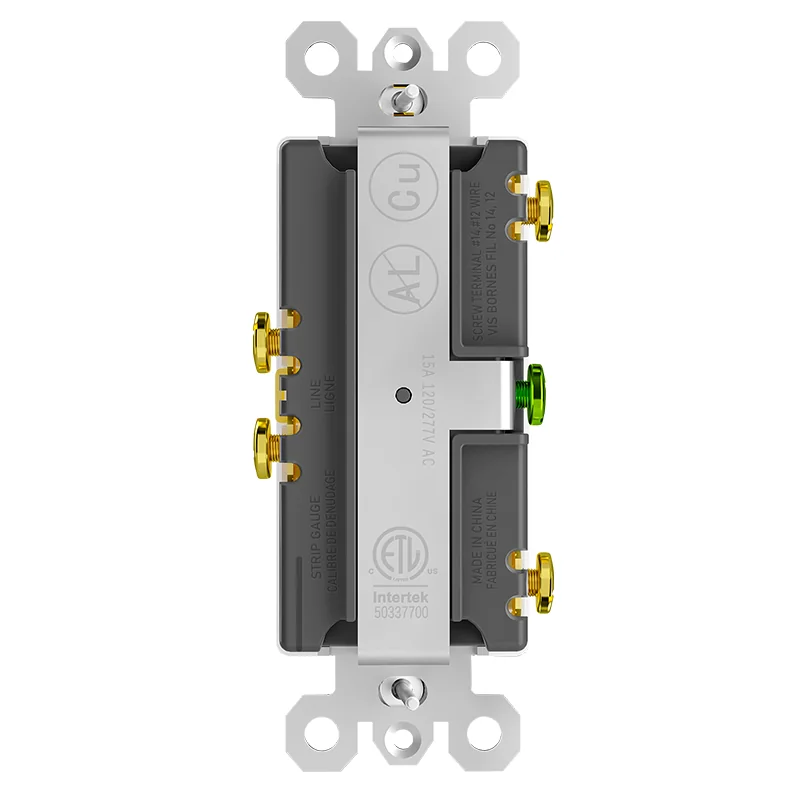

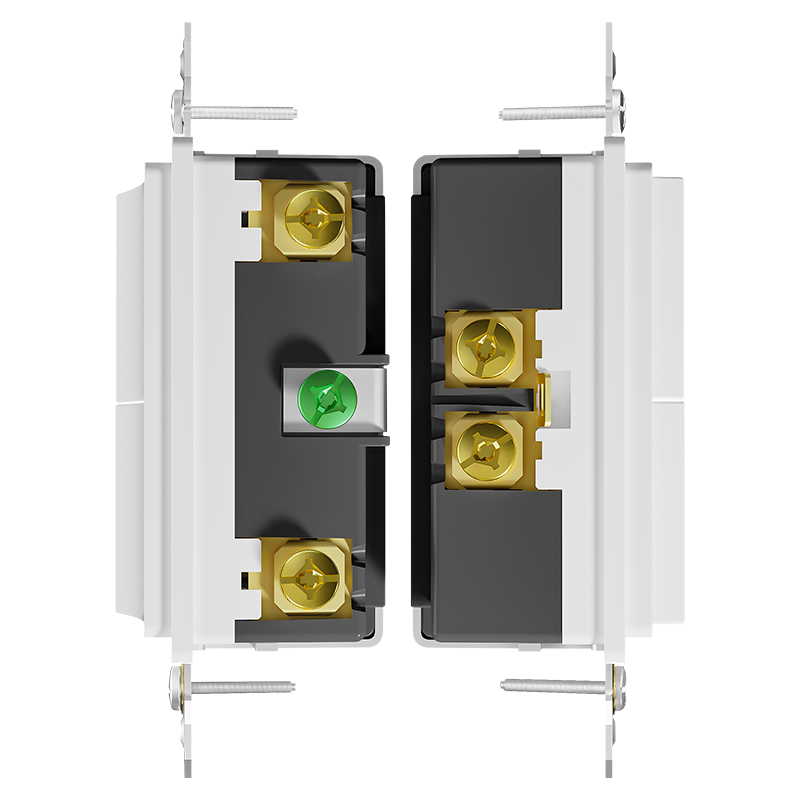

| Wiring method | Back Wire & Side Wire |
| Pole & wire | Single Pole, 3 Wire |
| Grounding | Self-Grounding with Extend Cooper Clip |
| Source model designation | DS1502 |
| Published certification | ETL |
| Certification file | E5033770 |
| Application grade | Residential & Commercial |
| Warranty | 3 years limited |
| Front Cover/Body | High-Impact PC-Thermoplastic |
| Operation Temperature | -35 °C~ 70 °C |
| Environmental | Flammability UL-94 V2 Rating |
| Yoke | Zinc-Plated Steel 1.2mm Thick |
| Clamps | Phosphor Bronze 0.8mm Thick |
| Terminal Screws | Plated Steel |
