Model T15
15A Single-Pole Toggle Switch
Single-Pole Toggle Switch rated 15A 125V AC 60Hz. Single pole control with push-in quick wire(#14 awg only) & side wire.
UL/CUL · file E528137
- Rated for 15A 125V AC 60Hz residential and commercial lighting circuits; match the ordered model to the circuit.
- Supplied UL / cUL documentation: file E528137, report E528137-20241016 (October 18, 2024); confirm current coverage for the ordered model.
- Easy installation and rework: Push-in Quick Wire(#14 AWG only) & Side Wire; fits matching standard wall boxes. Use the conductor and terminal requirements in the approved instructions.
- Single-Pole Toggle Design: Classic single-pole construction for one-location control of lights, fans, and other 120V AC loads.
- Durable, Long-Lasting Build: Sturdy metal mounting yoke and impact-resistant plastic housing for secure wall box installation and extended service life.
- Warranty: 3 years limited
- Model certificate
- Product catalogue · page 25

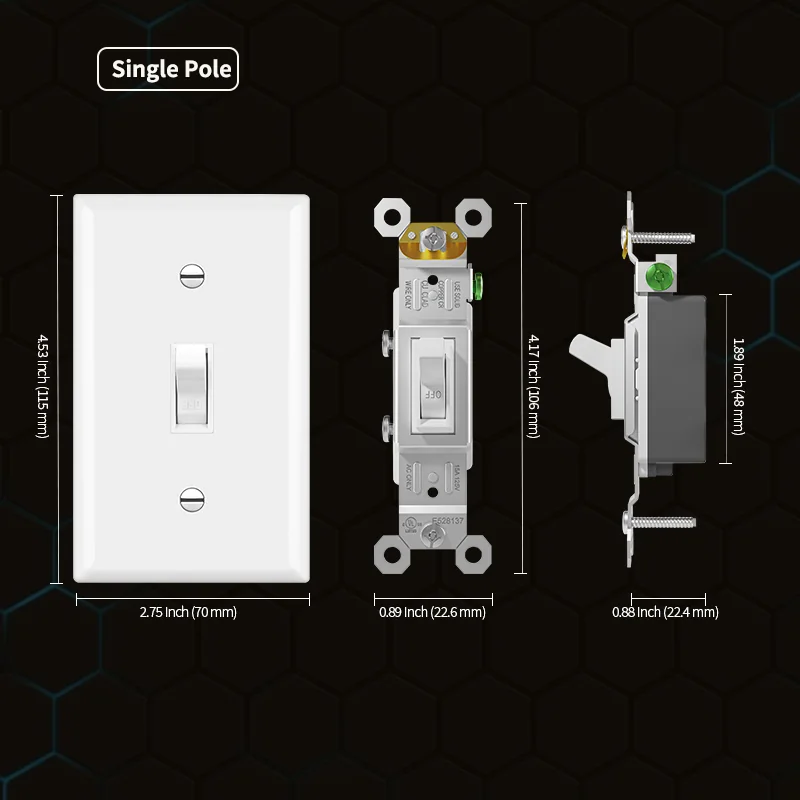

- Dimensions & wiring reference 1

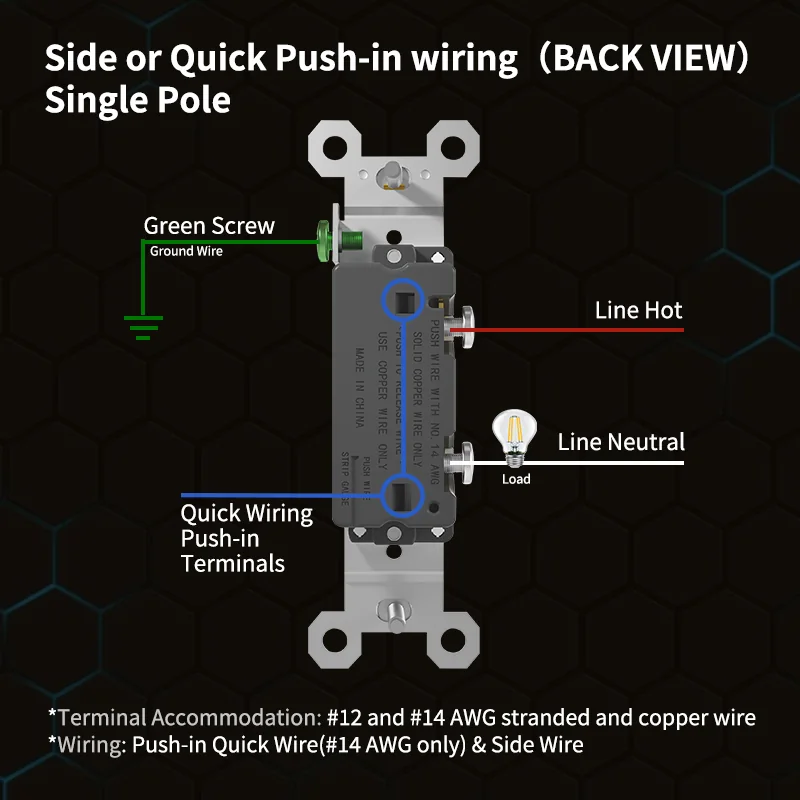

- Dimensions & wiring reference 2
Supplied certificate · E528137 · E528137-20241016 · issued October 18, 2024. Model addenda: PDF pages 2, 4. Confirm current coverage for the selected model.
T15 is named in the supplied October 18, 2024 addendum (report E528137-20241016). Confirm current coverage for the ordered configuration.
Browse product resources Request model-specific documentsTechnical Parameters
| Model | T15 |
|---|---|
| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Feature | Toggle Switch |
| Terminal accommodation | #12 and #14 AWG stranded and copper wire |
| Device rating | 15A 125V AC 60Hz |
| Mounting type | Wall Mount |
| Terminal identification | Terminal identification in accordance with UL20 |
| Flammability | UL20 Minimum Rating |
| Wiring method | Push-in Quick Wire(#14 AWG only) & Side Wire |
| Pole & wire | Single Pole, 3 Wire |
| Grounding | Self-Grounding with Extend Cooper Clip |
| Source model designation | T15 |
| Published certification | UL/CUL |
| Certification file | E528137 |
| Application grade | Residential & Commercial |
| Warranty | 3 years limited |
| Front Cover/Body | High-Impact PC-Thermoplastic |
| Operation Temperature | -35 °C~ 70 °C |
| Environmental | Flammability UL-94 V2 Rating |
| Yoke | Zinc-Plated Steel 1.2mm Thick |
| Clamps | Phosphor Bronze 0.8mm Thick |
| Terminal Screws | Plated Steel |
