Model BS1807
1-Gang Glossy Blank Wall Plate
Glossy blank wall plate with screw-fixed presentation. 2.75 in (70mm) wide × 4.52 in (115mm) high.
UL/cUL CSA · file E501377
- Supplied base-model UL / cUL documentation: file E501377, report E501377-20230919 (September 25, 2023); confirm current coverage and the ordered finish designation. Confirm the material's insulation and flame-retardancy requirements against the model test documentation.
- Premium glossy Finish: Smooth bright glossy surface, scratch-resistant, matches most home wall decor perfectly.
- Wall-box fit: 1-gang model, 2.75 in (70mm) × 4.52 in (115mm); match the opening and mounting arrangement.
- Blank cover for unused junction boxes.
- Quick installation: Matching mounting screws for this screw-fixed plate; direct mounting to a compatible junction box.
- Warranty: 3 years limited
Supplied certificate · E501377 · E501377-20230919 · issued September 25, 2023. Model addenda: PDF pages 2, 4. Confirm current coverage for the selected model.
The base model for BS1807 appears in report E501377-20230919, issued September 25, 2023. Confirm the finish designation and current coverage for the ordered configuration.
Specification notes
- Dimensions and weight follow this exact model’s legacy specification table and drawing. Do not substitute the dimensions of a screw-fixed plate for the screwless version.
Technical Parameters
| Model | BS1807 |
|---|---|

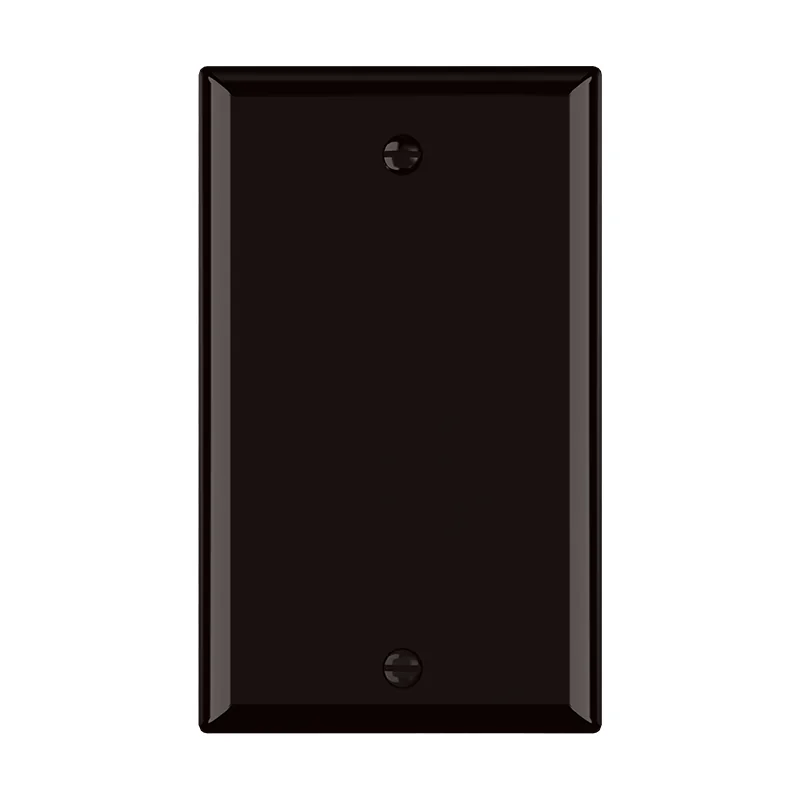

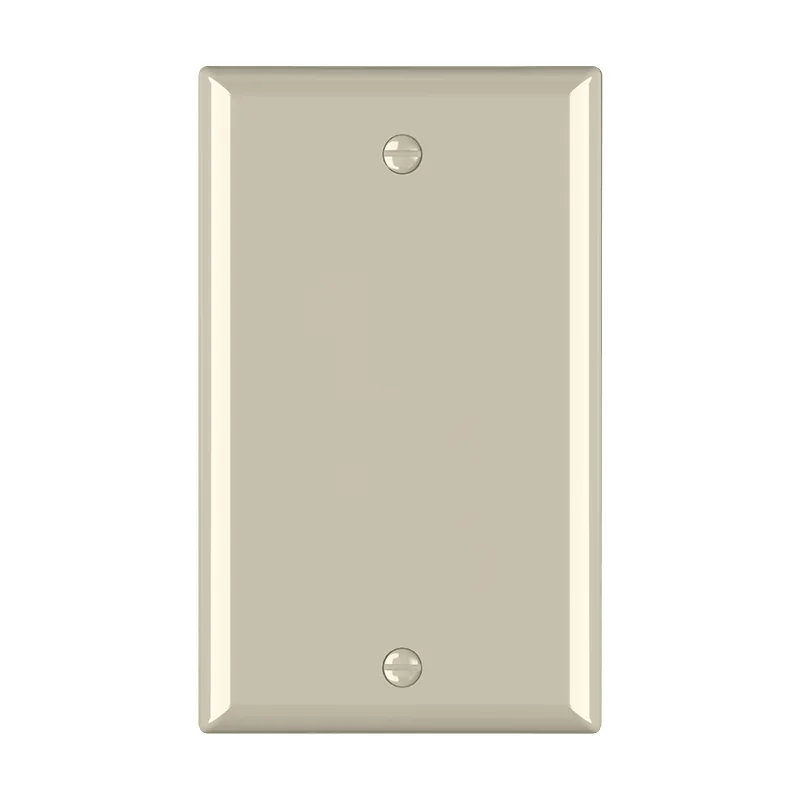

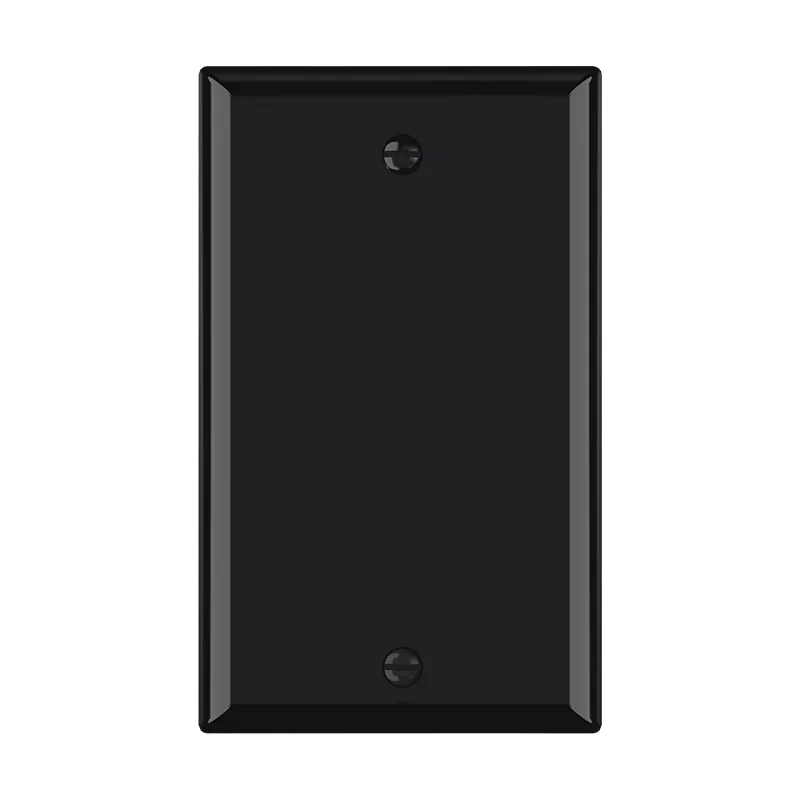

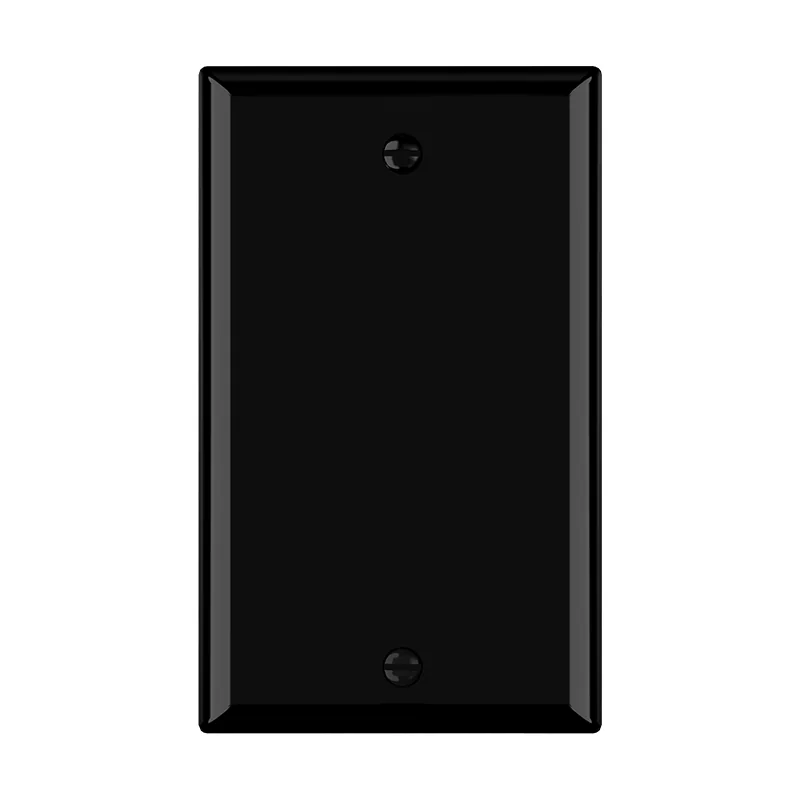

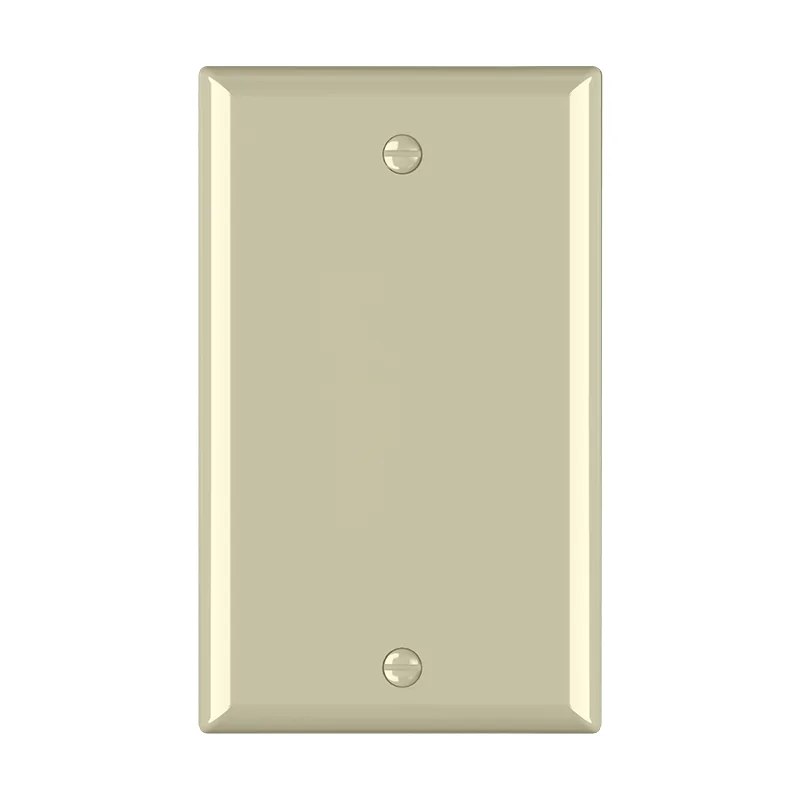

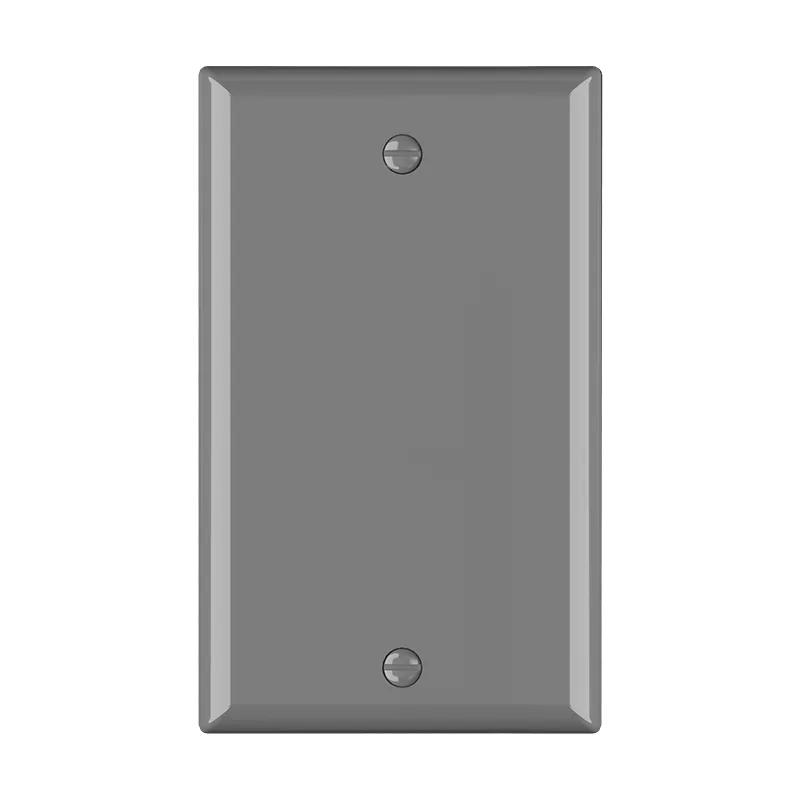

| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Surface finish | Glossy |
| Published construction material | Thermoset Plastic |
| Country of Origin | China |
| Orientation | Vertical |
| Operating Temperature | -35°C to 66°C(-30°F to 150 °F) |
| Number of gangs | 1 |

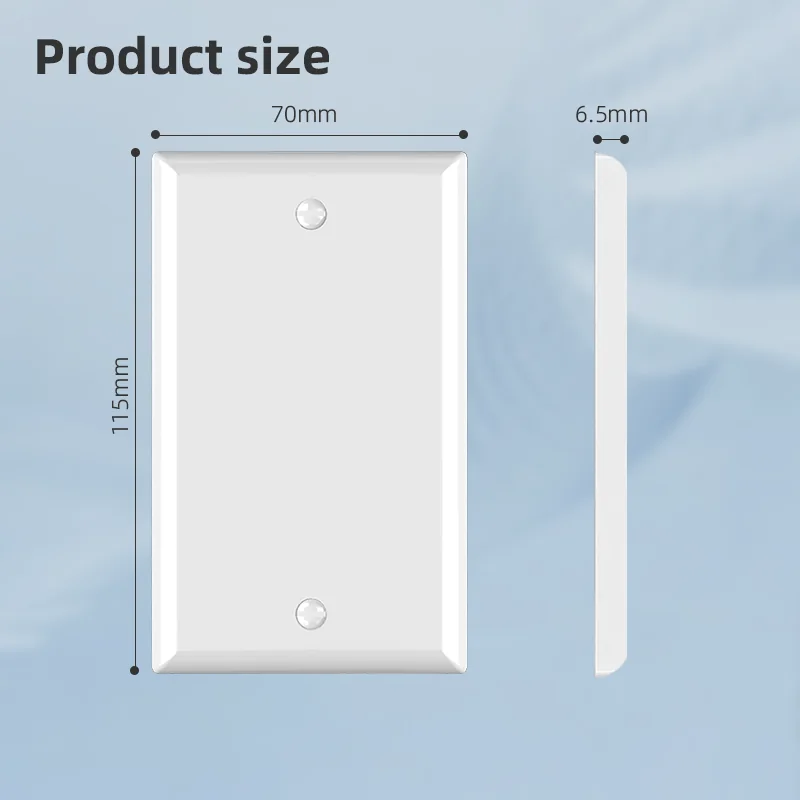

| Product width | 2.75 in (70mm) |
| Product height | 4.52 in (115mm) |
| Thickness | 0.26 in (6.5mm) |
| Weight | 18.7g |
| Source model designation | BS1807 |
| Published certification | UL/cUL CSA |
| Certification file | E501377 |
| Standard | UL 514D cULus RoHS |
| Application | Residential/Commerical |
| Warranty | 3 years limited |
