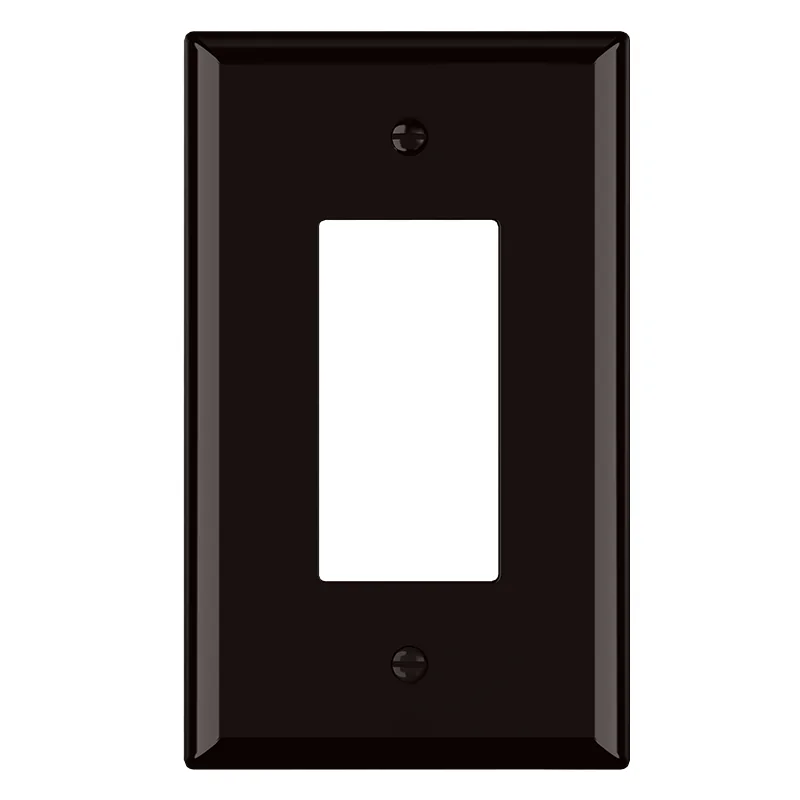

Model BS1802
1-Gang Glossy Mid-Size Decorator Wall Plate
Glossy mid-size decorator wall plate with screw-fixed presentation. 3.15 in (80 mm) wide × 4.88 in (124 mm) high.
UL/cUL CSA · file E501377
- Compatibility: Mid-Size Decorator format for matching switches, receptacles or wall plates; 1-gang configuration, 3.15 in (80 mm) × 4.88 in (124 mm).
- Construction material: Polycarbonate (PC). Request model test data for flame retardancy, impact resistance and fade resistance. Supplied base-model UL / cUL documentation: file E501377, report E501377-20181016 (August 16, 2022); confirm current coverage and the ordered finish designation.
- Smooth High-Gloss Finish: The polished, glossy surface resists fingerprints and is easy to wipe clean. It adds a sleek, modern touch to any wall with no dull spots or uneven sheen.
- Custom Laser Engraved Logo Service: Support custom laser engraving of your brand logo or text directly on the plate surface, perfect for private labeling and brand promotion.
- Cost-Effective Bulk Pricing: Factory direct pricing, perfect for contractors, distributors, and home improvement retailers stocking for renovation or new construction projects.
- Warranty: 3 years limited
- Model certificate
- Product catalogue · page 28
- Product catalogue · page 30

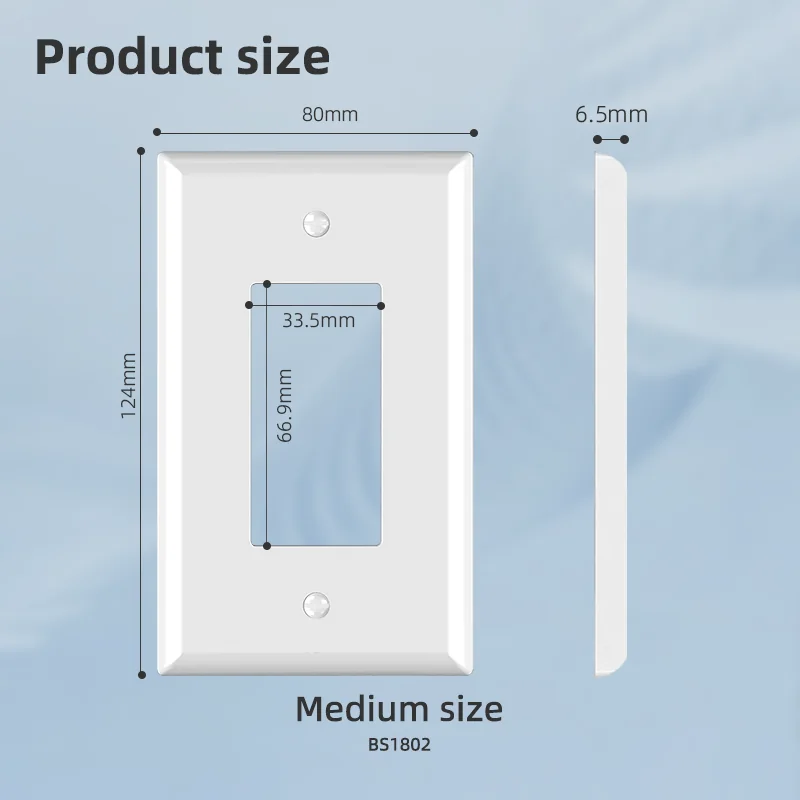

- Dimensions & wiring reference 1
Supplied certificate · E501377 · E501377-20181016 · issued August 16, 2022. Model addenda: PDF pages 2, 4. Confirm current coverage for the selected model.
The base model for BS1802 appears in report E501377-20181016, issued August 16, 2022. Confirm the finish designation and current coverage for the ordered configuration.
Specification notes
- BS1801 is the 70 × 115 mm standard plate (glossy or matte); BS1802 is the 80 × 124 mm medium plate (glossy). Both supplied library drawings show 6.5 mm thickness. They are separate models, not two sizes of BS1802.
- The supplied wallplate material reference identifies polycarbonate (PC). Glossy and matte describe surface finishes, not different resins. Specify the size and finish separately on the order.
Technical Parameters
| Model | BS1802 |
|---|---|

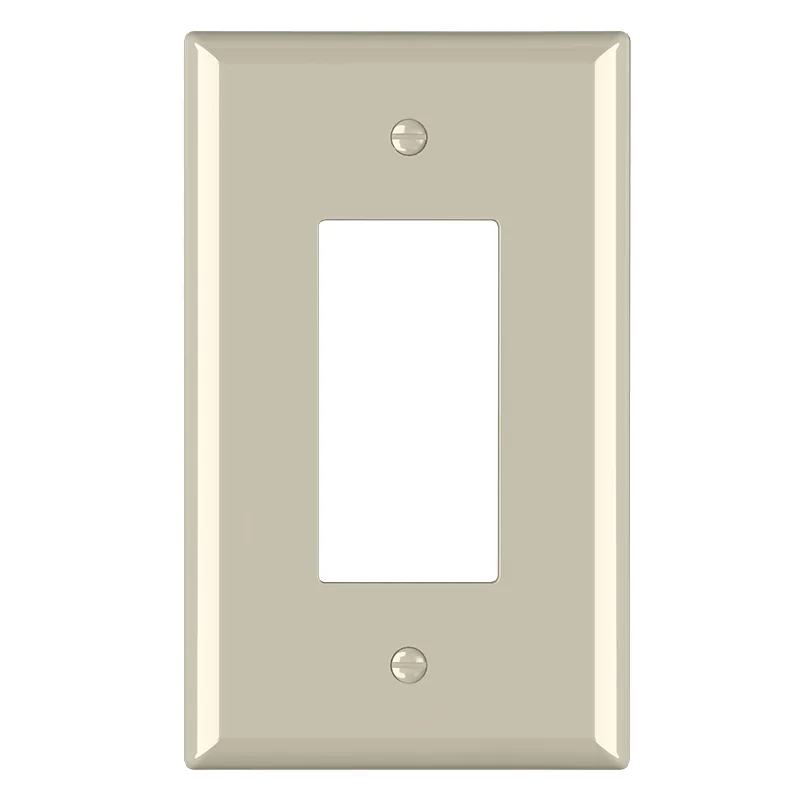

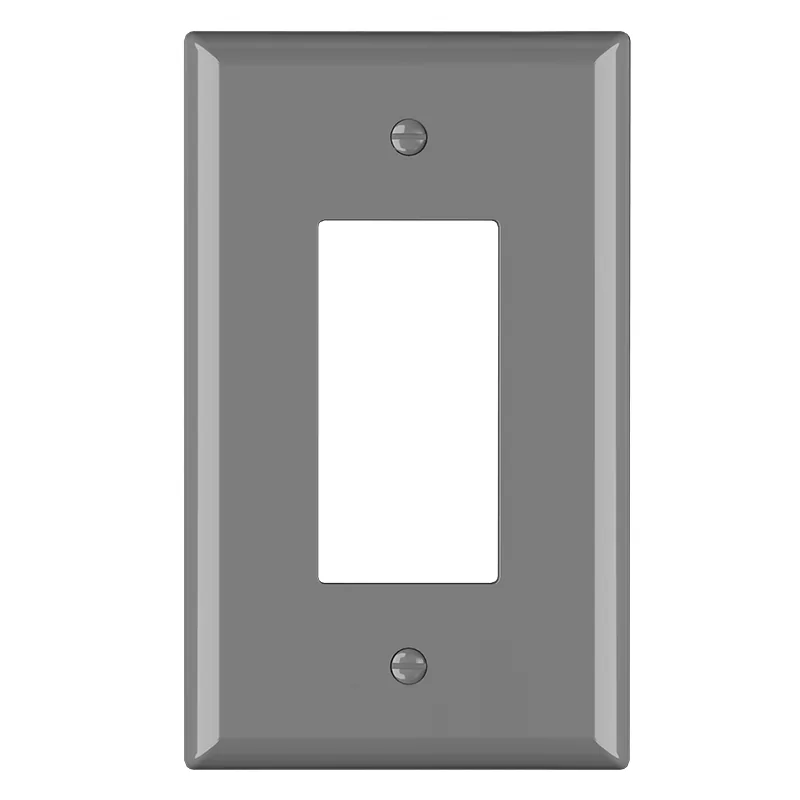

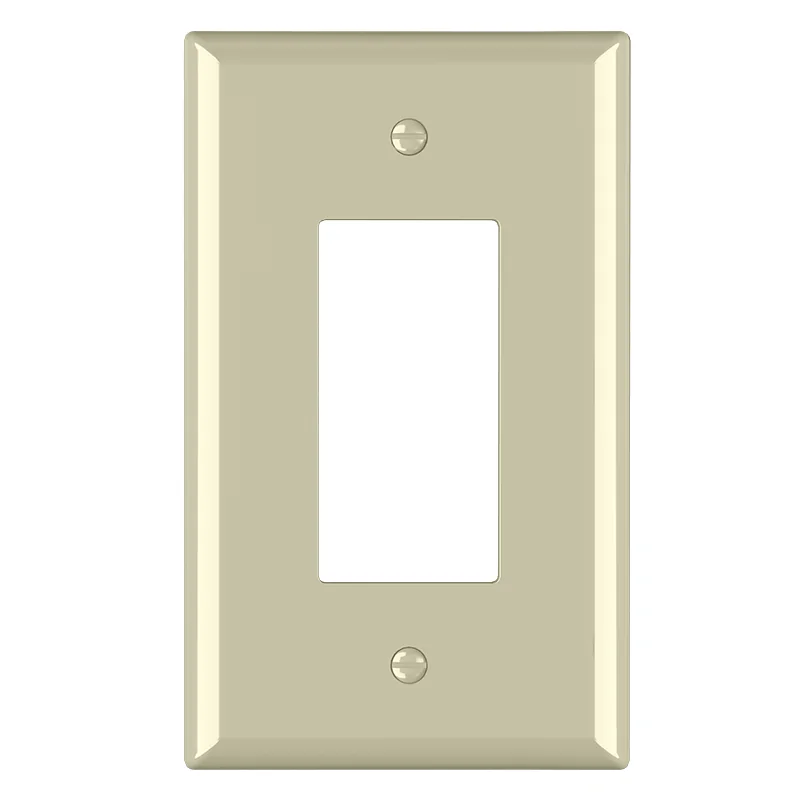

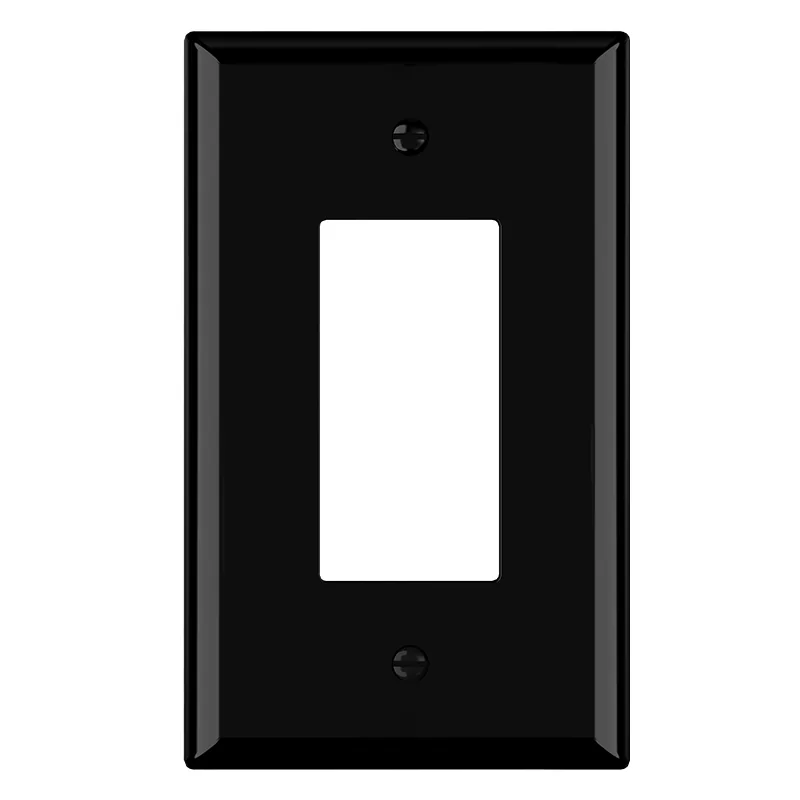

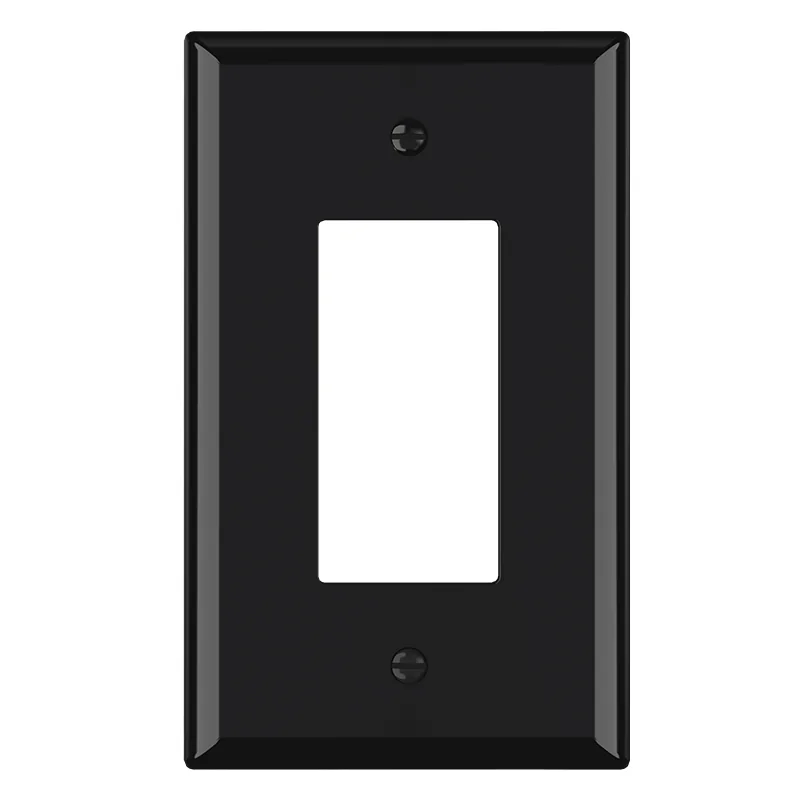

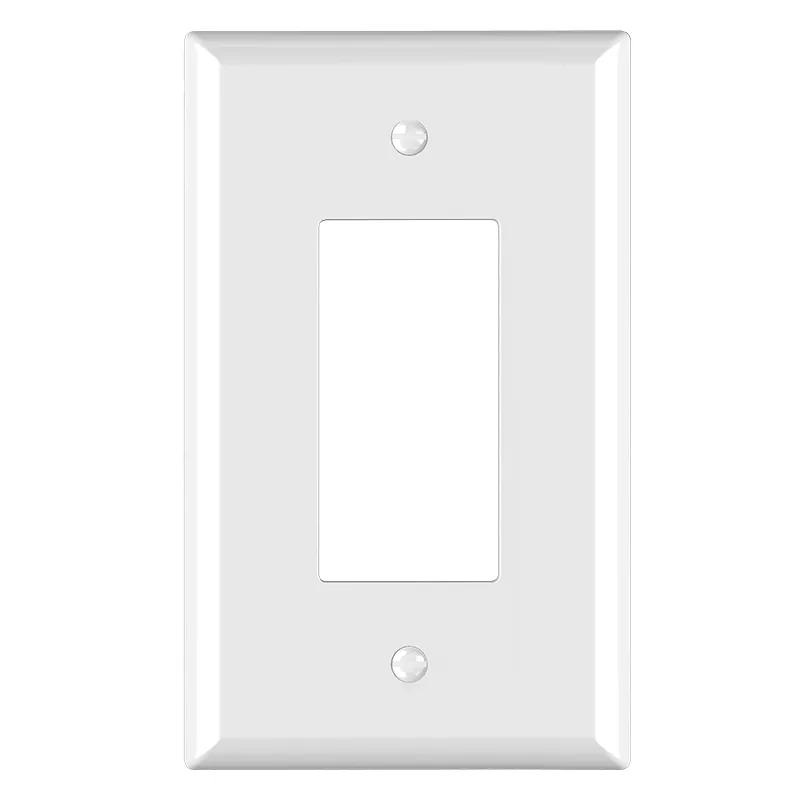

| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Surface finish | Glossy |
| Country of Origin | China |
| Orientation | Vertical |
| Operating Temperature | -35°C to 66°C(-30°F to 150 °F) |
| Material specification | Polycarbonate (PC) |
| Number of gangs | 1 |
| Product width | 3.15 in (80 mm) |
| Product height | 4.88 in (124 mm) |
| Thickness | 0.26 in (6.5mm) |
| Weight | 18.7g |
| Source model designation | BS1802 |
| Published certification | UL/cUL CSA |
| Certification file | E501377 |
| Standard | UL 514D cULus RoHS |
| Application | Residential/Commerical |
| Warranty | 3 years limited |
