Model BS1803-G
1-Gang Glossy Decorator Screwless Wall Plate
Glossy decorator wall plate with screwless presentation. 2.95 in (75mm) wide × 4.72 in (120mm) high.
UL/cUL CSA · file E501377
- Supplied base-model UL / cUL documentation: file E501377, report E501377-20181016 (August 16, 2022); confirm current coverage and the ordered finish designation. Confirm the material's insulation and flame-retardancy requirements against the model test documentation.
- Construction material: Thermoset Plastic. Request model test data for flame retardancy, impact resistance and shatter resistance.
- glossy Smooth Finish: Bright polished high-gloss surface, stain-resistant, easy to wipe clean, perfectly matches modern minimalist home decor and wall aesthetics.
- Custom Laser Engravable Surface: Special smooth blank face supports laser engraving, easy to print custom logos, names, texts or patterns for personalized branding & identification.
- Oversized Design For Better Coverage: Features an enlarged oversized dimension to perfectly cover gaps, uneven wall marks, old holes and imperfections, easily hiding messy blemishes for a neat, clean finished look.
- Warranty: 3 years limited
- Model certificate
- Product catalogue · page 28

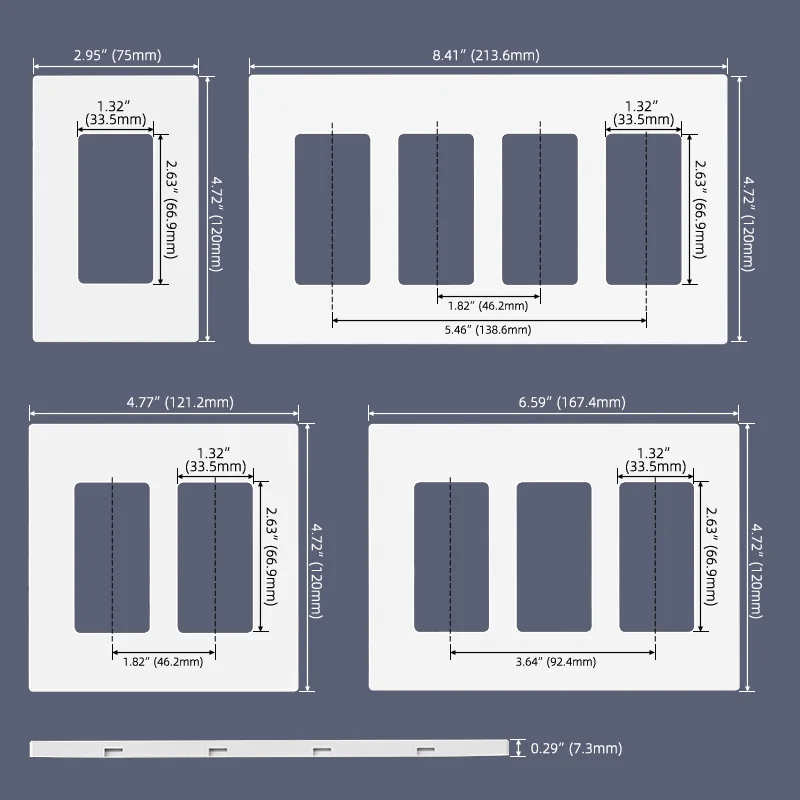

- Dimensions & wiring reference 1
- Dimensions & wiring reference 2
Supplied certificate · E501377 · E501377-20181016 · issued August 16, 2022. Model addenda: PDF pages 2, 4. Confirm current coverage for the selected model.
The base model for BS1803-G appears in report E501377-20181016, issued August 16, 2022. Confirm the finish designation and current coverage for the ordered configuration.
Specification notes
- Dimensions and weight follow this exact model’s legacy specification table and drawing. Do not substitute the dimensions of a screw-fixed plate for the screwless version.
Technical Parameters
| Model | BS1803-G |
|---|---|

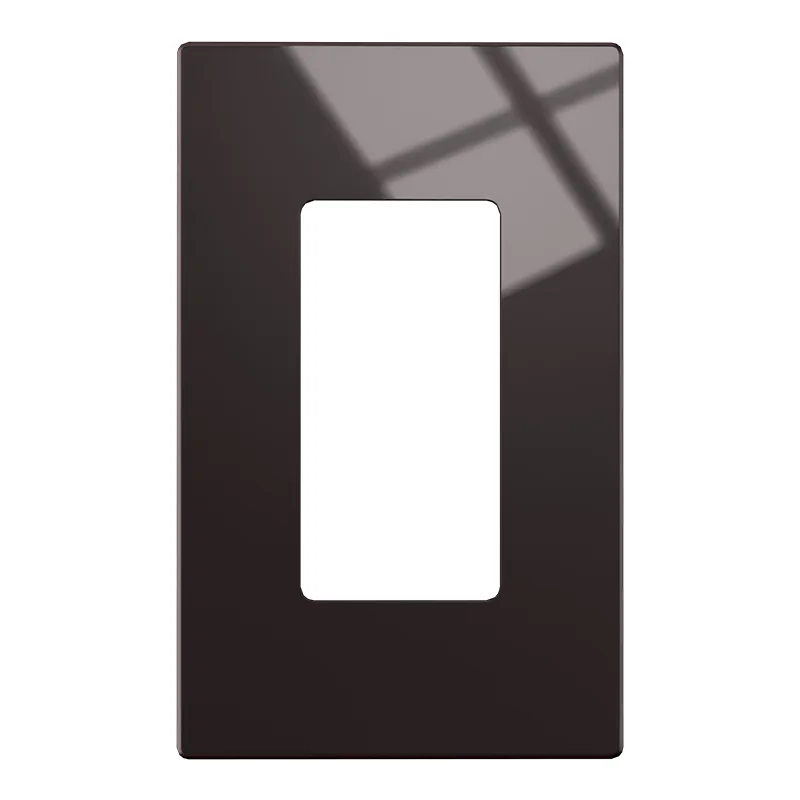

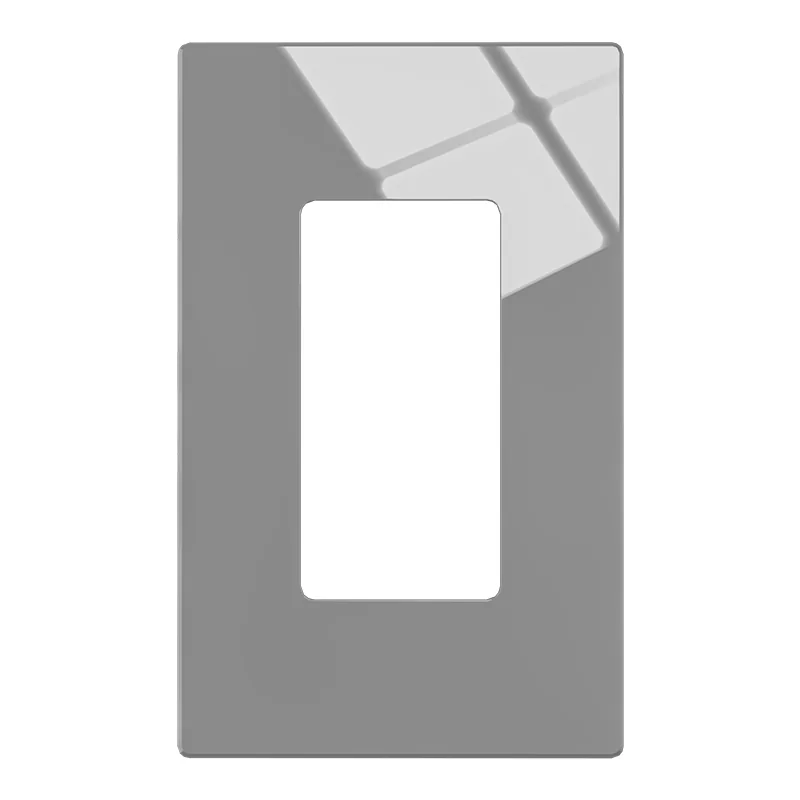

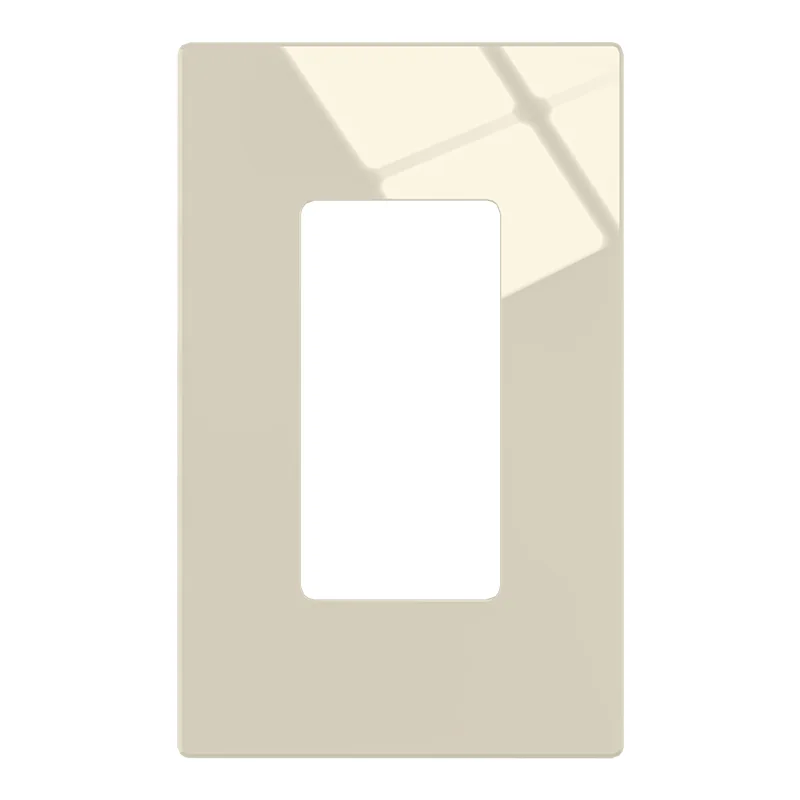

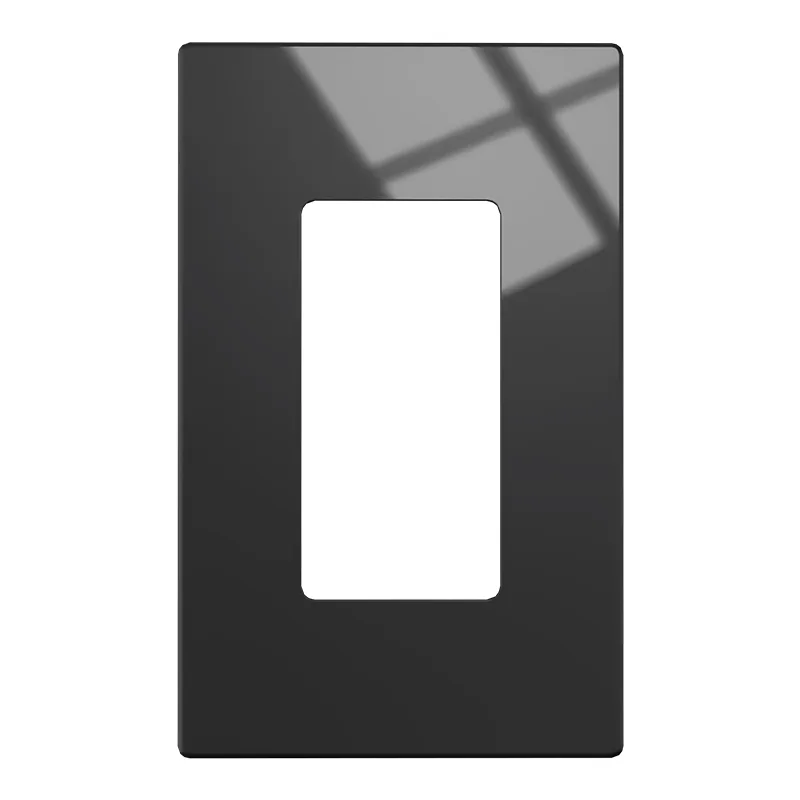

| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Surface finish | Glossy |
| Published construction material | Thermoset Plastic |
| Country of Origin | China |
| Orientation | Vertical |
| Operating Temperature | -35°C to 66°C(-30°F to 150 °F) |
| Number of gangs | 1 |
| Product width | 2.95 in (75mm) |
| Product height | 4.72 in (120mm) |
| Thickness | 0.29 in (7.3mm) |
| Weight | 35.2g |
| Source model designation | BS1803 G |
| Published certification | UL/cUL CSA |
| Certification file | E501377 |
| Standard | UL 514D cULus RoHS |
| Application | Residential/Commerical |
| Warranty | 3 years limited |
