Model BS18012-M
2-Gang Matte Decorator Wall Plate
Matte decorator wall plate with screw-fixed presentation. 4.56 in (116mm) wide × 4.52 in (115mm) high.
UL/cUL CSA · file E501377
- Compatibility: Decorator format for matching switches, receptacles or wall plates; 2-gang configuration, 4.56 in (116mm) × 4.52 in (115mm).
- Construction material: Thermoset Plastic. Request model test data for flame retardancy, impact resistance and fade resistance. Supplied base-model UL / cUL documentation: file E501377, report E501377-20230919 (September 25, 2023); confirm current coverage and the ordered finish designation.
- Smooth matte Finish: Elegant matte surface that resists fingerprints and scratches, easy-to-clean, providing a low-key and modern appearance for any interior.
- Custom Laser Engraved Logo Service: Support custom laser engraving of your brand logo or text directly on the plate surface, perfect for private labeling and brand promotion.
- Cost-Effective Bulk Pricing: Factory direct pricing, perfect for contractors, distributors, and home improvement retailers stocking for renovation or new construction projects.
- Warranty: 3 years limited
Supplied certificate · E501377 · E501377-20230919 · issued September 25, 2023. Model addenda: PDF pages 2, 4. Confirm current coverage for the selected model.
The base model for BS18012-M appears in report E501377-20230919, issued September 25, 2023. Confirm the finish designation and current coverage for the ordered configuration.
Specification notes
- The -M suffix on this website distinguishes the matte page from the glossy page. The original site uses the same base model designation for both finishes; specify the surface finish on the order.
- Dimensions and weight follow this exact model’s legacy specification table and drawing. Do not substitute the dimensions of a screw-fixed plate for the screwless version.
Technical Parameters
| Model | BS18012-M |
|---|---|

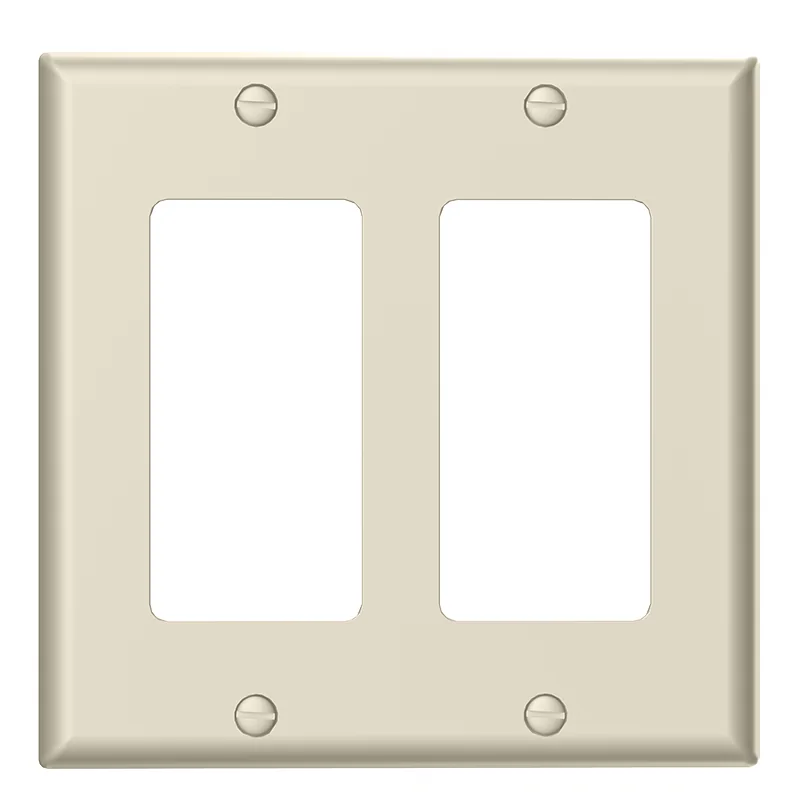

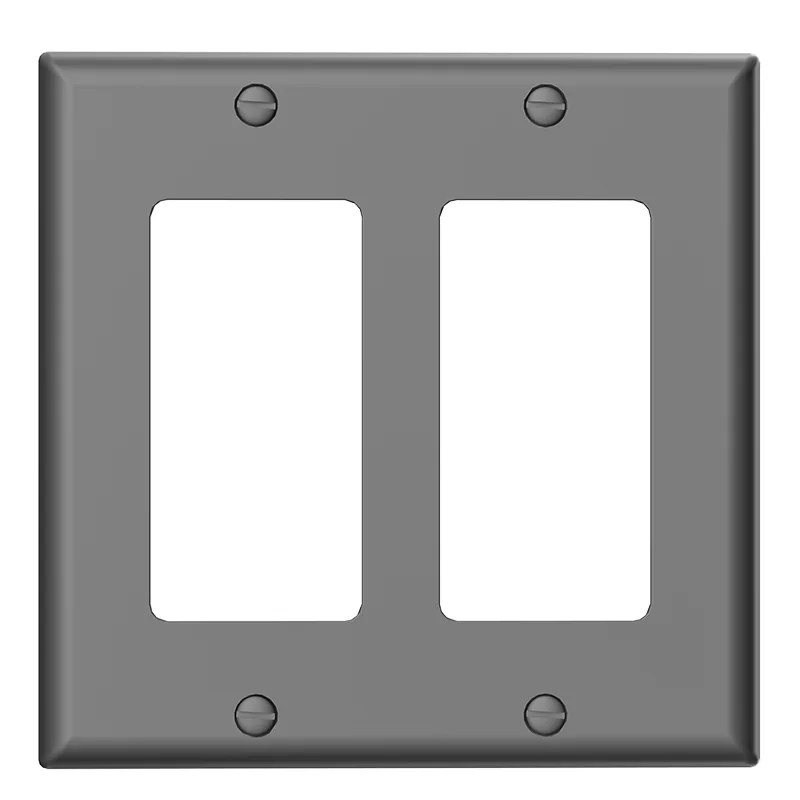

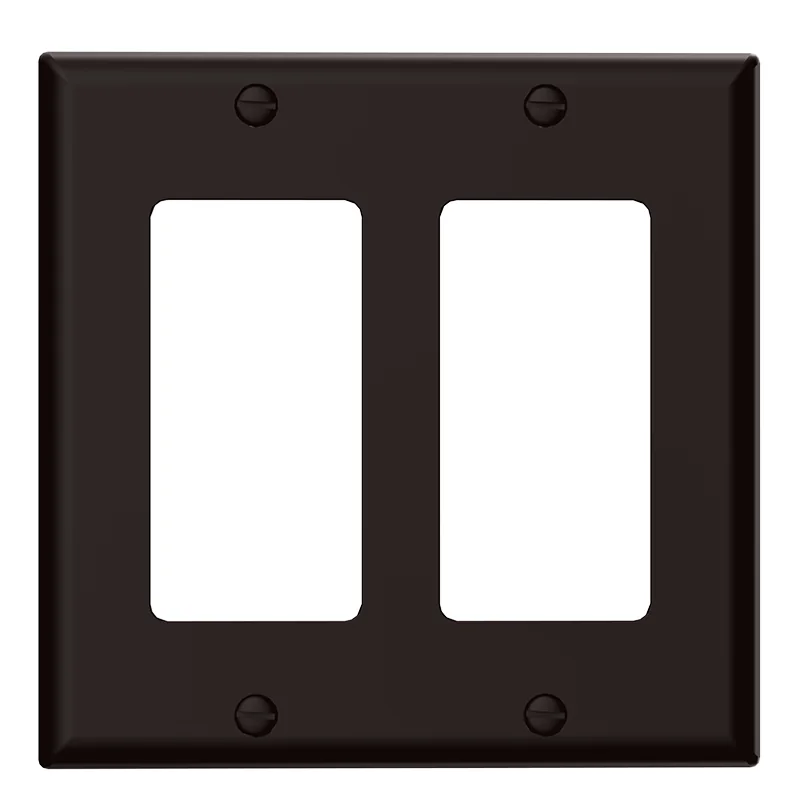

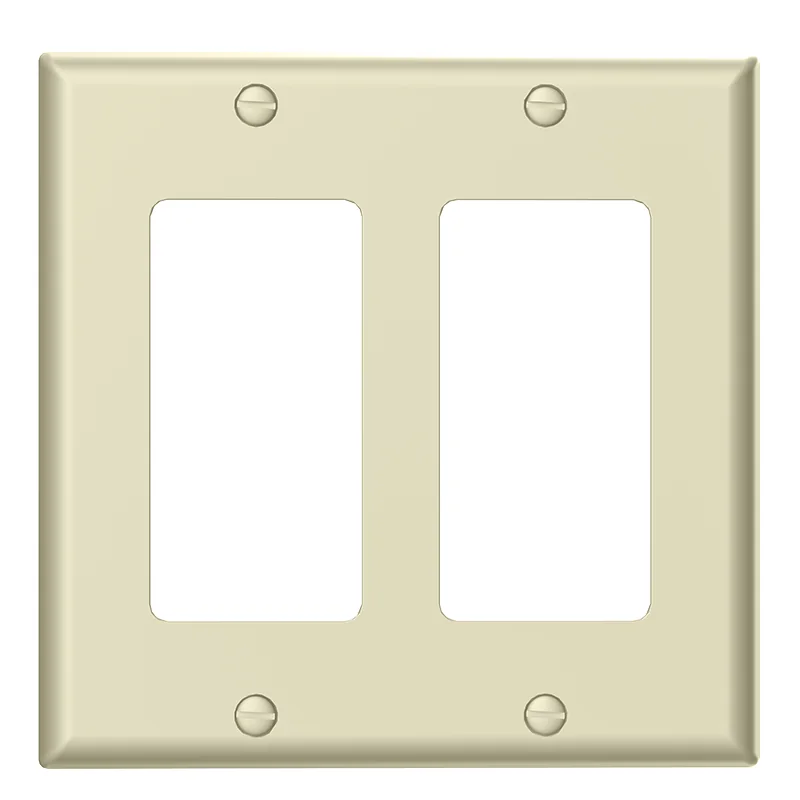

| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Surface finish | Matte |
| Published construction material | Thermoset Plastic |
| Country of Origin | China |
| Orientation | Vertical |
| Operating Temperature | -35°C to 66°C(-30°F to 150 °F) |
| Number of gangs | 2 |

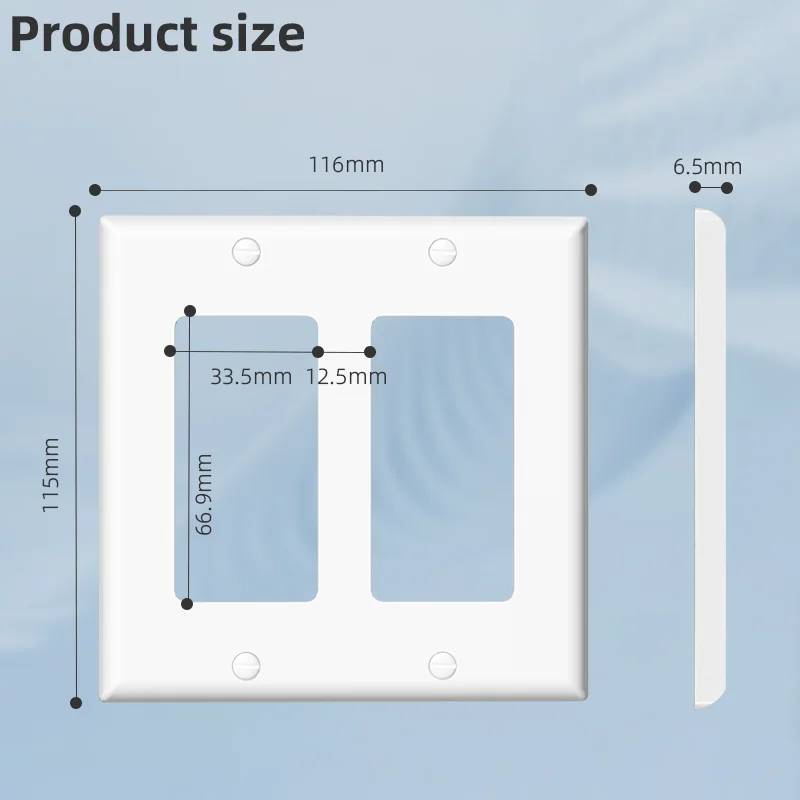

| Product width | 4.56 in (116mm) |
| Product height | 4.52 in (115mm) |
| Thickness | 0.26 in (6.5mm) |
| Weight | 21.3g |
| Source model designation | BS18012 |
| Published certification | UL/cUL CSA |
| Certification file | E501377 |
| Standard | UL 514D cULus RoHS |
| Application | Residential/Commerical |
| Warranty | 3 years limited |
