Model FTR20QC-AC65W
20A USB-A + USB-C Outlet · PD 65W
20A,125V NEMA 5-20R. USB-A + USB-C wall outlet with USB-C Power Delivery up to 65W on one port. Confirm power sharing when both ports are used.
UL/CUL · file E498095
- Certification reference: UL/CUL · file E498095. The certificate for this exact model is not yet published here. Request it before specifying the product.
- Quick charging: USB-C up to 65W single-port maximum; confirm dual-port power sharing for the connected devices and cables.
- Integrated power and USB charging for residential and commercial spaces; match the device rating and protection features to the location.
- Warranty: 3 years
- Built-in smart chip recognizes a connected device’s charging requirements and adjusts the charging output.
- Charge up to two compatible USB devices, leaving the AC outlets free.
- Charging interfaces: USB-A + USB-C; charge compatible phones, tablets and headsets without separate power adapters, using a matching cable and charging profile.
- Built-in protection helps prevent overheating. Tamper-resistant shutters limit access to the receptacle contacts.
- Compact design fits a standard wall box and compatible decorator or screwless wall plates. Wiring: Side Wire & Back Wire. Check the approved model instructions for box clearance and terminal requirements.
- Designed for charging compatible USB devices; match the cable and charging profile to your device.
- Tamper-resistant shutter mechanism blocks access to the contacts unless a two- or three-prong plug is inserted.
No matching certificate PDF for FTR20QC-AC65W is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
Specification notes
- USB-C values are published single-port maximums, not a promise that both ports supply their maximum simultaneously. Output depends on the connected device, cable and negotiated profile; confirm dual-port power sharing before ordering.

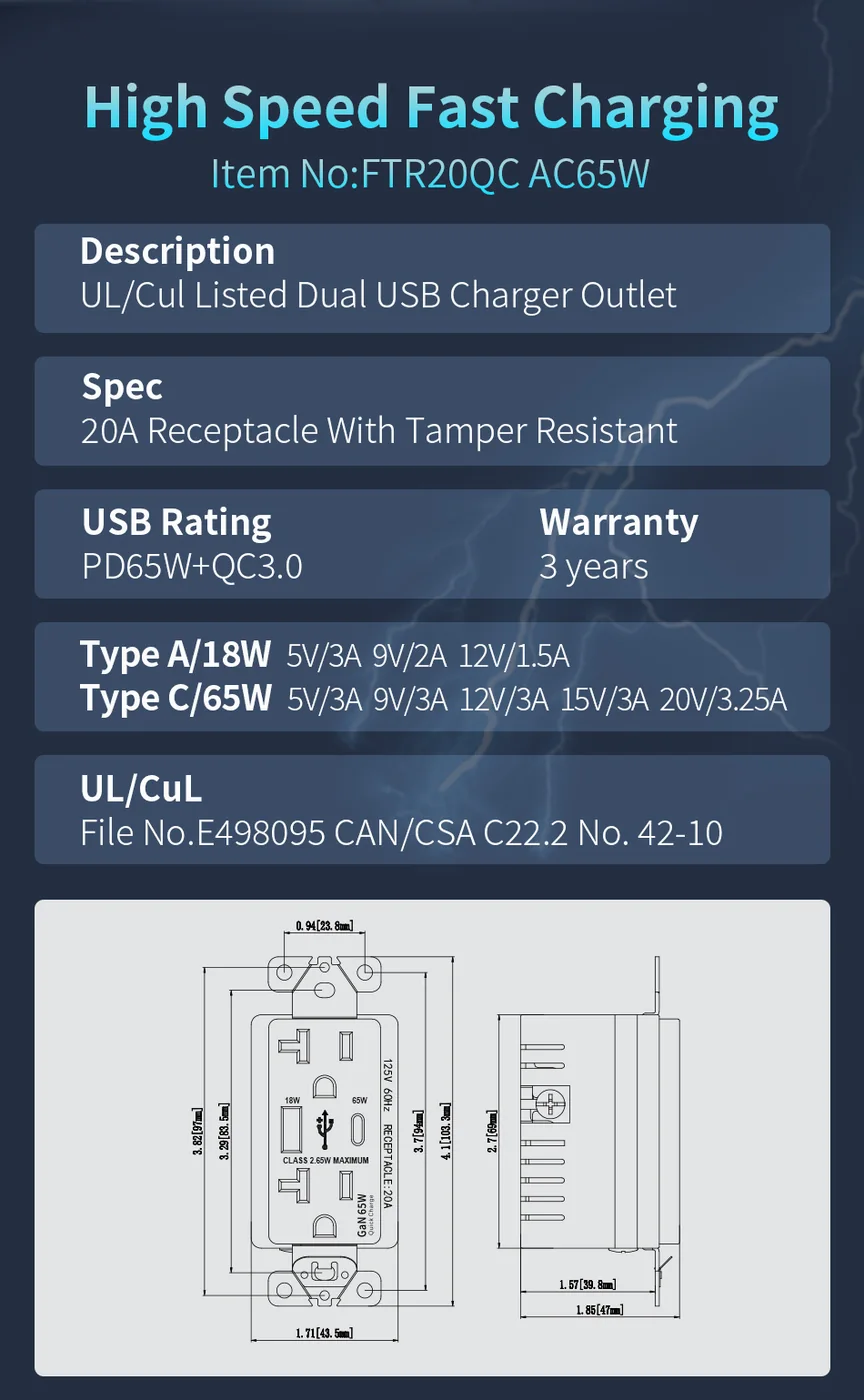

Technical Parameters
| Model | FTR20QC-AC65W |
|---|---|
| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Receptacle rating | 20A,125V NEMA 5-20R |
| USB interfaces | USB A*1 and USB C*1 |
| USB-A port 1 | Up to 18W |
| USB-C port 1 | Up to PD65W |
| Operating temperature | -35°C to 66°C (-30°F to 150°F) |
| USB-C output profiles | 5V / 3A · 9V / 3A · 12V / 3A · 15V / 3A · 20V / 3.25A |
| USB-A output profiles | 5V / 3A · 9V / 2A · 12V / 1.5A (18W max) |
| Wiring method | Side Wire & Back Wire |
| Wire gauge | #12~#14 AWG Copper Wire |
| Pole & wire | 2-Pole, 3-Wire |
| Grounding | Self-Grounding |

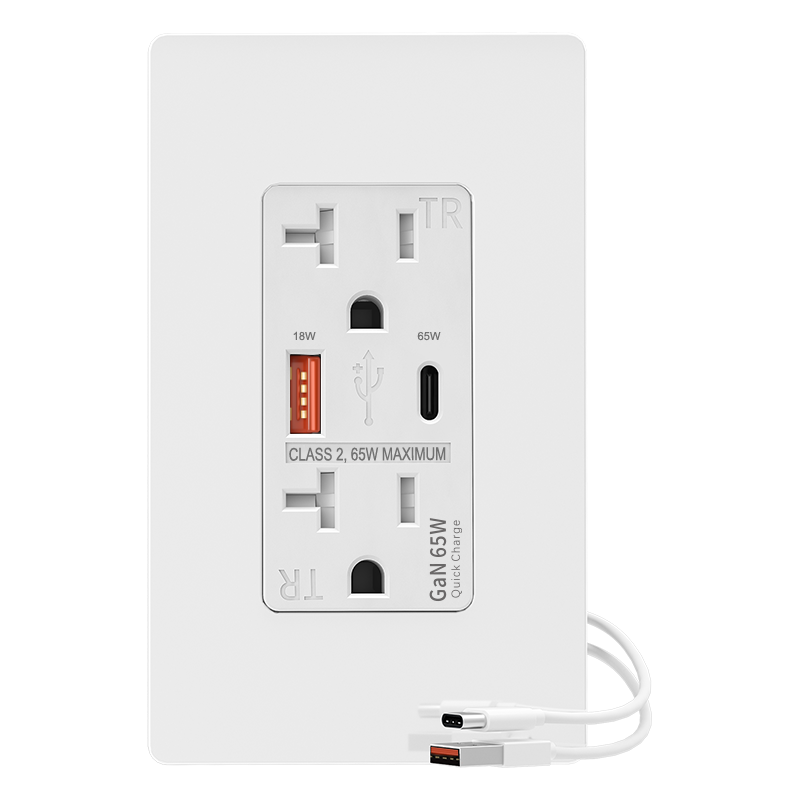

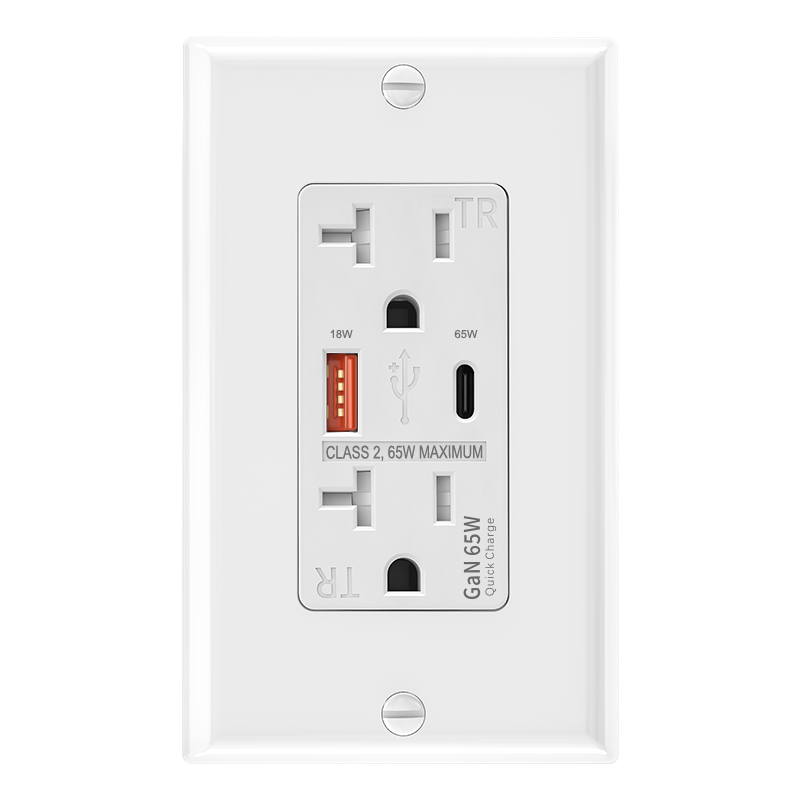

| Wall plate | Standard / Screwless Wallplate Optional |
| Source model designation | FTR20QC PD65W A+C |
| Published certification | UL/CUL |
| Standard | UL498/CSA C22.2 No. 42, 7th Ed |
| Application grade | Residential & Commercial Grade |
| Tamper-resistant | Yes |
| Weather-resistant | No |
| Warranty | 3 years |
| Material | Face, Thermoplastic; Body, Thermoplastic |
| Construction detail 2 | 0.8mm thick high-precision phosphorus bronze |
| Construction detail 3 | 1.2mm thick galvanized steel bracket |
| Construction detail 4 | Silver alloy contacts |
| Construction detail 5 | Coated PC board with Smart chip MCU to protect critical components from moisture |
| Environmental | Flammability UL-94 V1 Rating. |
