Model FTR15C-3100
15A USB-A + USB-C Outlet · 3.1A
15A,125V NEMA 5-15R. USB-A + USB-C charging with 3.1A,5V DC. Tamper-resistant receptacle with side wire & back wire.
UL/CUL · file E498095
- Supplied UL / cUL documentation: file E498095, report E498095-20180426 (April 26, 2022); confirm current coverage for the ordered model.
- Integrated power and USB charging for residential and commercial spaces; match the device rating and protection features to the location.
- Warranty: 3 years
- Built-in smart chip recognizes a connected device’s charging requirements and adjusts the charging output.
- Powerful Two high-powered charging ports deliver a combined total of up to 3.1A charging current and 15.5 watts of power;
- Charge up to two compatible USB devices, leaving the AC outlets free.
- Charging interfaces: USB-A + USB-C; charge compatible phones, tablets and headsets without separate power adapters, using a matching cable and charging profile.
- Built-in protection helps prevent overheating. Tamper-resistant shutters limit access to the receptacle contacts.
- Compact design fits a standard wall box and compatible decorator or screwless wall plates. Wiring: Side Wire & Back Wire. Check the approved model instructions for box clearance and terminal requirements.
- Designed for charging compatible USB devices; match the cable and charging profile to your device.
- Tamper-resistant shutter mechanism blocks access to the contacts unless a two- or three-prong plug is inserted.
Supplied certificate · E498095 · E498095-20180426 · issued April 26, 2022. Model addenda: PDF pages 2, 3, 5, 6. Confirm current coverage for the selected model.
FTR15C-3100 is named in the supplied April 26, 2022 addendum (report E498095-20180426). Confirm current coverage for the ordered configuration.
Specification notes
- The combined USB output is shared across the charging ports. Do not treat the combined total as the output available from each port.
Technical Parameters
| Model | FTR15C-3100 |
|---|---|
| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Receptacle rating | 15A,125V NEMA 5-15R |
| Combined USB output | 3.1A,5V DC |
| USB-A port 1 | 5V DC 2.4A |
| USB-C port 1 | 5V DC 3.0A |
| Operating temperature | -35°C to 66°C (-30°F to 150°F) |

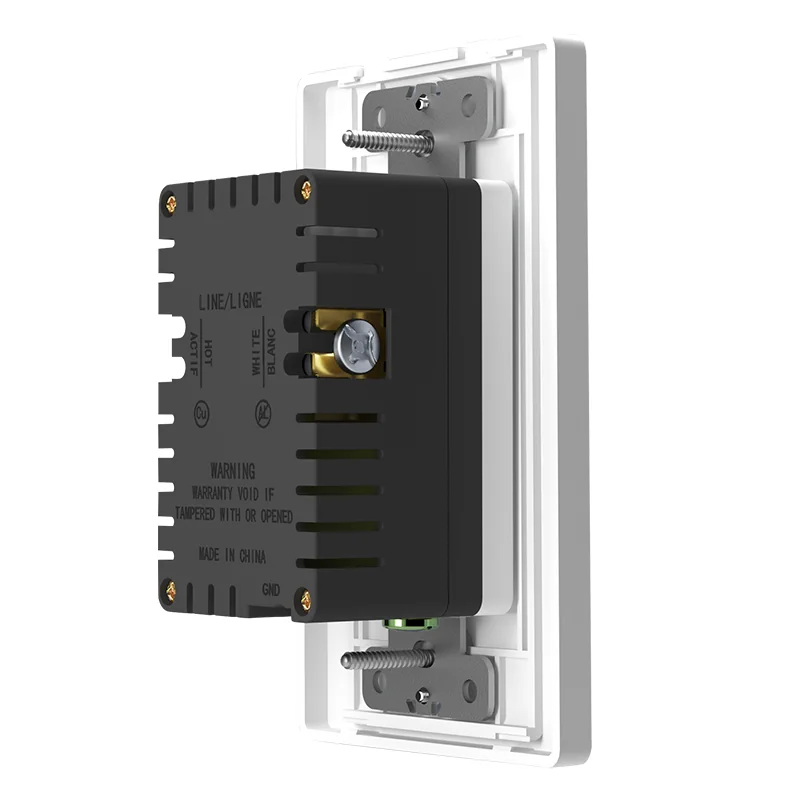

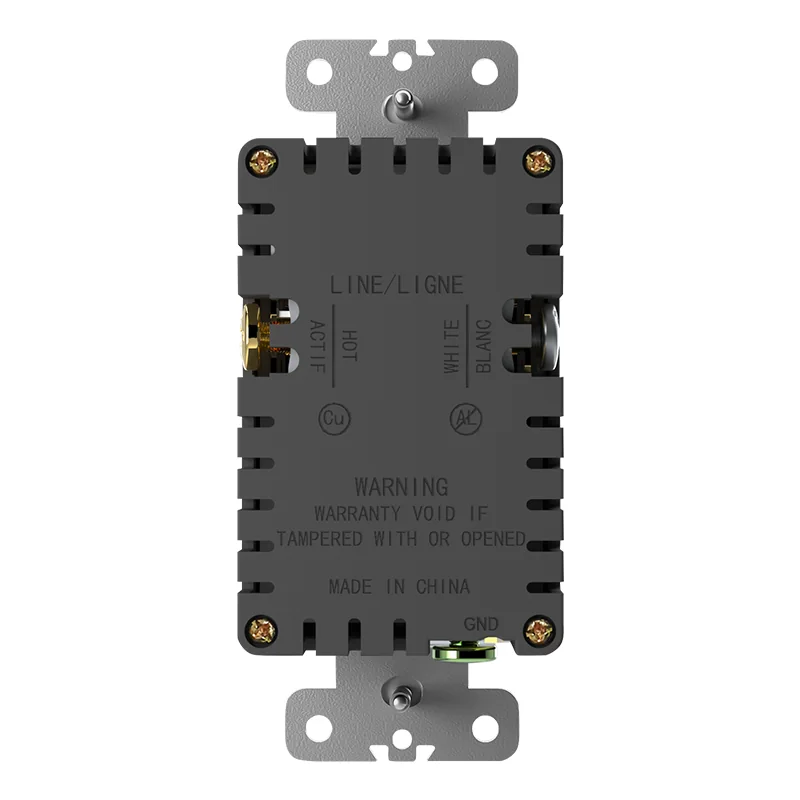

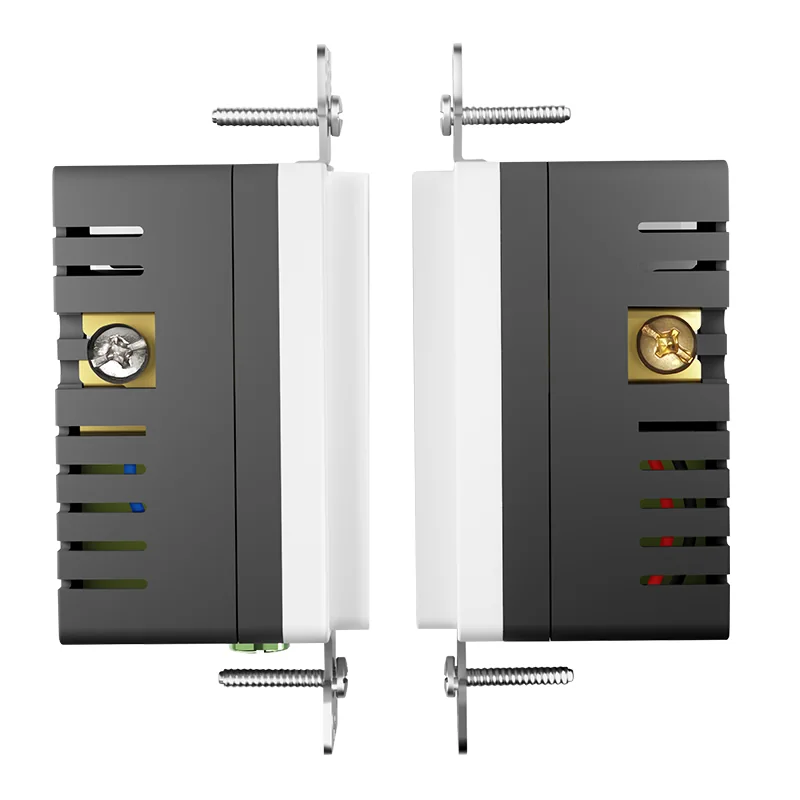

| Wiring method | Side Wire & Back Wire |
| Wire gauge | #12~#14 AWG Copper Wire |
| Pole & wire | 2-Pole, 3-Wire |
| Grounding | Self-Grounding |

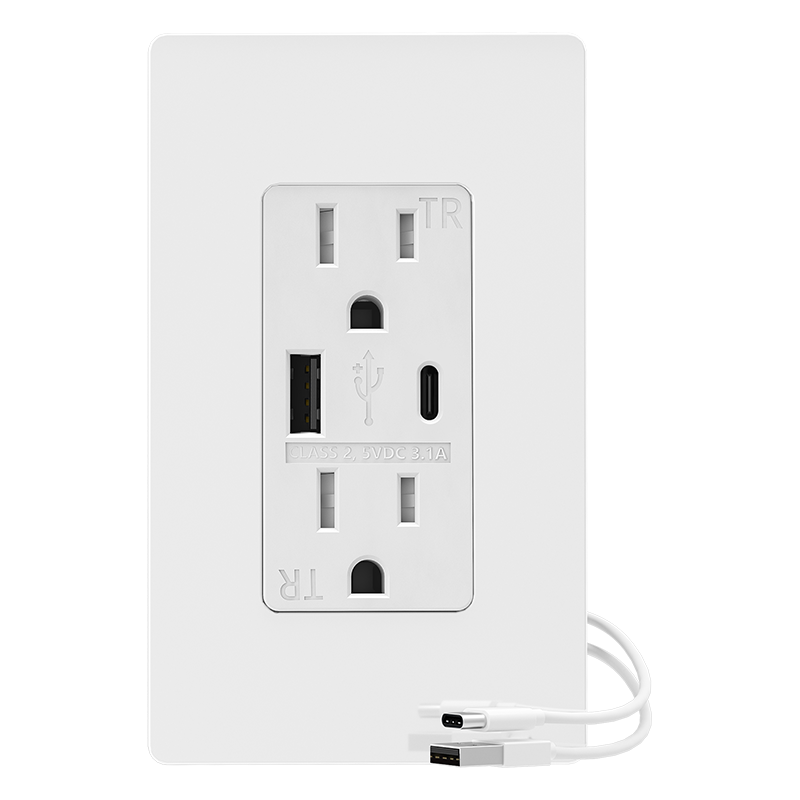

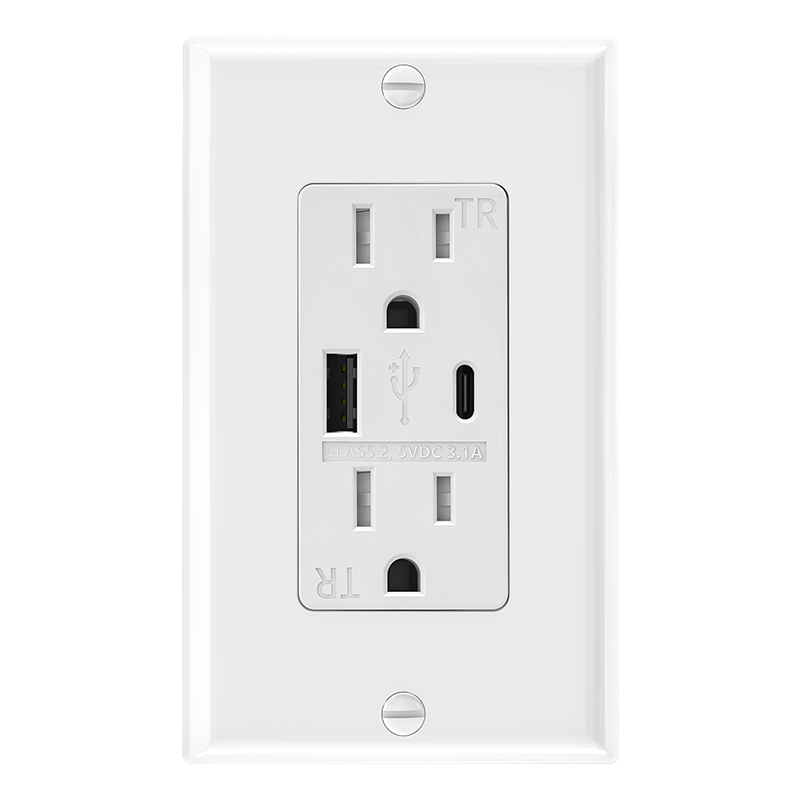

| Wall plate | Standard / Screwless Wallplate Optional |
| Source model designation | FTR15C 3100 |
| Published certification | UL/CUL |
| Standard | UL498/CSA C22.2 No. 42, 7th Ed |
| Application grade | Residential & Commercial Grade |
| Tamper-resistant | Yes |
| Weather-resistant | No |
| Warranty | 3 years |
| Material | Face, Thermoplastic; Body, Thermoplastic |
| Construction detail 2 | 0.8mm thick high-precision phosphorus bronze |
| Construction detail 3 | 1.2mm thick galvanized steel bracket |
| Construction detail 4 | Silver alloy contacts |
| Construction detail 5 | Coated PC board with Smart chip MCU to protect critical components from moisture |
| Environmental | Flammability UL-94 V1 Rating. |
