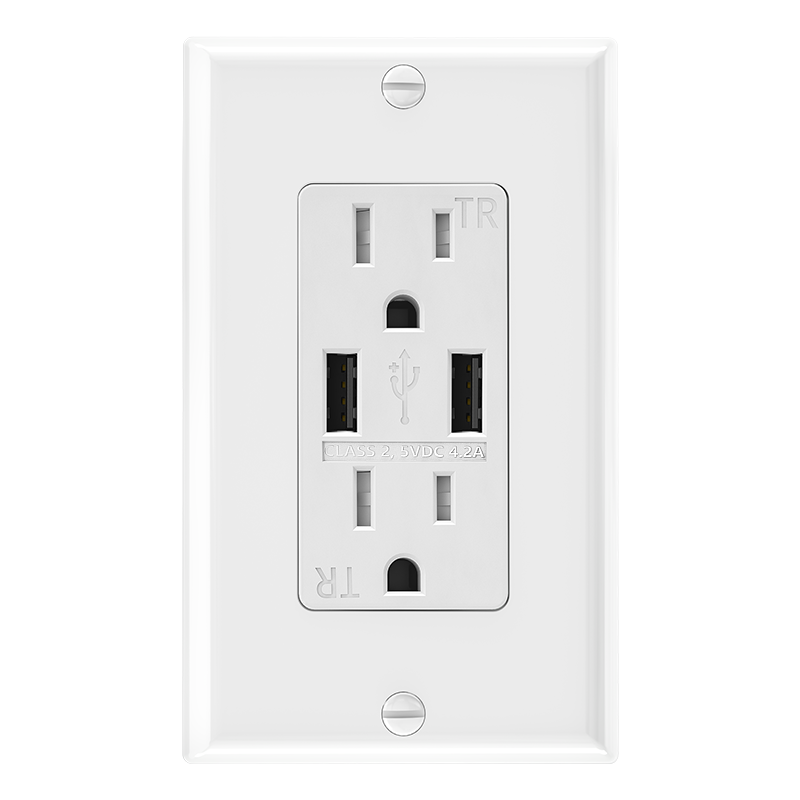

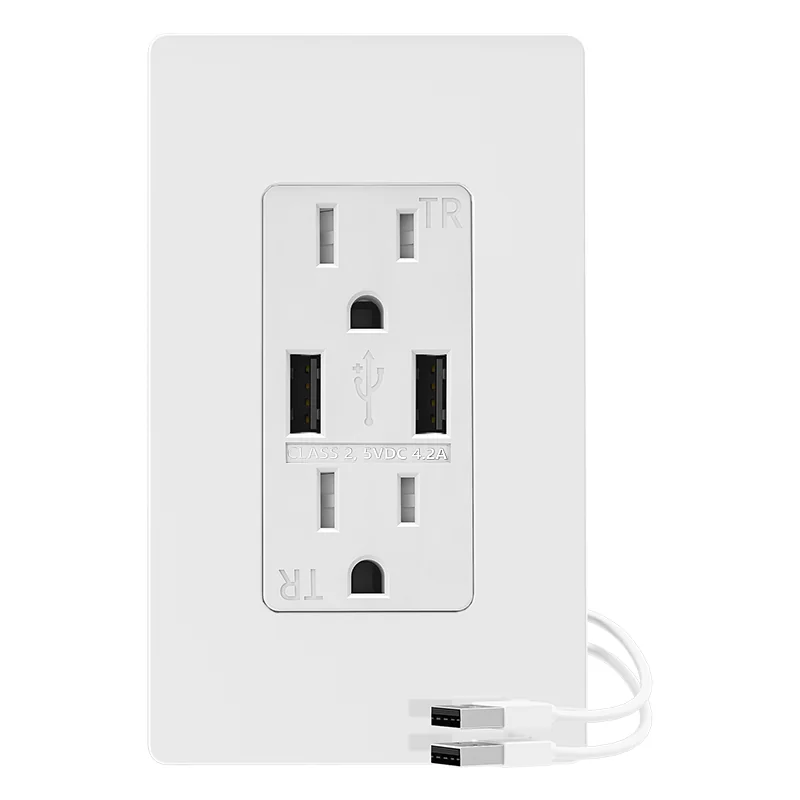

Model FTR15-4200
15A 2 × USB-A Outlet · 4.2A
15A, 125V receptacle with 2 × USB-A charging ports. Combined USB output is 5V DC, 4.2A (21W), shared across both ports.
Model-specific documentation available on request
- 15A, 125V receptacle with 2 × USB-A charging ports. Combined USB output is 5V DC, 4.2A (21W), shared across both ports.
- Charging protocols: BC1.2 · Apple / Samsung
No matching certificate PDF for FTR15-4200 is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
Specification notes
- The catalogue specifies combined output, but not an individual-port current limit for this 4200mA model. Do not substitute the limits from a 3100mA or 5000mA model.
- Dimensions use the shared non-65W reference supplied in the 4200mA product folder. The 83.5 mm value is mounting-hole spacing, not overall height. Confirm the final model drawing and wiring instructions before installation.
- The combined USB output is shared across the charging ports. Do not treat the combined total as the output available from each port.
Technical Parameters
| Model | FTR15-4200 |
|---|---|
| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Receptacle rating | 15A, 125V · NEMA 5-15R |
| Combined USB output | 5V DC · 4.2A · 21W |
| USB interfaces | 2 × USB-A |
| Charging protocols | BC1.2 · Apple / Samsung |
| Quick charging | No |
| Mounting centers | 83.5 mm |
| Pole & wire | 2-Pole, 3-Wire |
| Device width | 43.5 mm |
| Body height | 69 mm |
| Overall depth | 44.7 mm |
| Recessed depth | 37.5 mm |
| Source model designation | FTR15-4200 |
| Tamper-resistant | Yes — marked on the model face |
