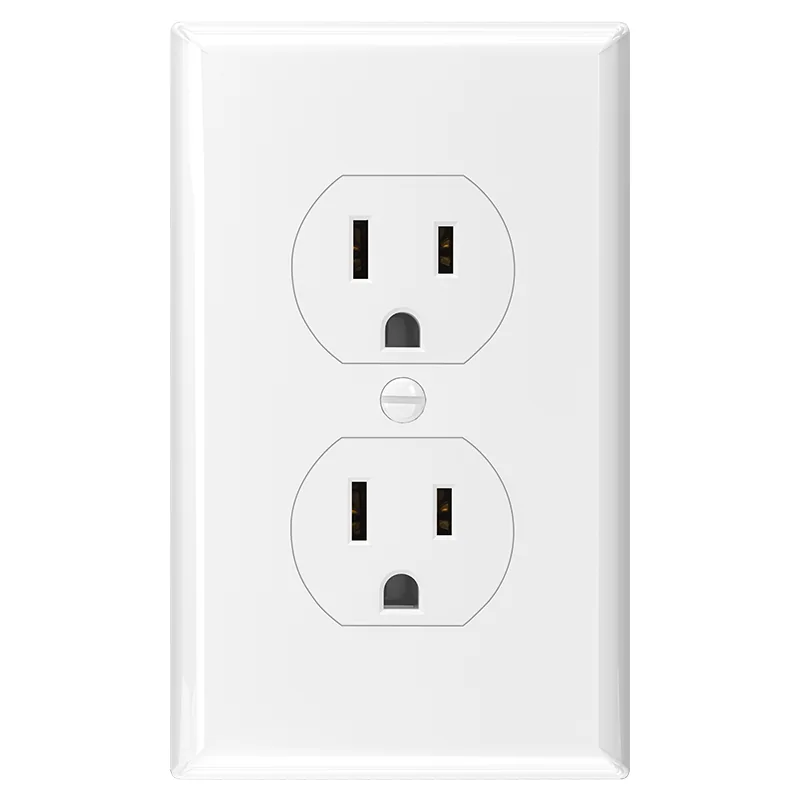

Model R15
15A Standard Duplex Receptacle
15A, 125V standard duplex receptacle with side wire / back wire. Matte finish; non-TR standard version.
Published certification · file E498095
- 15A, 125V standard duplex receptacle with side wire / back wire. Matte finish; non-TR standard version.
- Model certificate
- Product catalogue · page 15
- Product catalogue · page 18
- Dimensions & wiring reference 1
Supplied certificate · E498095 · E498095-20211123 · issued December 13, 2021. Model addenda: PDF pages 2, 4. Confirm current coverage for the selected model.
R15 is named in the supplied December 13, 2021 addendum (report E498095-20211123). Confirm current coverage for the ordered configuration.
Specification notes
- R15 and R15Q share the front-face presentation in the source library. Their wiring methods are different; use the model-specific wiring configuration on the order.

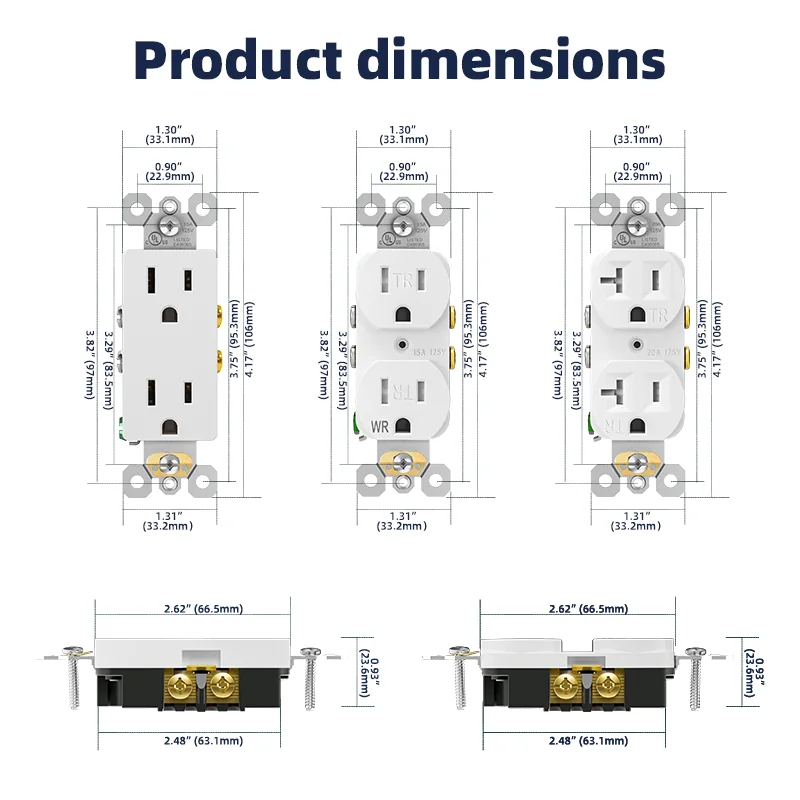

- Dimensions are transcribed from the shared receptacle range drawing in the supplied product library. Its illustrated TR/WR faces do not add those features to this standard model; confirm the approved model drawing for final fit.
- Wiring versions follow catalogue pages 15–18. The 15A push-in terminal is marked #14 AWG only. Confirm conductor material, solid/stranded suitability, strip length and torque in the approved model instructions; this push-in limit is not a specification for side/back terminals.
Technical Parameters
| Model | R15 |
|---|---|
| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Device rating | 15A · 125V |
| Protection features | Non Tamper-Resistant |
| Surface finish | Matte |
| Mounting centers | 83.5 mm |
| Wiring method | Side Wire / Back Wire |
| Device width | 33.2 mm |
| Overall height | 106 mm |
| Overall depth | 23.8 mm |
| Source model designation | R15 |
| Certification file | E498095 |
| Tamper-resistant | No |
| Weather-resistant | No |
