Model DM2010S
0–10V Slide Dimmer
Paddle on/off switching with slide control for compatible 0–10V LED drivers and fluorescent ballasts. Rated for 120/277V AC, 60Hz and 600VA maximum.
UL / cUL marking on model · file E550002
- Paddle on/off switching with slide control for compatible 0–10V LED drivers and fluorescent ballasts. Rated for 120/277V AC, 60Hz and 600VA maximum.
- DM2010 / DM2010S · catalog sheet (PDF)
- Product catalogue · page 13

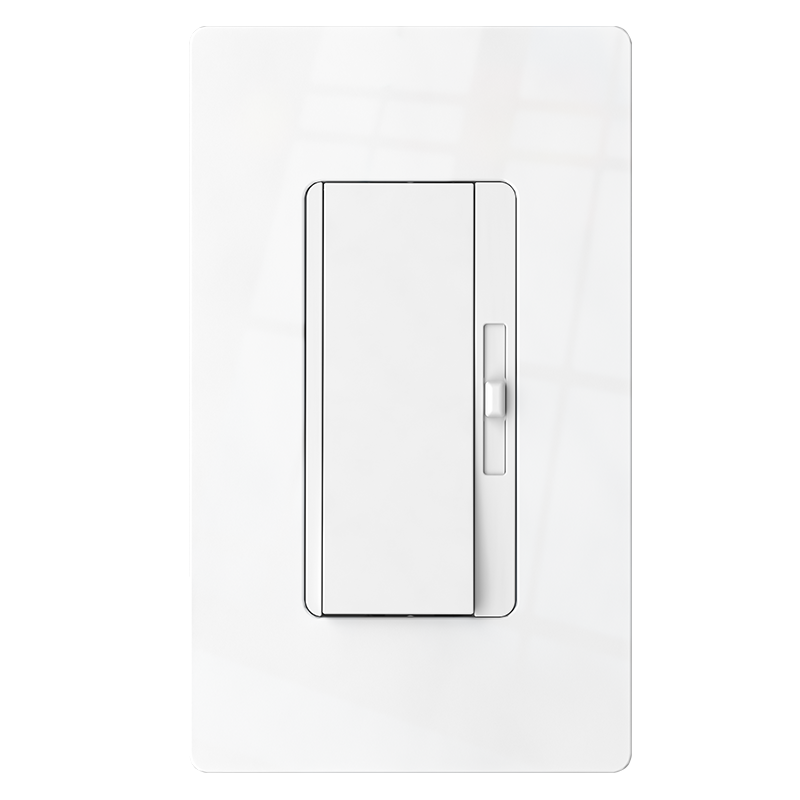

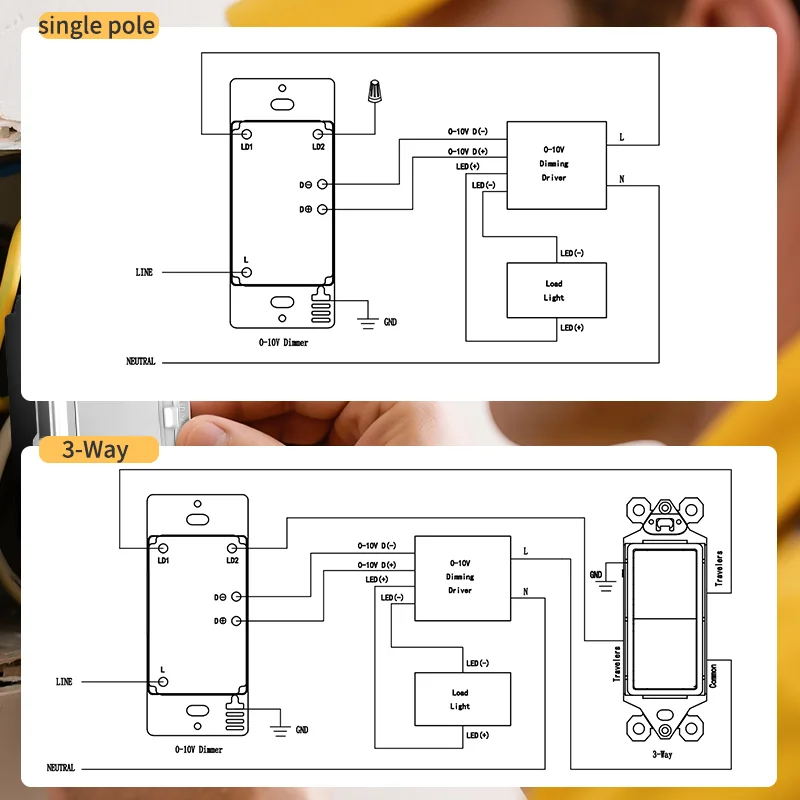

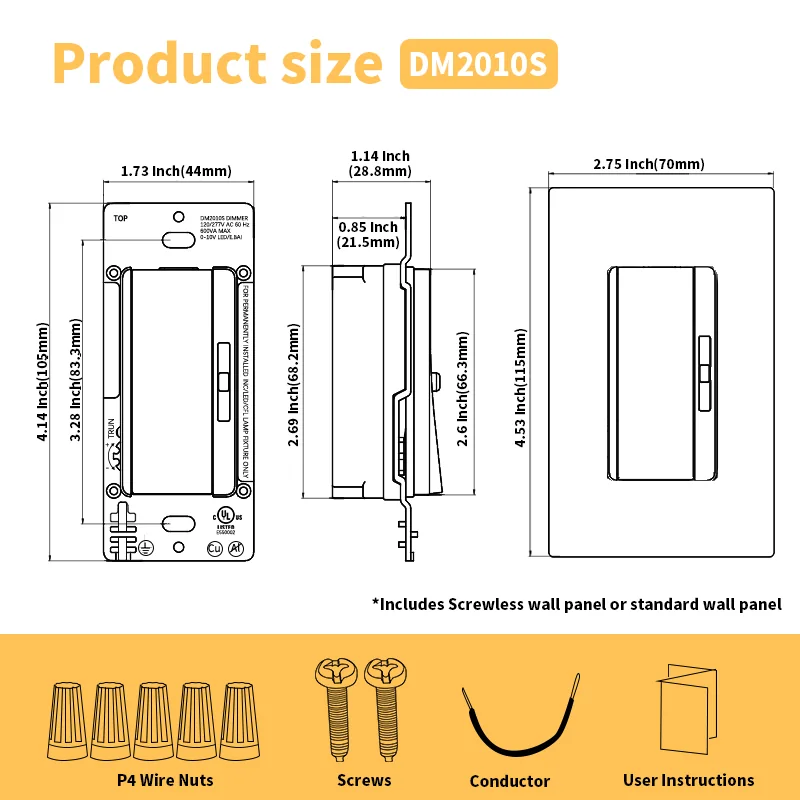

- Dimensions & wiring reference 1
- Dimensions & wiring reference 2
No matching certificate PDF for DM2010S is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
Specification notes
- DM2010S uses a 0–10V control signal and is not interchangeable with DM2010. Confirm compatibility with the LED driver or ballast.
- Dimensions and wiring references are reproduced from the model-specific product-library drawings. Use approved installation instructions for the final installation.
- A multi-gang derating schedule, conductor limits and terminal torque are not specified in these references. Request the approved instructions for the intended installation.
Technical Parameters
| Model | DM2010S |
|---|---|
| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Operating voltage | 120 / 277V AC · 60Hz |
| Current rating | 5A at 120V AC · 2A at 277V AC |
| Control method | On/off slide dimmer · 0–10V |
| Maximum load | 600VA |
| Control output | 0–10V DC analog control — compatible driver required |
| Circuit configuration | Single-pole / 3-way |
| Operating temperature | −20°C to 40°C |
| Device width | 1.73 in (44 mm) |
| Device height | 4.14 in (105 mm) |
| Overall depth | 1.14 in (28.8 mm) |
| Wall-plate face | 2.75 × 4.53 in (70 × 115 mm) |
| Recessed depth | 21.5 mm |
| Source model designation | DM2010S |
| Published certification | UL / cUL marking on model |
| Certification file | E550002 |
