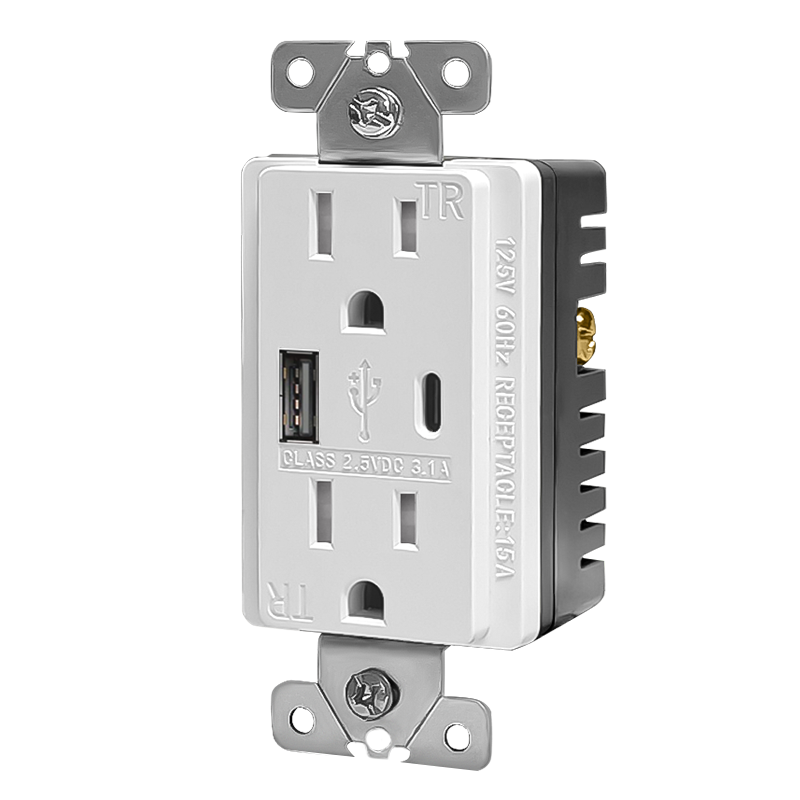

FTR15C-3100

15 Amp Wall Outlet with USB Ports, 3.1A USB Outlets Receptacles with Type A & Type C Ports, Tamper Resistant Receptacle, Wall Plate Included, UL/cUL Listed E498095





Color:

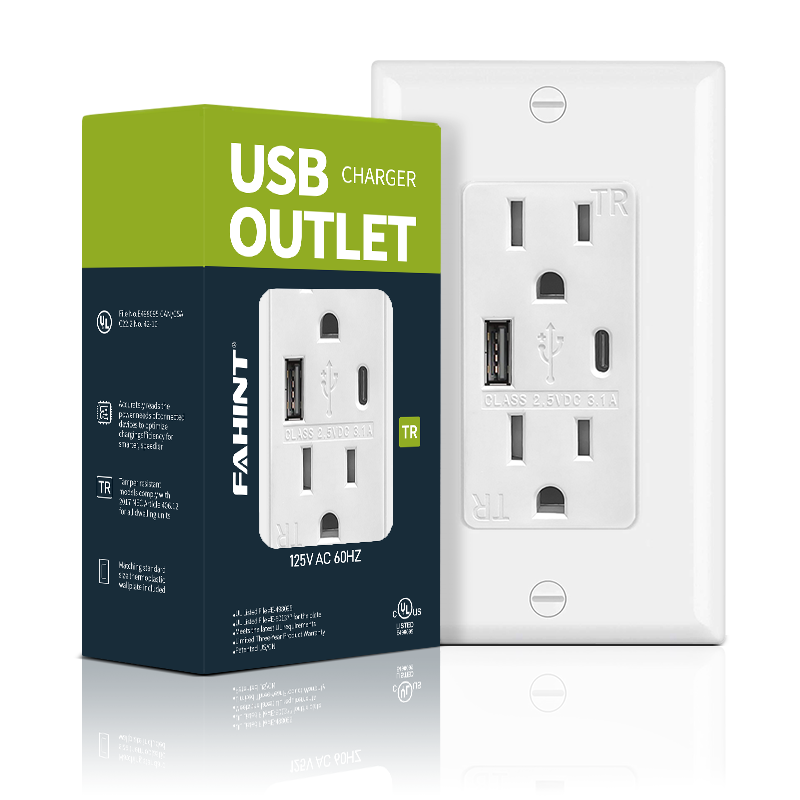

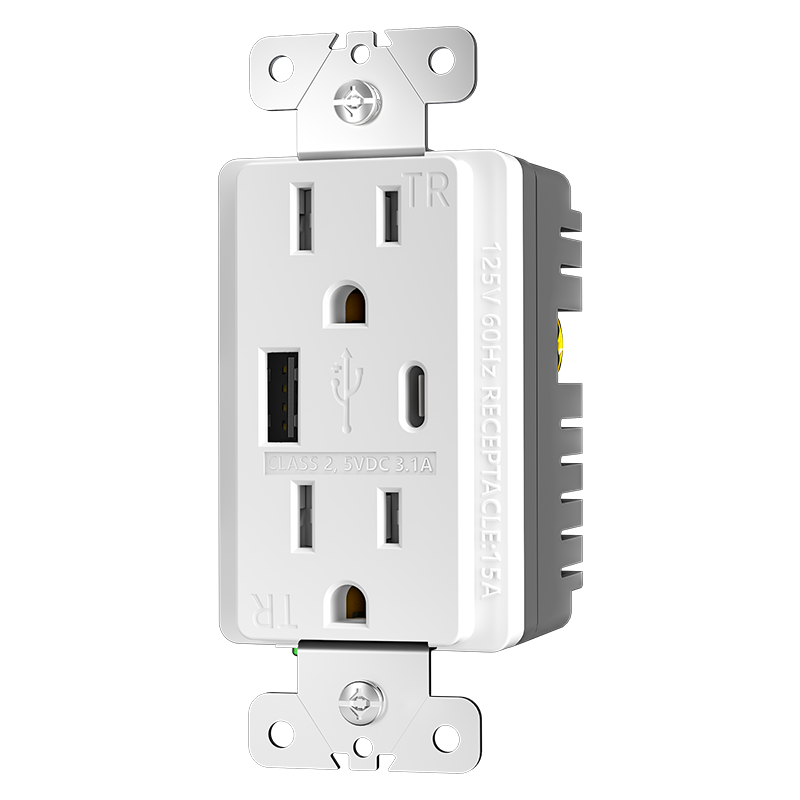

  • White-WH

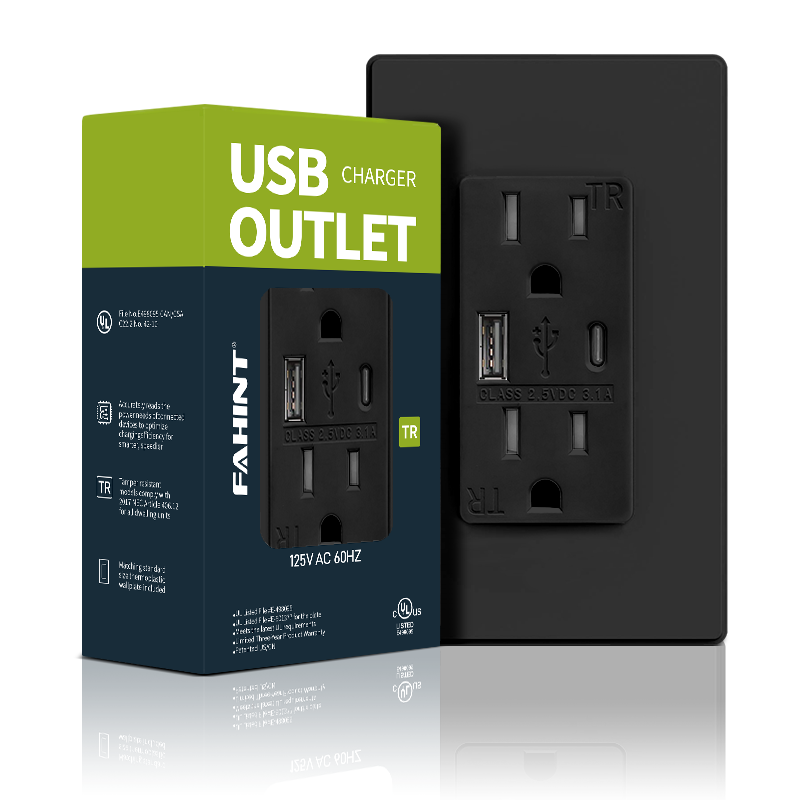

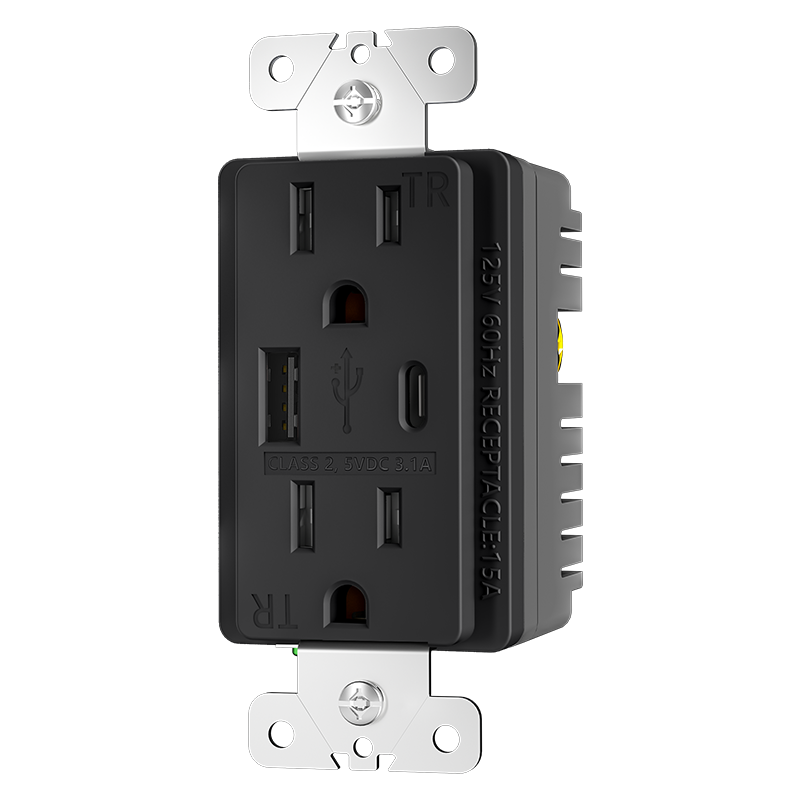

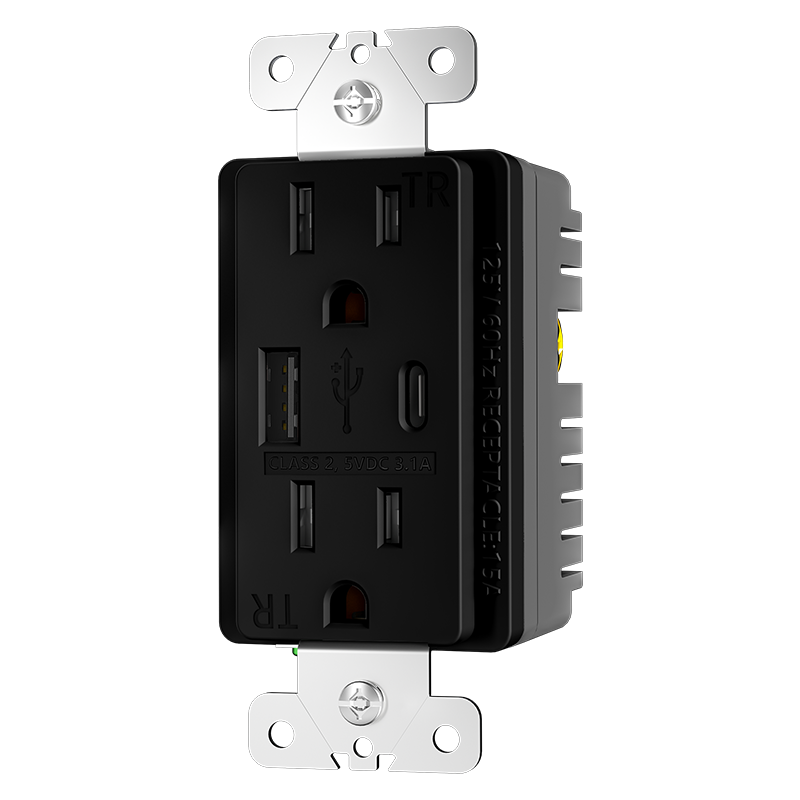

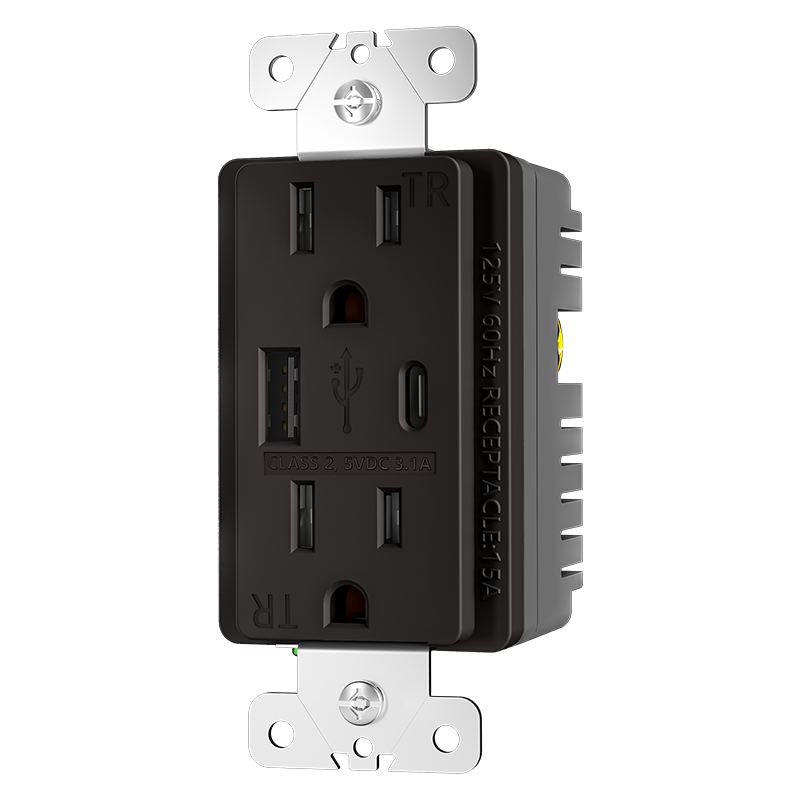

  • Black-BK

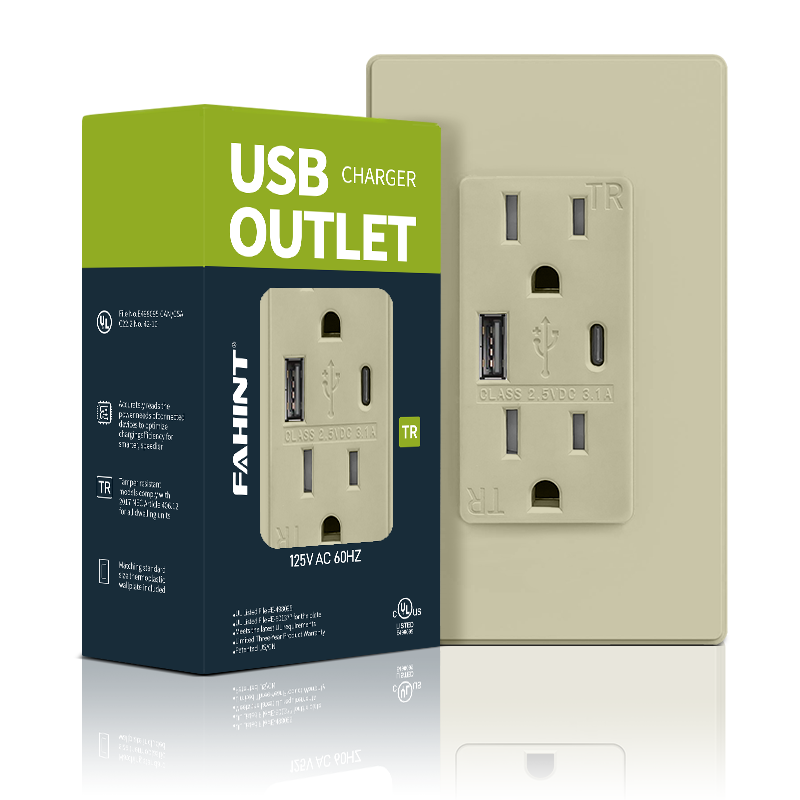

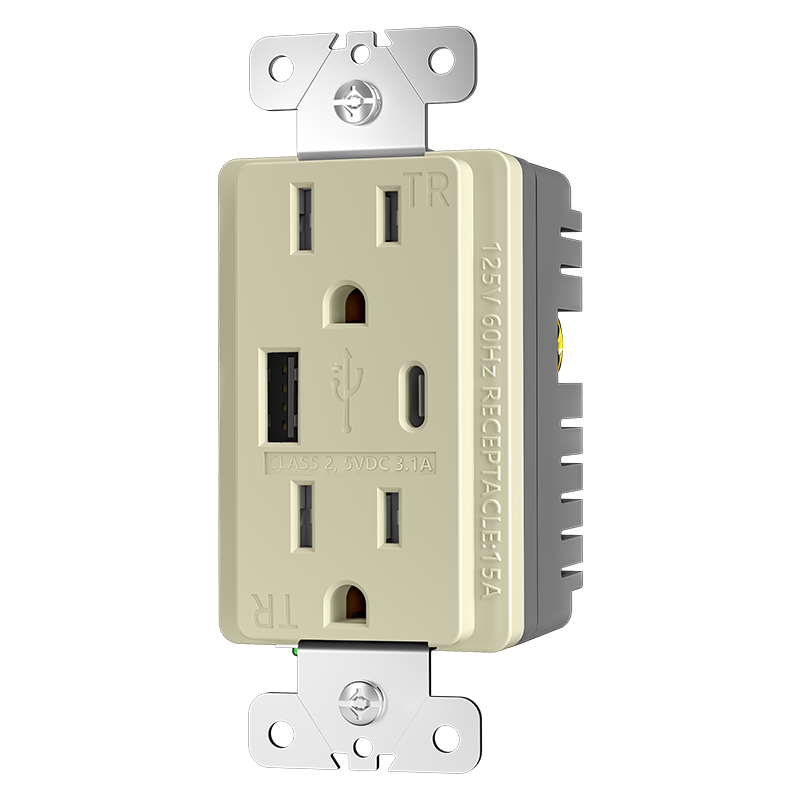

  • Ivory-IV

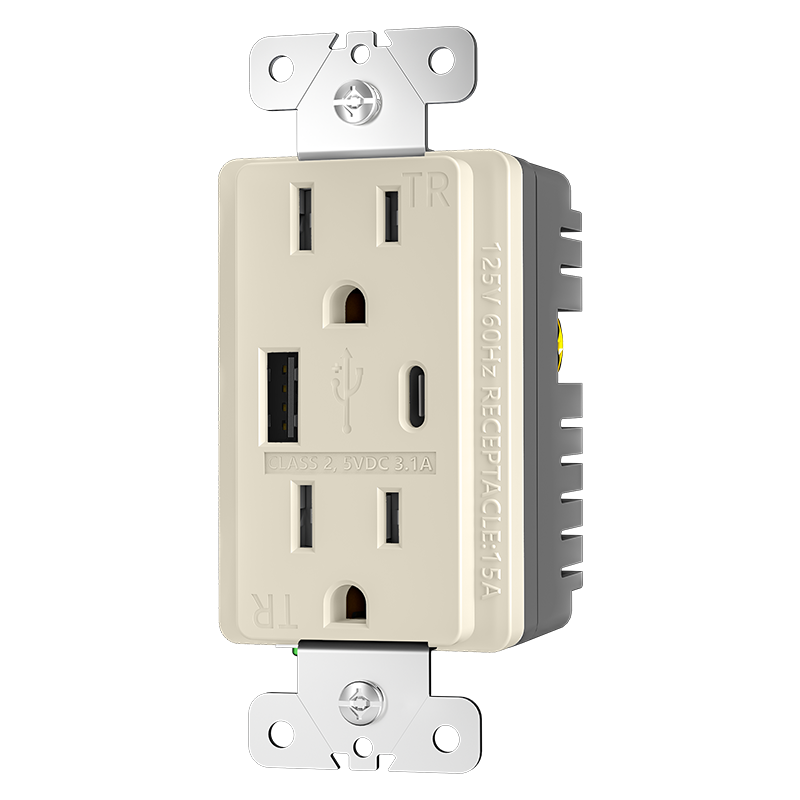

  • Almond-AL

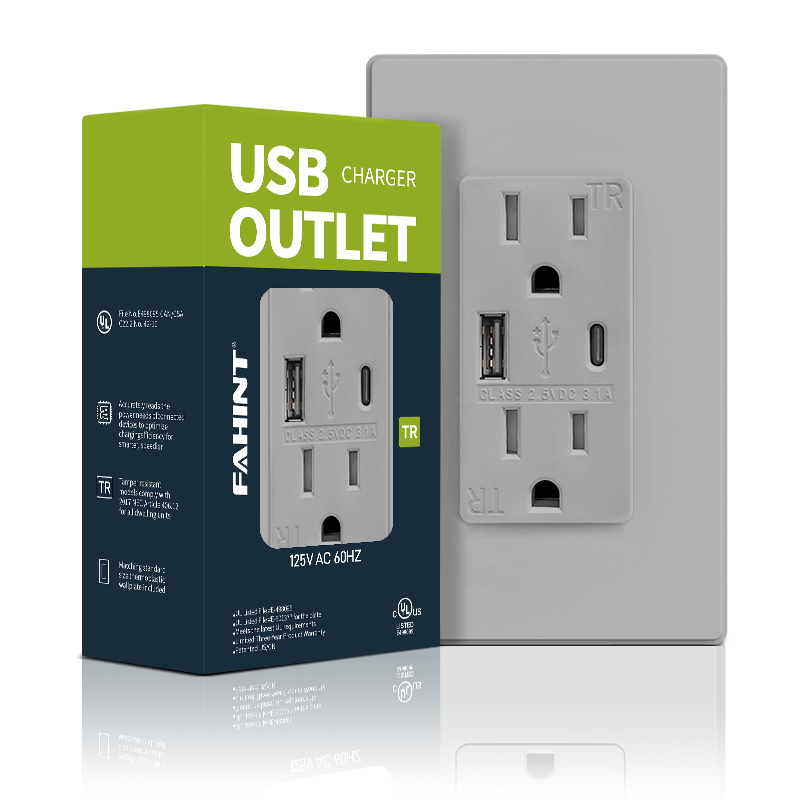

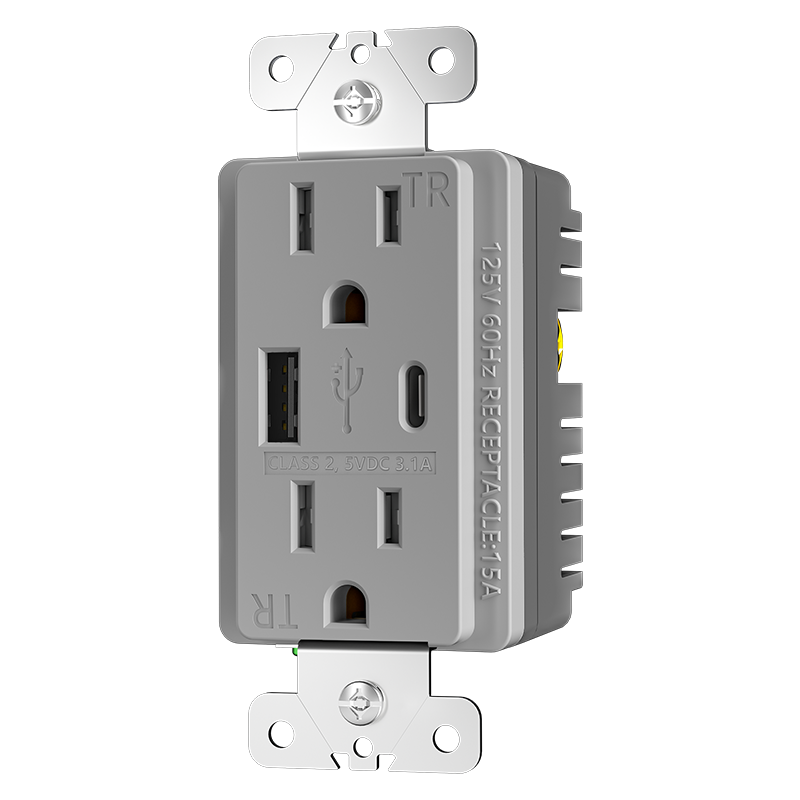

  • Grey-GR

  • Brown-BR

  • Graphite-GP

Quantity:

Features & Benefits

UL/cUL certified File No.E498095;

Residence Homelife
Laundry rooms, Living rooms, Kitchens, Basements, Garages,

Commercial Offices Retail shopping Malls
Public areas, Restaurants, Shopping Center, Lounges;
Airport, Train Station waiting rooms, Coffee Center;

Education Facilities
Classrooms, Restrooms, Laboratories;

Warranty for 3 years;

Specifications

ModelFTR15C-3100
CertificationUL/CUL
StandardUL498/CSA C22.2 No. 42, 7th Ed
Receptacle Rating15A,125V NEMA 5-15R
USB Rating3.1A,5V DC
USB A5V DC 2.4A
USB C5V DC 3.0A
Operating Temp-35℃ to 66℃ (-30℉ to 150℉)
Wiring MethodSide Wire & Back Wire
Wire Gauge#12~#14 AWG Copper Wire
GradeResidential & Commercial Grade
Pole & Wire2-Pole, 3-Wire
GroundingSelf-Grounding
Tamer-ResistantYes
Weather-ResistantNon

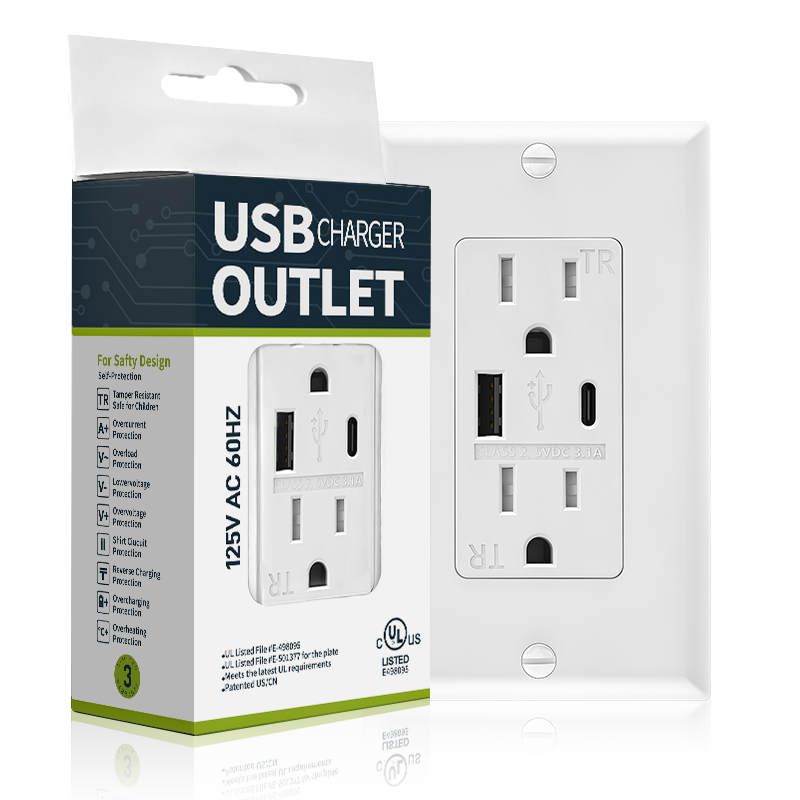

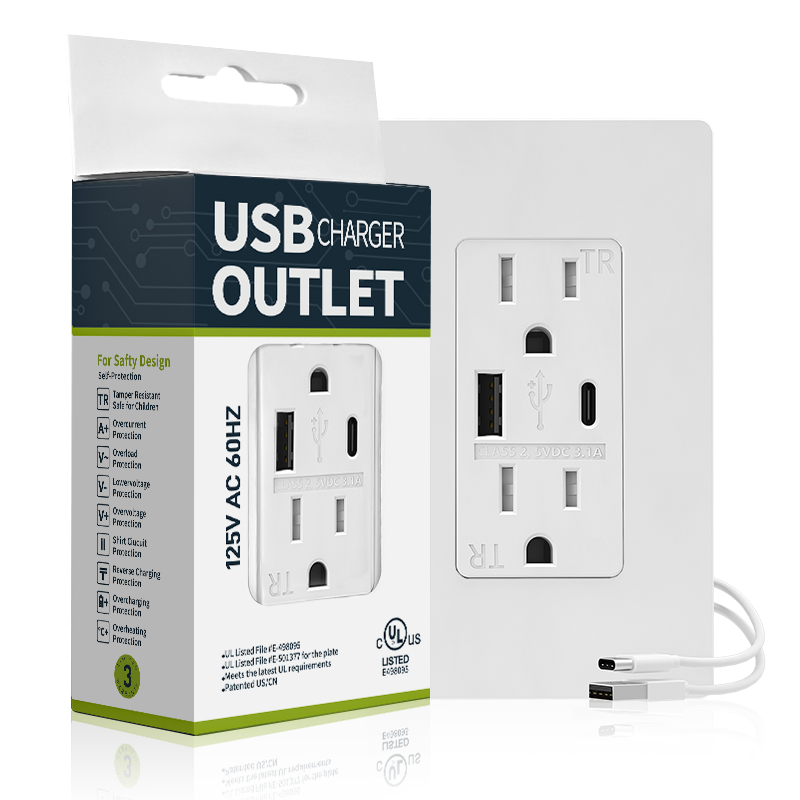

WallplateStandard / Screwless Wallplate Optional

Material Characteristics

 Material: Face, Thermoplastic; Body, Thermoplastic;

0.8mm thick high-precision phosphorus bronze;

1.2mm thick galvanized steel bracket;

Silver alloy contacts with 30 silver layer thick;

Coated PC board with Smart chip MCU to protect critical components from moisture;

Environmental: Flammability UL-94 V1 Rating.


Smart   Built-in smart chip recognizes the individual device’s charging requirements to optimize the charge;

Powerful  Two high-powered charging ports deliver a combined total of up to 3.1A charging current and 15.5 watts of power;

Convenient  No more searching for charging adapters. Upgrade your existing outlets so youcan charge up to two USB powered devices at once, leaving the outlets free for additional power needs;

The future of charging  USB Type-C provides faster charging and is emerging as the standard port on many phones, and tablets, iPhone, iPad, iPad Mini, LG, HTC, Android, tablets, headset and much more without the need of power adapters;

Enhanced Safety  Built-in protection helps prevent the device from overheating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets;

Easy Installation   Compact design fits in a standard wall box and compatible with Decora and Decora Plus screwless wall plates, back and side wired for easy installation;

UL/cUL Listed    Compatible with USB 1.1/2.1/3.0 devices. Designed for back and side wiring for easy installation;

Tamper Resistant    Outlets Duplex 15/20 Amp receptacles comply with NEC requirement mandating that receptacles installed in dwelling units must be listed as tamper-resistant. Shutter mechanism inside the receptacle blocks the access to

the contacts unless a two-or-three-prong plug is inserted, preventing young children from inserting unwanted objects into the outlets.

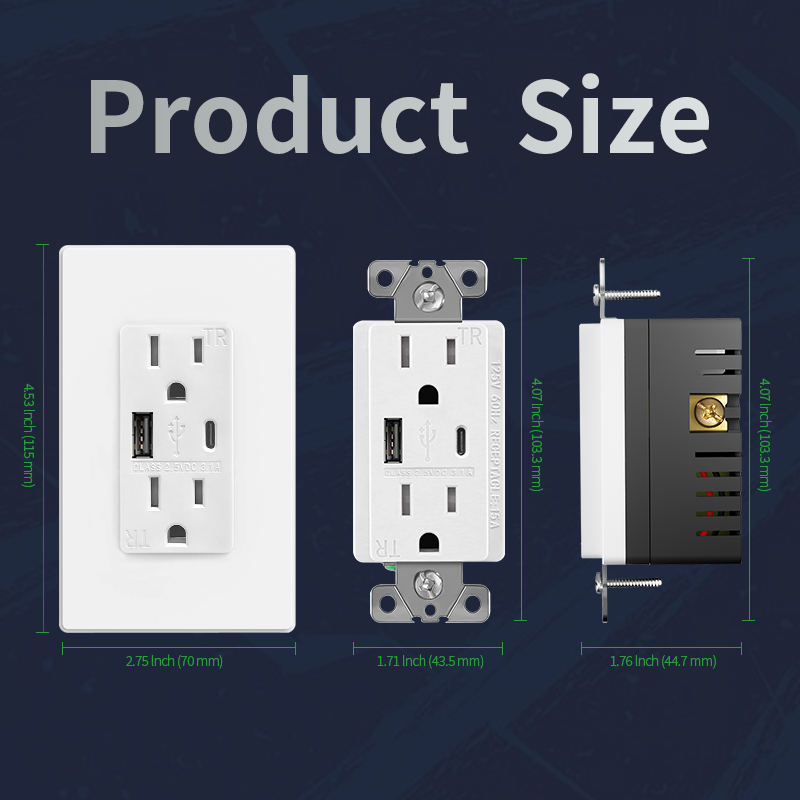

Diemension
