FTR20QC PD36W C+C

20A Outlet Receptacle, Power Deliver PD36W Fast Charge & Power Delivery Dual USB Type C Wall Outlet, Tamper Resistant, UL Listed, Wall Plate Included

UL/cUL Listed E498095



Color:

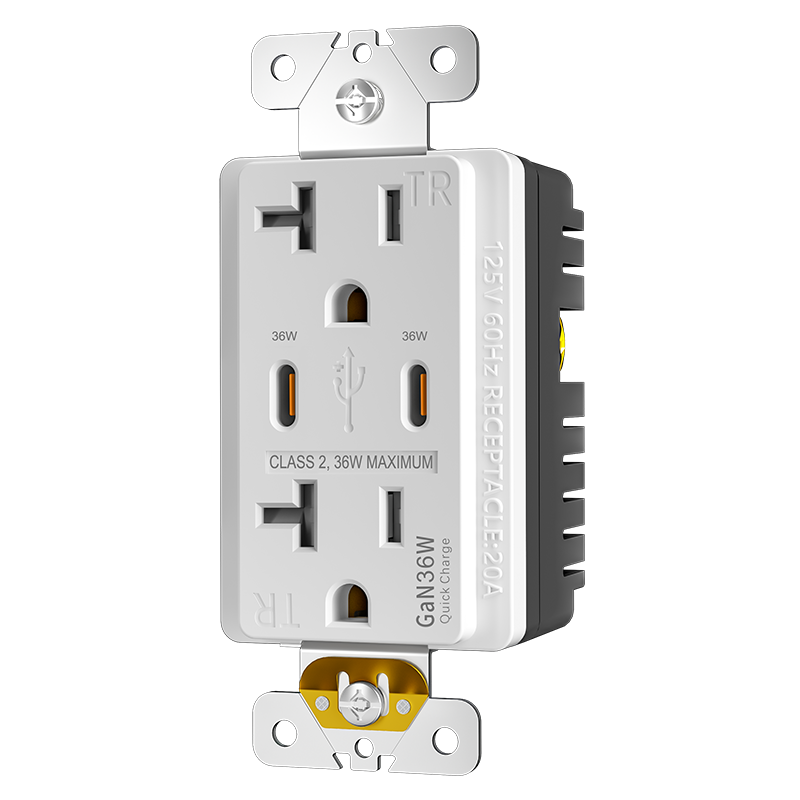

  • White-WH

  • Black-BK

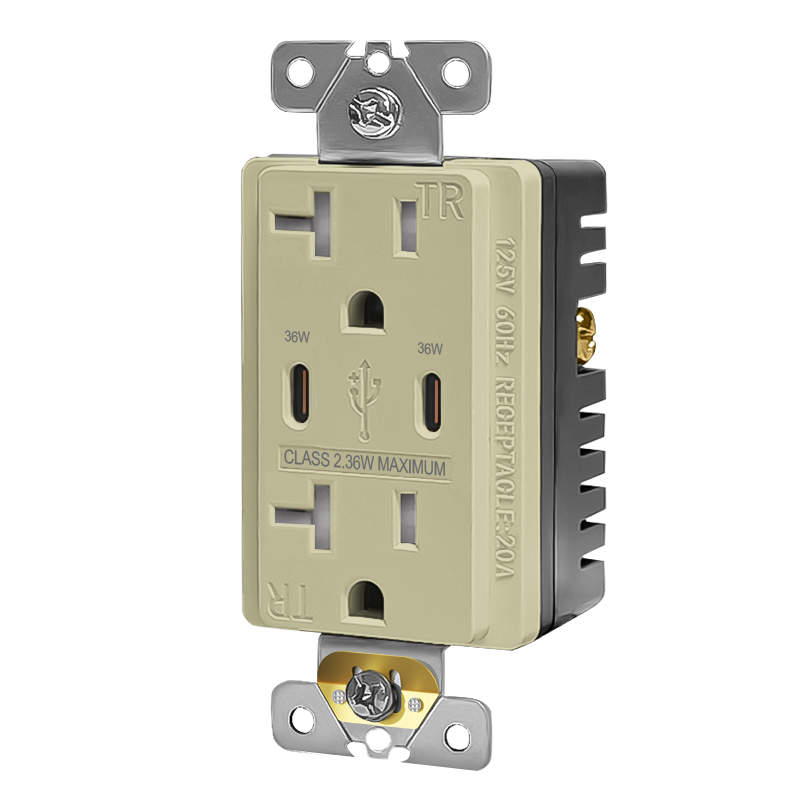

  • Ivory-IV

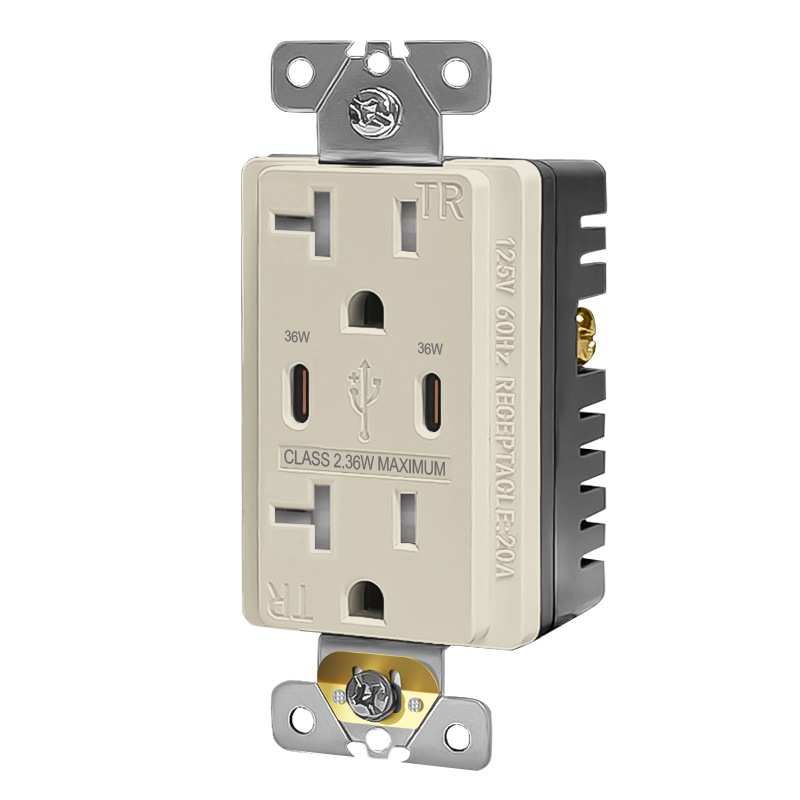

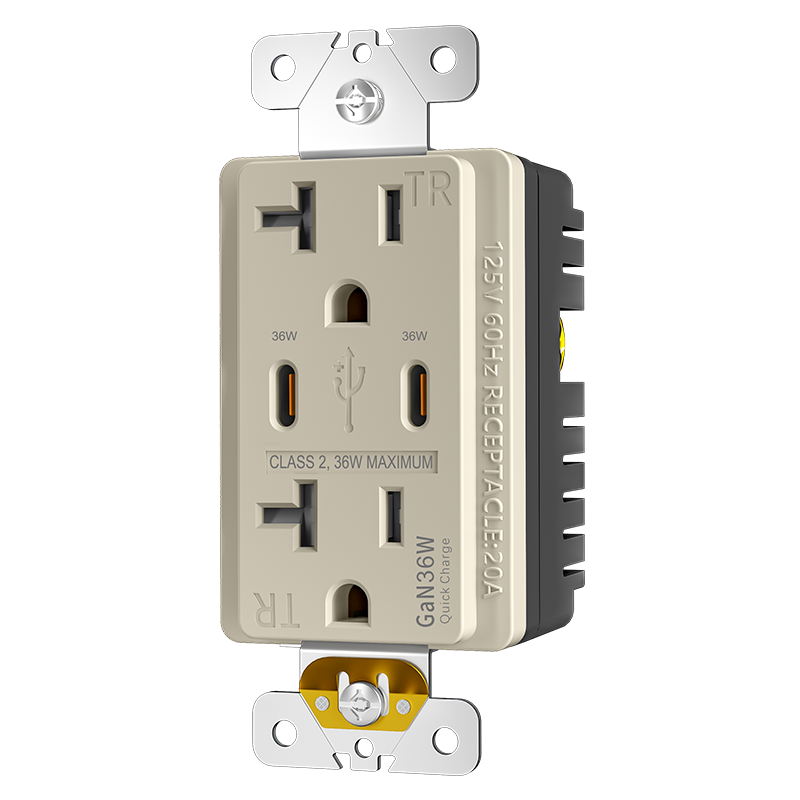

  • Almond-AL

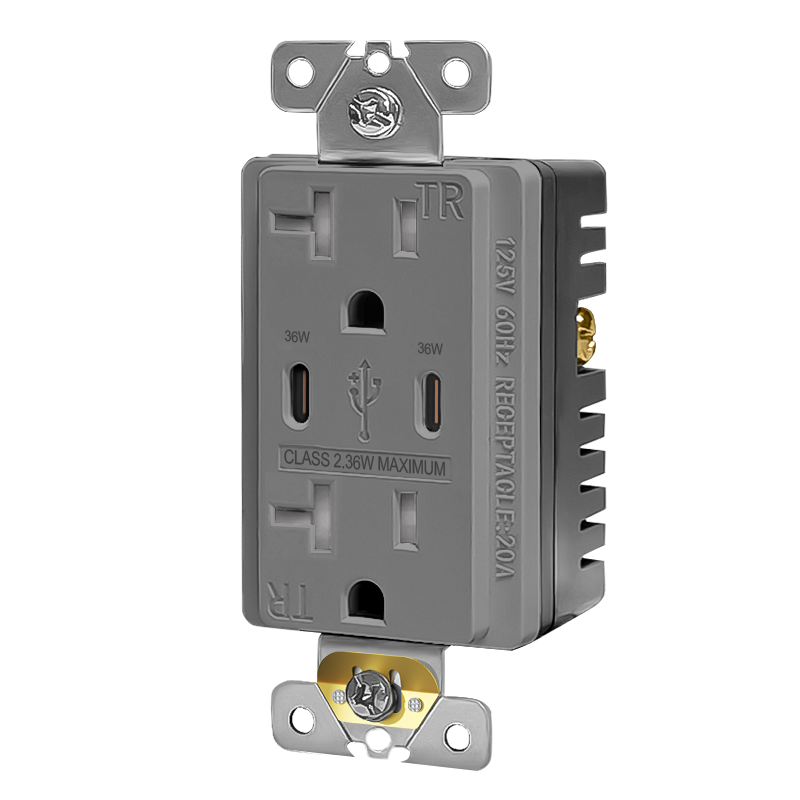

  • Grey-GR

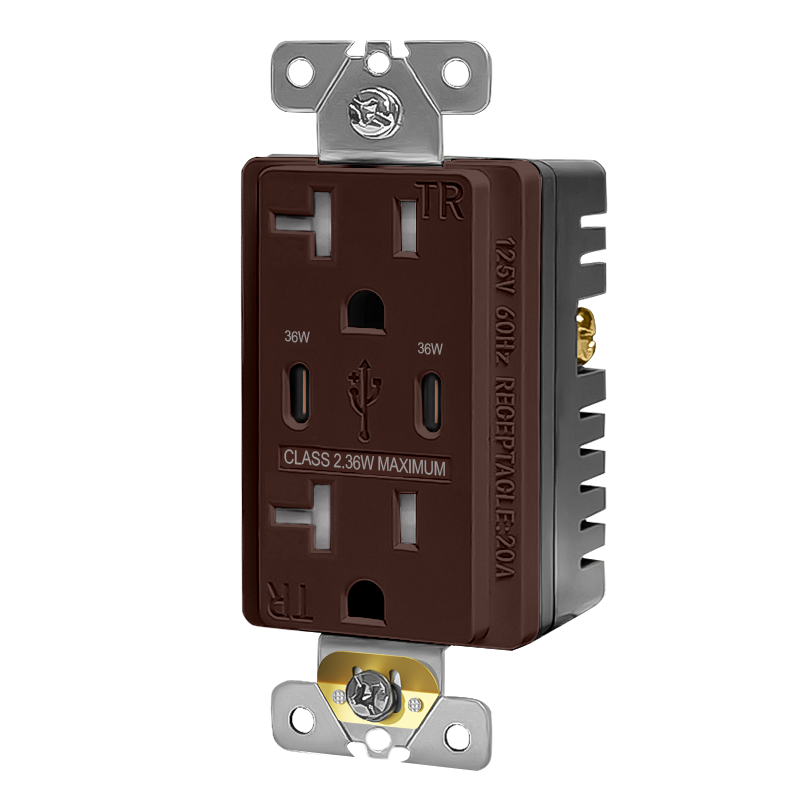

  • Brown-BR

  • Graphite-GP

Quantity:

Features & Benefits

UL/cUL certified File No.E498095;

PD36W Quick Charging USB Outlet Fast Charging to Revitalize Your Devices Instantly.

Residence Homelife
Laundry rooms, Living rooms, Kitchens, Basements, Garages,

Commercial Offices Retail shopping Malls
Public areas, Restaurants, Shopping Center, Lounges;
Airport, Train Station waiting rooms, Coffee Center;

Education Facilities
Classrooms, Restrooms, Laboratories;

Warranty for 3 years;

Specifications

ModelFTR20QC PD36W C+C
CertificationUL/CUL
StandardUL498/CSA C22.2 No. 42, 7th Ed
Receptacle Rating20A,125V NEMA 5-20R
USB TypeUSB C*1 and USB C*1
USB CUp to PD36W
USB CUp to PD36W
Operating Temp-35℃ to 66℃ (-30℉ to 150℉)
Wiring MethodSide Wire & Back Wire
Wire Gauge#12~#14 AWG Copper Wire
GradeResidential & Commercial Grade
Pole & Wire2-Pole, 3-Wire
GroundingSelf-Grounding
Tamer-ResistantYes
Weather-ResistantNon
WallplateStandard / Screwless Wallplate Optional

Material Characteristics

 Material: Face, Thermoplastic; Body, Thermoplastic;

0.8mm thick high-precision phosphorus bronze;

1.2mm thick galvanized steel bracket;

Silver alloy contacts with 30 silver layer thick;

Coated PC board with Smart chip MCU to protect critical components from moisture;

Environmental: Flammability UL-94 V1 Rating.


Smart   Built-in smart chip recognizes the individual device’s charging requirements to optimize the charge;

Powerful  Two high-powered charging ports deliver a combined total of up to PD36W power;

Convenient  No more searching for charging adapters. Upgrade your existing outlets so youcan charge up to two USB powered devices at once, leaving the outlets free for additional power needs;

The future of charging  USB Type-C provides faster charging and is emerging as the standard port on many phones, and tablets, iPhone, iPad, iPad Mini, LG, HTC, Android, tablets, headset and much more without the need of power adapters;

Enhanced Safety  Built-in protection helps prevent the device from overheating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets;

Easy Installation   Compact design fits in a standard wall box and compatible with Decora and Decora Plus screwless wall plates, back and side wired for easy installation;

UL/cUL Listed    Compatible with USB 1.1/2.1/3.0 devices. Designed for back and side wiring for easy installation;

Tamper Resistant    Outlets Duplex 15/20 Amp receptacles comply with NEC requirement mandating that receptacles installed in dwelling units must be listed as tamper-resistant. Shutter mechanism inside the receptacle blocks the access to

the contacts unless a two-or-three-prong plug is inserted, preventing young children from inserting unwanted objects into the outlets.

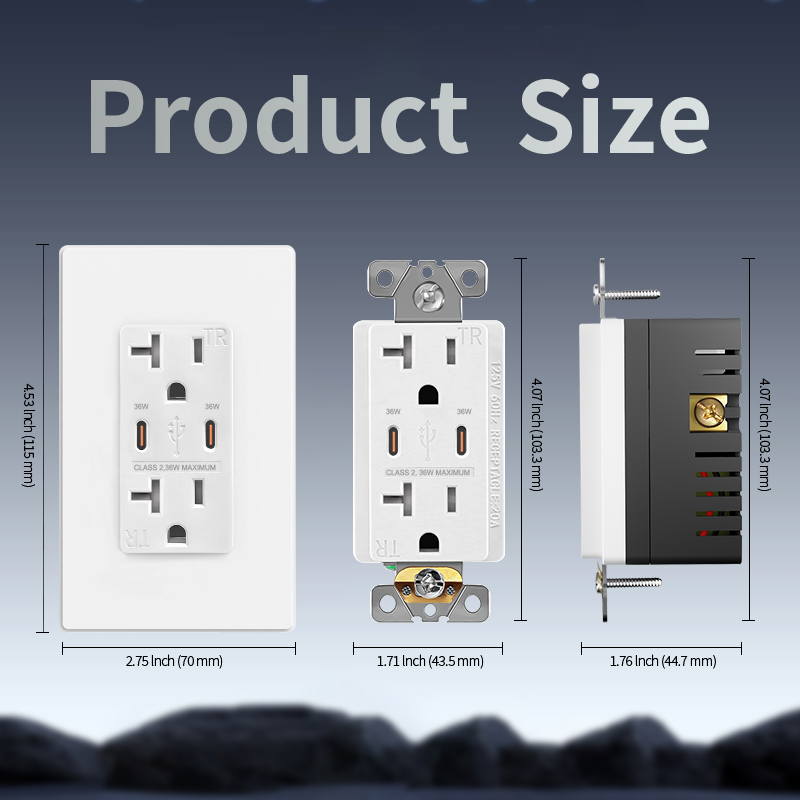

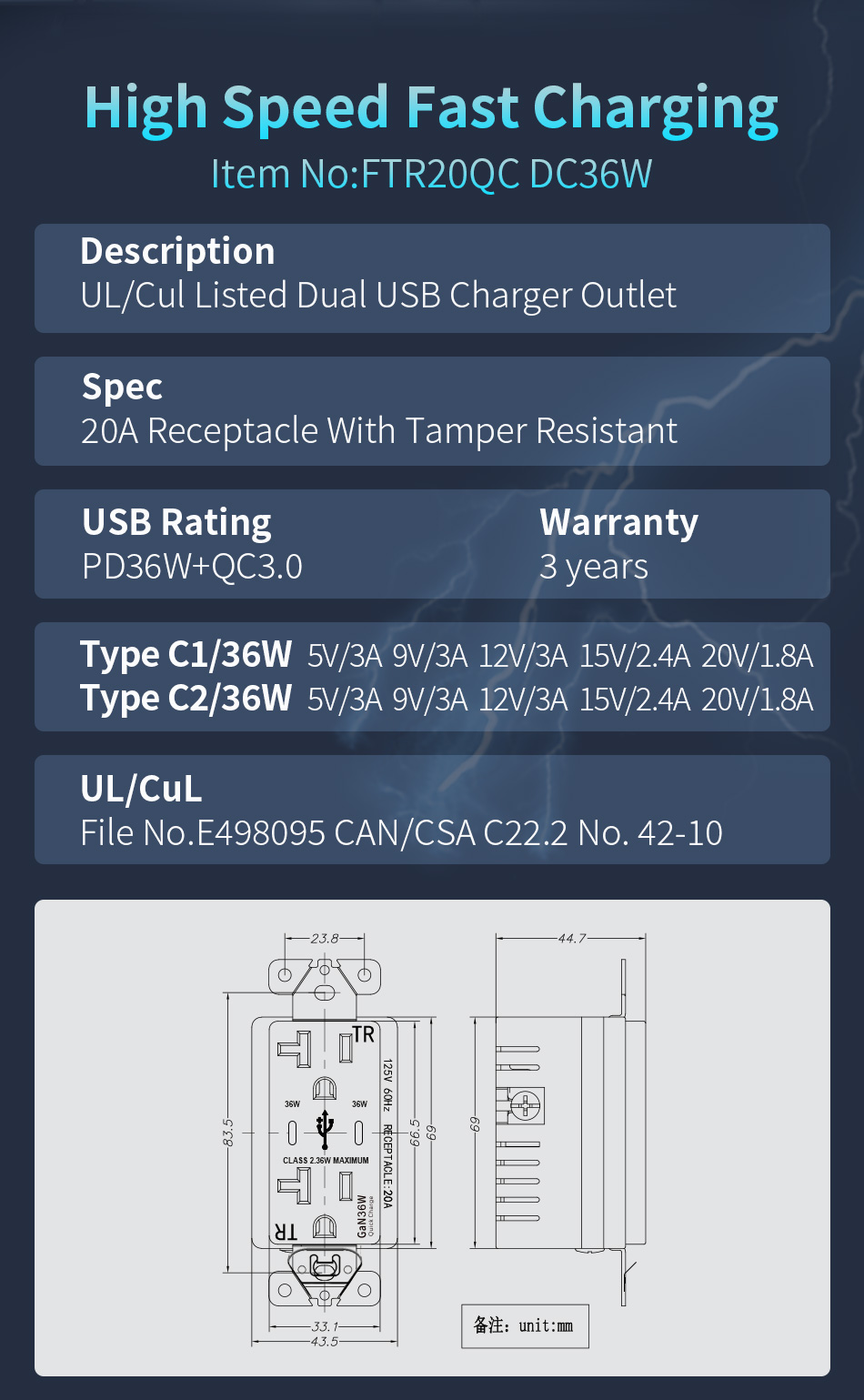

Diemension
