Homes & hospitality
Keep everyday device charging close to desks, bedsides and shared living spaces.
Model FTR15QC-AC65W
15A USB-A + USB-C Outlet · PD 65W
15A,125V NEMA 5-15R. USB-A + USB-C charging with USB-C up to 65W. Tamper-resistant receptacle with side wire & back wire.
Key specifications
- Receptacle
- 15A,125V NEMA 5-15R
- Charging
- USB-C up to 65W
- Interfaces
- USB-A + USB-C
- Variant
- Tamper-resistant
UL/CUL · file E498095
Model data
Technical specifications.
Key values first, with the complete specification grouped below for faster review.
- Receptacle
- 15A,125V NEMA 5-15R
- Charging
- USB-C up to 65W
- Interfaces
- USB-A + USB-C
- Variant
- Tamper-resistant
Complete model specification
Electrical & functional
7 details- Receptacle rating
- 15A,125V NEMA 5-15R
- USB interfaces
- USB A*1 and USB C*1
- USB-A port 1
- Up to 18W
- USB-C port 1
- Up to PD65W
- Operating temperature
- -35°C to 66°C (-30°F to 150°F)
- USB-C output profiles
- 5V / 3A · 9V / 3A · 12V / 3A · 15V / 3A · 20V / 3.25A
- USB-A output profiles
- 5V / 3A · 9V / 2A · 12V / 1.5A (18W max)
Installation & dimensions
5 details- Wiring method
- Side Wire & Back Wire
- Wire gauge
- #12~#14 AWG Copper Wire
- Pole & wire
- 2-Pole, 3-Wire
- Grounding
- Self-Grounding
- Wall plate

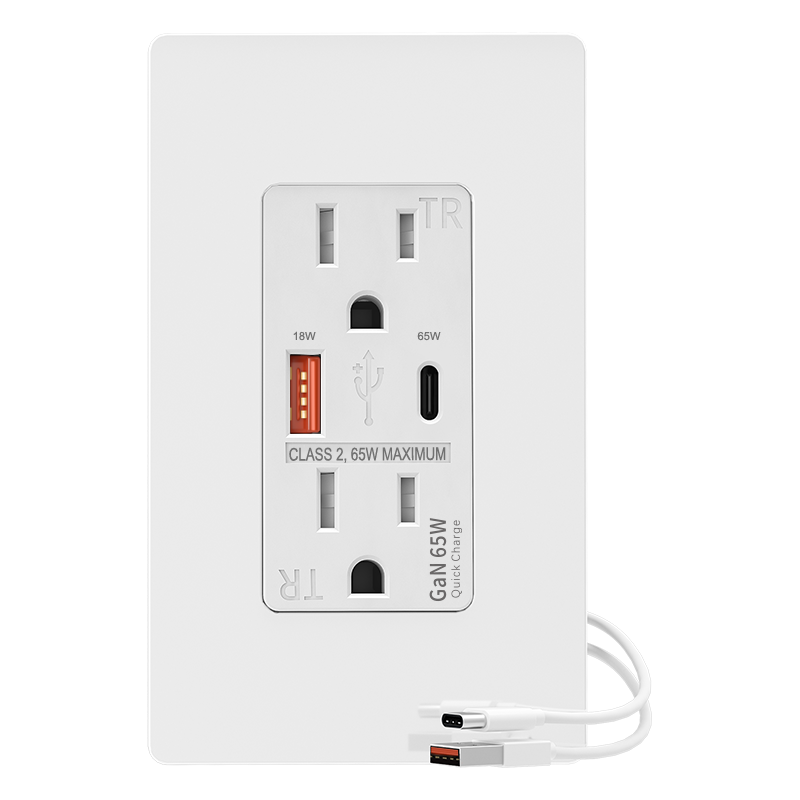

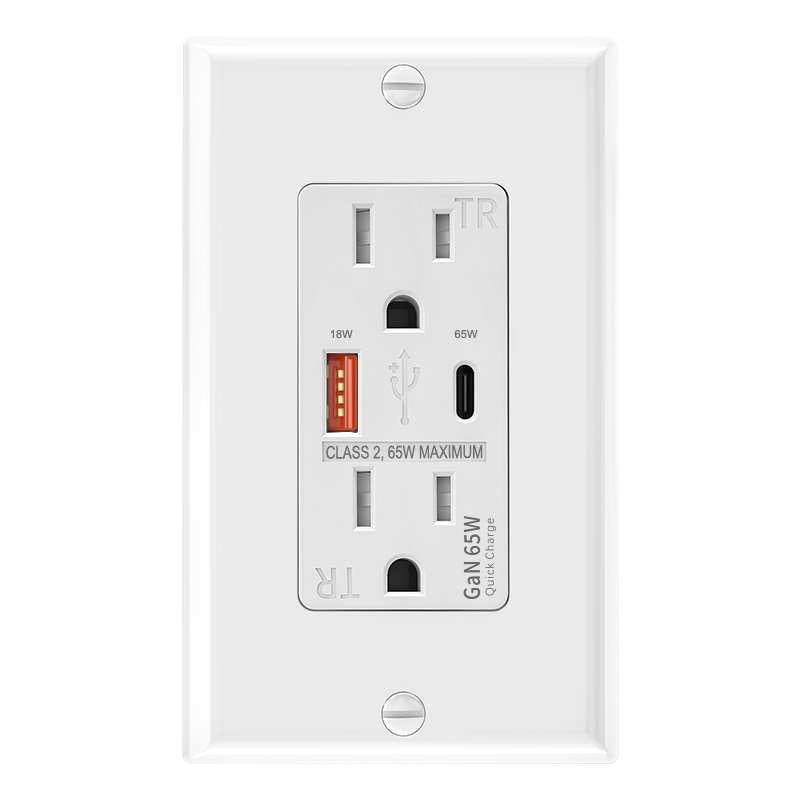

- Standard / Screwless Wallplate Optional
Compliance & application
8 details- Model
- FTR15QC-AC65W
- Source model designation
- FTR15QC PD65W A+C
- Published certification
- UL/CUL
- Standard
- UL498/CSA C22.2 No. 42, 7th Ed
- Application grade
- Residential & Commercial Grade
- Tamper-resistant
- Yes
- Weather-resistant
- No
- Warranty
- 3 years
Materials & construction
6 details- Material
- Face, Thermoplastic; Body, Thermoplastic
- Construction detail 2
- 0.8mm thick high-precision phosphorus bronze
- Construction detail 3
- 1.2mm thick galvanized steel bracket
- Construction detail 4
- Silver alloy contacts
- Construction detail 5
- Coated PC board with Smart chip MCU to protect critical components from moisture
- Environmental
- Flammability UL-94 V1 Rating.
Product details
Charging, built into the wall.
Model FTR15QC-AC65W. A closer look at the product and the details that distinguish this configuration.
Receptacle: 15A,125V NEMA 5-15R
Charging: USB-C up to 65W
Interfaces: USB-A + USB-C
Variant: Tamper-resistant
Wiring: Side Wire & Back Wire
Warranty: 3 years
Application review
Power and charging, in the same place.
Workplaces & shared spaces
Select the port layout and charging profile to suit the devices people use.
Before installation
Check the receptacle rating, available wall-box space and local installation requirements.
Program configuration
Product, finish and packaging.
Coordinate the exact model, visible finish and customer-branded outer packaging in one approved sample.
- Exact configuration
- Confirm FTR15QC-AC65W, its finish and any included wall plate on the quotation.
- Custom outer packaging
- Customer-branded boxes can be reviewed with your artwork and brand authorization.
- Packing quantities
- Inner-box and carton quantities are confirmed for the selected model and packaging format.

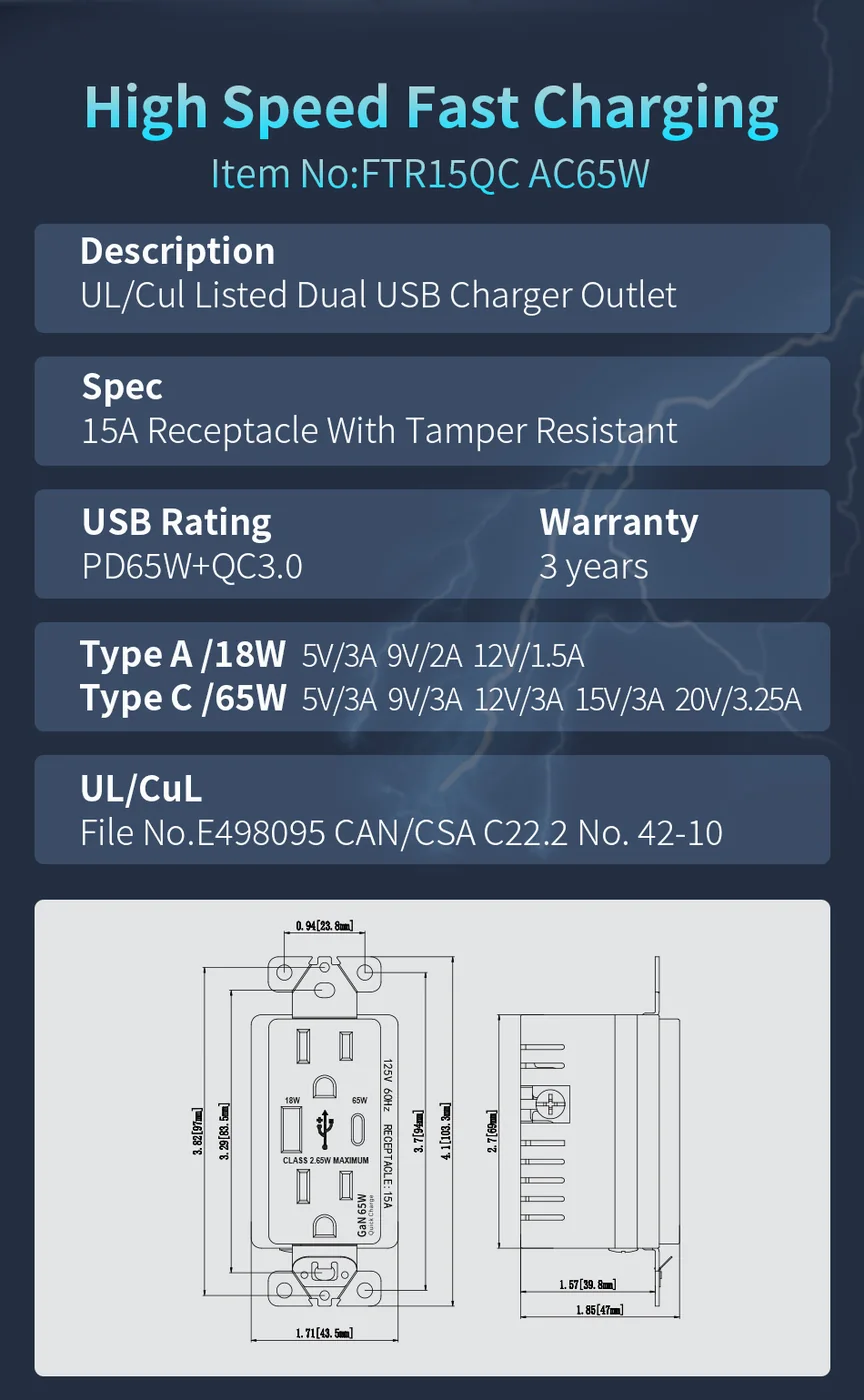

Dimensional reference
Dimensions,
clearly drawn.
Three clear views of FTR15QC-AC65W. Key measurements from the original model drawing, with room to read every detail.
FTR15QC-AC65WDimensions in millimeters · mm
Front view
Overall height includes the mounting tabs.
Mounting centers
Hole spacing is measured center to center.
Side profile
Recessed body depth above · total depth below.
Source documentation
Details your team can review.
Supplier-published reference: UL/CUL · file E498095
No matching certificate PDF for FTR15QC-AC65W is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
