Wiring first
Neutral-required and single-live-wire models are separate configurations. Check the existing wiring before selection.
Model UST8841
US 4-gang switching · Touch only
UST8841: 4-gang switching in a US-format glass touch panel. Touch only; single live wire. 110–240V AC · 50/60Hz.
Key specifications
- Format
- US glass panel
- Control
- Touch only
- Wiring
- Single live wire
- Supply
- 110–240V AC · 50/60Hz
Model-specific documentation available on request
Model data
Technical specifications.
Key values first, with the complete specification grouped below for faster review.
- Format
- US glass panel
- Control
- Touch only
- Wiring
- Single live wire
- Supply
- 110–240V AC · 50/60Hz
Complete model specification
Electrical & functional
7 details- Face format
- US glass panel
- Control mode
- Touch only
- Function
- 4-gang switching
- Operating voltage
- 110–240V AC · 50/60Hz
- Published load
- 1200W / gang (catalogue rating; confirm load type)
- Face material
- Tempered glass
- Available face colors
- White · Black · Gold · Grey
Installation & dimensions
2 details- Number of switched gangs
- 4
- Wiring requirement
- Single live wire
Compliance & application
2 details- Model
- UST8841
- Source model designation
- UST8841
Product details
Every angle.
One considered design.
UST8841 — front, profile and rear views from the product library.

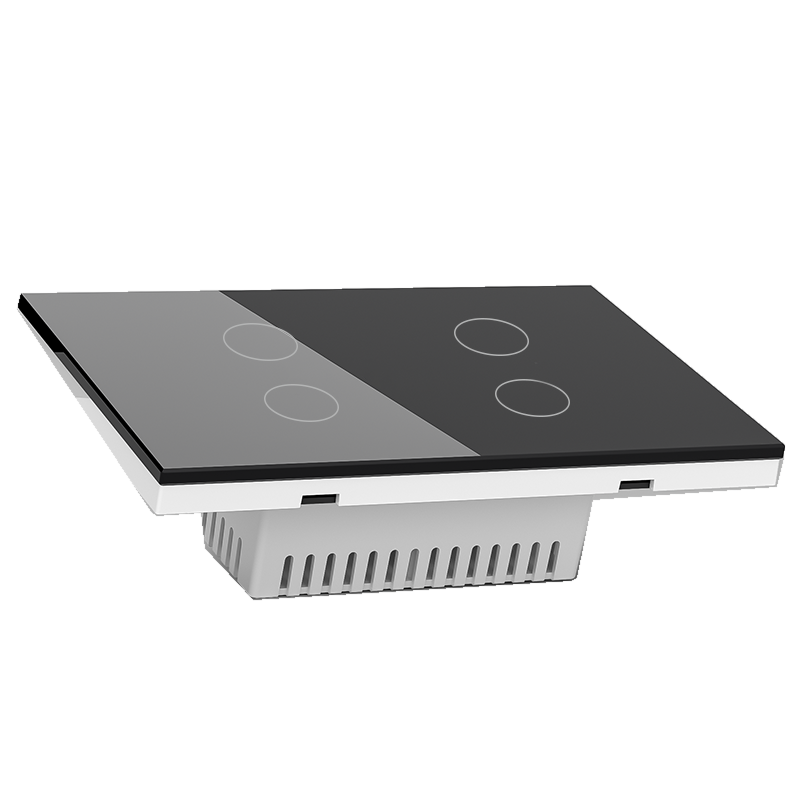

Glass face
Tempered glass panel and model-specific touch controls.

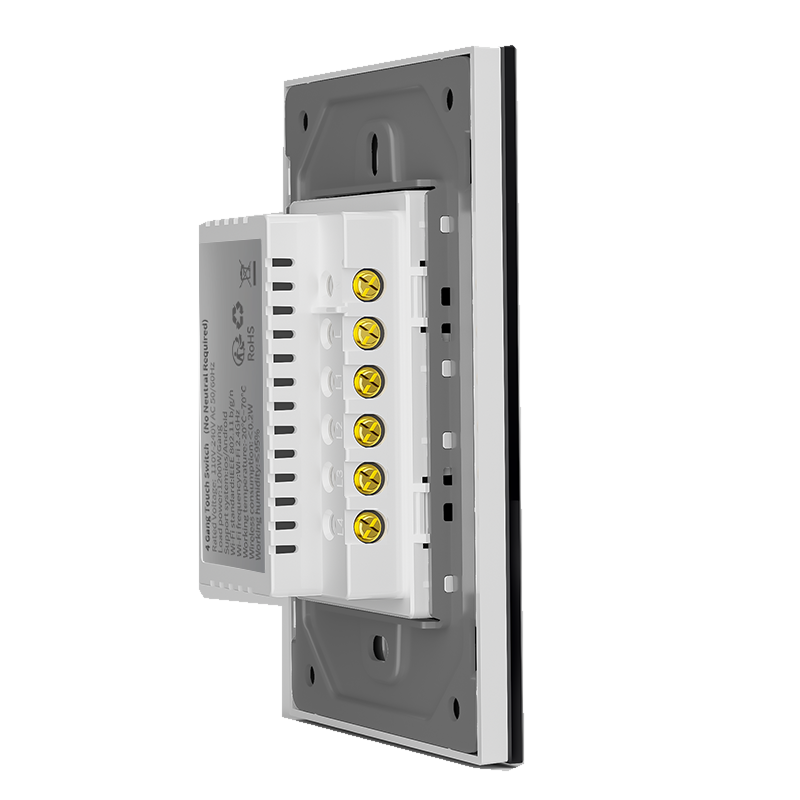

Side profile
A closer look at the face edge and rear housing.

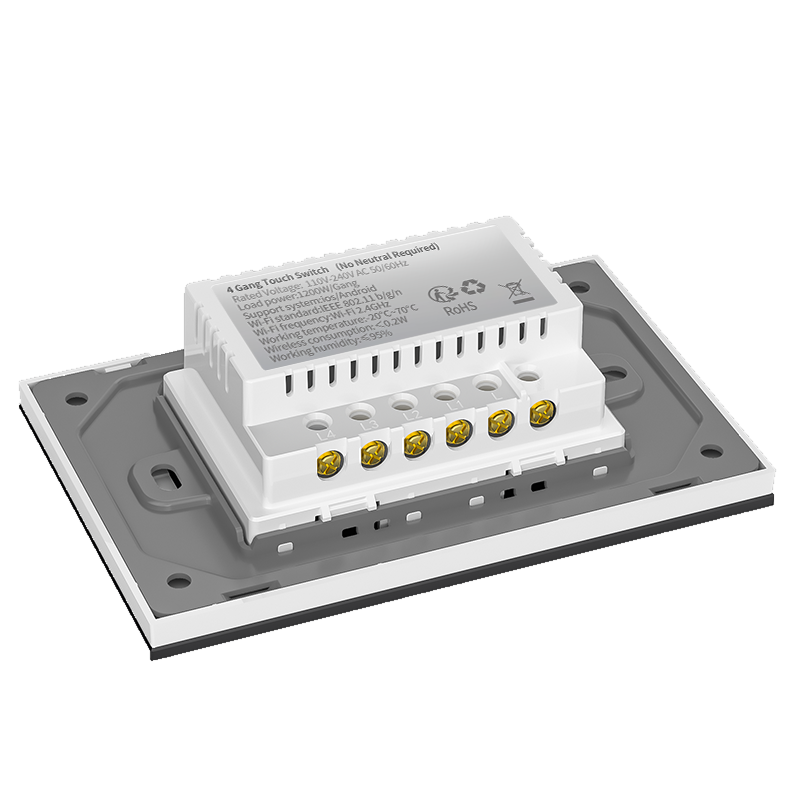

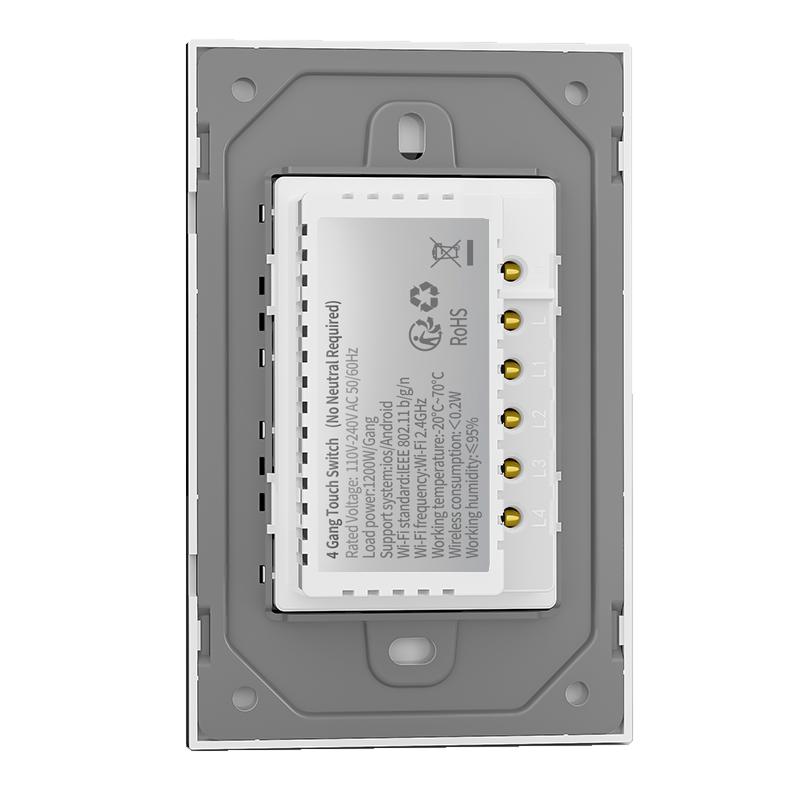

Rear housing
Review the terminal layout and the model label.
Application review
Match the network and the wiring.
Control system
Select Wi-Fi, Zigbee or touch-only control as specified for this exact model. Zigbee models require a compatible gateway.
Load & format
Check the published load limits, number of controls and US or EU face format before ordering.
Program configuration
Product, finish and packaging.
Coordinate the exact model, visible finish and customer-branded outer packaging in one approved sample.
- Exact configuration
- Confirm UST8841, its finish and any included wall plate on the quotation.
- Custom outer packaging
- Customer-branded boxes can be reviewed with your artwork and brand authorization.
- Packing quantities
- Inner-box and carton quantities are confirmed for the selected model and packaging format.
Technical references
Dimensions &
installation reference.
Original library drawings for UST8841. Open either sheet to review it at full resolution.

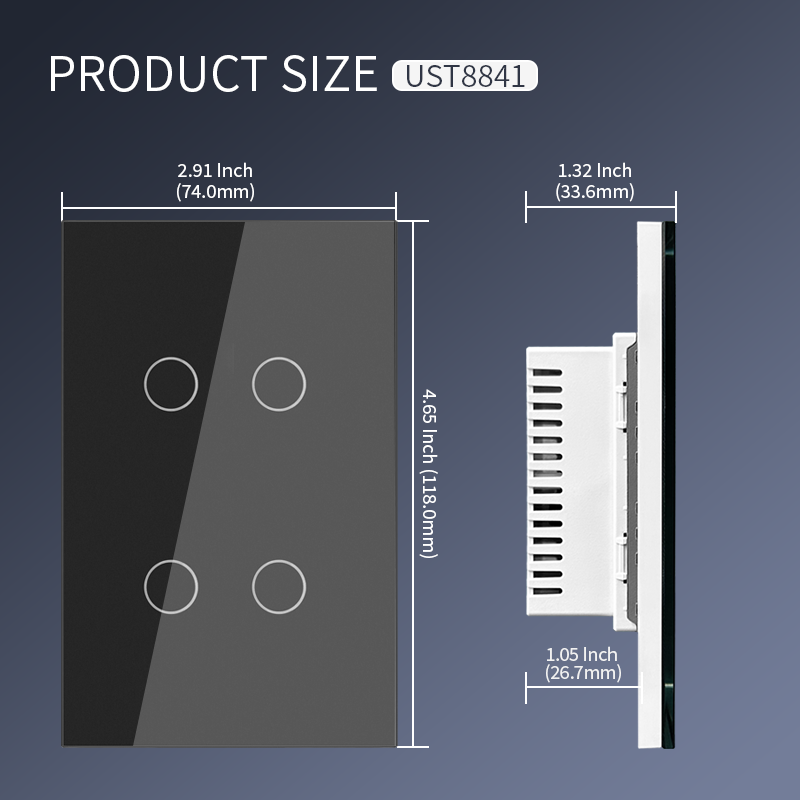

Dimensions
Original face and housing measurements.

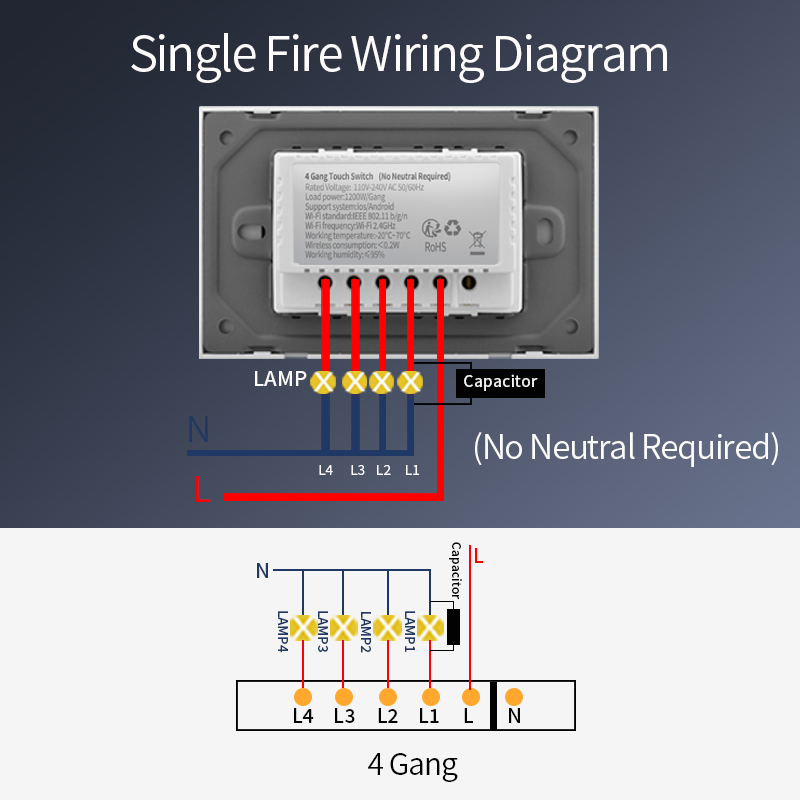

Open dimension sheet Installation & wiring
Single live wire. Library wiring artwork; verify against the supplied device.
Open wiring reference Each sheet is a source reference, not a substitute for the approved installation manual. Confirm the exact model, wiring version, terminal markings and load compatibility before installation.
Source documentation
Details your team can review.
No matching certificate PDF for UST8841 is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
