Model CW15Q
15A TR + WR Commercial Duplex Receptacle
CW15Q: commercial duplex receptacles. Side Wire / Push-In Quick Wire · 15A 125V AC.
Key specifications
- Rating
- 15A 125V AC
- Configuration
- 5-15R
- Variant
- TR + WR
- Application
- Residential & Commercial
UL/CUL · file E498095
Model data
Technical specifications.
Key values first, with the complete specification grouped below for faster review.
- Rating
- 15A 125V AC
- Configuration
- 5-15R
- Variant
- TR + WR
- Application
- Residential & Commercial
Complete model specification
Electrical & functional
5 details- Feature
- Duplex Outlet
- Device rating
- 15A 125V AC
- Protection features
- Tamper-Resistant & Weather Resistant
- Dielectric Voltage Withstand
- 1250V
- Push-in terminal conductor
- #14 AWG only · 15A push-in terminal
Installation & dimensions
4 details- Wiring method
- Side Wire / Push-In Quick Wire
- NEMA
- 5-15R
- Pole & wire
- 2-Pole, 3 Wire
- Grounding
- Self-Grounding with Extend Cooper Clip
Compliance & application
9 details- Model
- CW15Q
- Source model designation
- CW15Q
- Published certification
- UL/CUL
- Certification file
- E498095
- Application grade
- Residential & Commercial
- Standard
- UL498 16th Edition/CSA C22.2 NO. 42-10
- Tamper-resistant
- Yes
- Weather-resistant
- Yes
- Warranty
- 3 years limited
Materials & construction
6 details- Front Cover/Body
- High-Impact PC-Thermoplastic
- Operation Temperature
- -35 °C~ 70 °C
- Environmental
- Flammability UL-94 V2 Rating
- Yoke
- Zinc-Plated Steel 1.2mm Thick
- Clamps
- Phosphor Bronze 0.8mm Thick
- Terminal Screws
- Plated Steel
Product details
Power, matched to the installation.
Model CW15Q. A closer look at the product and the details that distinguish this configuration.
Rating: 15A 125V AC
Configuration: 5-15R
Variant: TR + WR
Application: Residential & Commercial
Wiring: Side Wire / Push-In Quick Wire
Warranty: 3 years limited
Application review
Choose the face, rating and wiring you need.
Match the installation
Check the listed wiring method, conductor size and enclosure requirements.
Coordinate the finish
Pair the device with a compatible wall plate and the approved project finish.
Program configuration
Product, finish and packaging.
Coordinate the exact model, visible finish and customer-branded outer packaging in one approved sample.
- Exact configuration
- Confirm CW15Q, its finish and any included wall plate on the quotation.
- Custom outer packaging
- Customer-branded boxes can be reviewed with your artwork and brand authorization.
- Packing quantities
- Inner-box and carton quantities are confirmed for the selected model and packaging format.

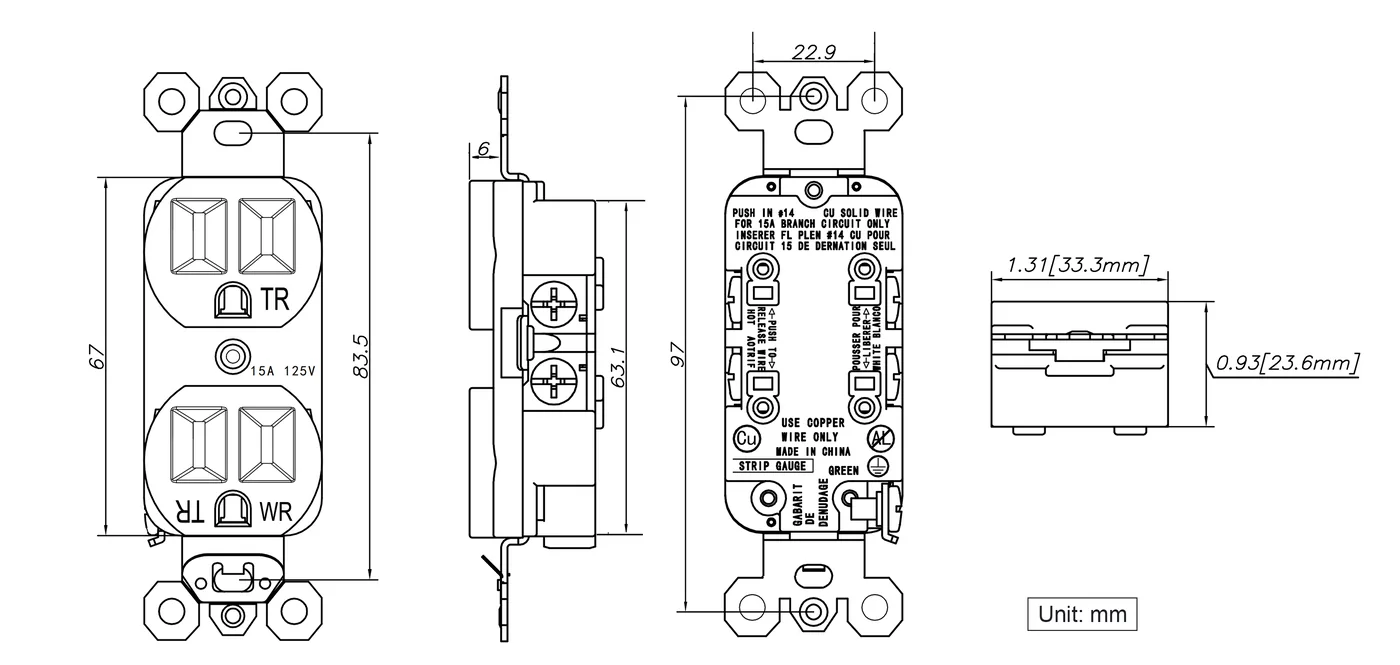

Model reference
Dimensions & installation reference.
Open the supplied reference for a closer look and check its stated scope. Follow the approved installation instructions for the exact model.
Source documentation
Details your team can review.
Supplier-published reference: UL/CUL · file E498095
No matching certificate PDF for CW15Q is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
