Model R20

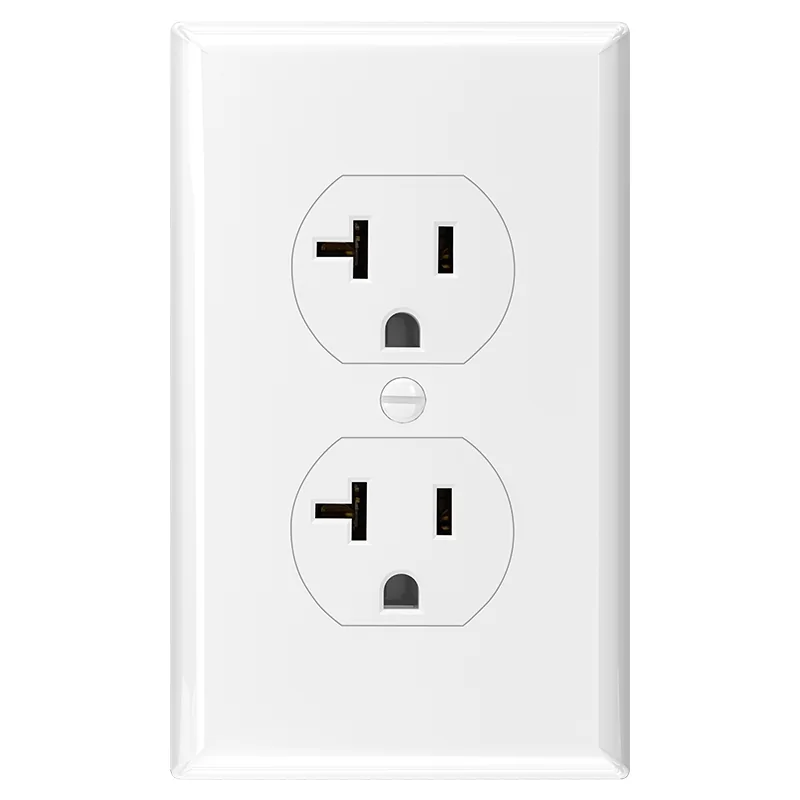

20A Standard Duplex Receptacle
20A, 125V standard duplex receptacle with side wire / back wire. Matte finish; non-TR standard version.
Key specifications
- Rating
- 20A · 125V
- Wiring
- Side Wire / Back Wire
- Variant
- Standard
- Surface
- Matte
Published certification · file E498095
Model data
Technical specifications.
Key values first, with the complete specification grouped below for faster review.
- Rating
- 20A · 125V
- Wiring
- Side Wire / Back Wire
- Variant
- Standard
- Surface
- Matte
Complete model specification
Electrical & functional
4 details- Device rating
- 20A · 125V
- Protection features
- Non Tamper-Resistant
- Surface finish
- Matte
- Mounting centers
- 83.5 mm
Installation & dimensions
4 details- Wiring method
- Side Wire / Back Wire
- Device width
- 33.2 mm
- Overall height
- 106 mm
- Overall depth
- 23.8 mm
Compliance & application
5 details- Model
- R20
- Source model designation
- R20
- Certification file
- E498095
- Tamper-resistant
- No
- Weather-resistant
- No
Product details
Power, matched to the installation.
Model R20. A closer look at the product and the details that distinguish this configuration.
Rating: 20A · 125V
Wiring: Side Wire / Back Wire
Variant: Standard
Surface: Matte
Application review
Choose the face, rating and wiring you need.
Match the installation
Check the listed wiring method, conductor size and enclosure requirements.
Coordinate the finish
Pair the device with a compatible wall plate and the approved project finish.
Program configuration
Product, finish and packaging.
Coordinate the exact model, visible finish and customer-branded outer packaging in one approved sample.
- Exact configuration
- Confirm R20, its finish and any included wall plate on the quotation.
- Custom outer packaging
- Customer-branded boxes can be reviewed with your artwork and brand authorization.
- Packing quantities
- Inner-box and carton quantities are confirmed for the selected model and packaging format.
Model reference
Dimensions & installation reference.
Open the supplied reference for a closer look and check its stated scope. Follow the approved installation instructions for the exact model.
Open full drawing
Open original certificate PDF Source documentation
Details your team can review.
Supplier-published reference: Published certification · file E498095
R20 is named in the supplied December 13, 2021 addendum (report E498095-20211123). Confirm current coverage for the ordered configuration.
Model addenda: PDF pages 2, 4. This supplied document is not a live certification-status check.
