Model DT15
15A TR Decorator Receptacle

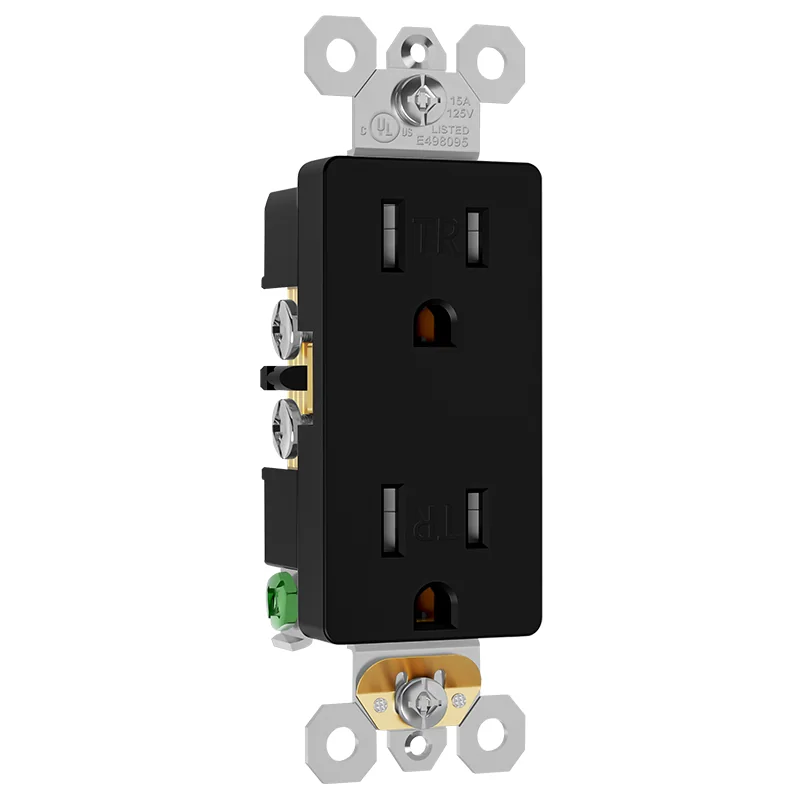

DT15: Tamper-resistant decorator receptacle rated 15A 125V AC. Side Wire / Back Wire.
UL/CUL · file E498095
- Tamper-resistant (TR) design: Built-in mechanical shutters reduce access to the contacts by foreign objects.
- Supplied UL / cUL documentation: file E498095, report E498095-20211123 (December 13, 2021); confirm current coverage for the ordered model. Duplex receptacle: 15A 125V AC, NEMA 5-15R; Residential & Commercial.
- Easy installation: Side Wire / Back Wire; secure terminal connections and mounting for the matching wall plate. Confirm conductor suitability, strip length and torque in the approved model instructions.
- Durable construction: flame-retardant thermoplastic housing, conductive Phosphor Bronze 0.8mm Thick, Zinc-Plated Steel 1.2mm Thick, and Plated Steel.
- Universal Compatibility & Easy Replacement: Fits all standard US wall plates and electrical boxes, ideal for upgrading old outlets, new construction, or retrofitting in homes, offices, hotels, and retail spaces.
- Built-in safety features: Green grounding screw and corrosion-resistant components; follow the exact model installation instructions.
- Strip-gauge markings for conductor preparation.
- Warranty: 3 years limited
- Model certificate
- Product catalogue · page 16
- Product catalogue · page 18

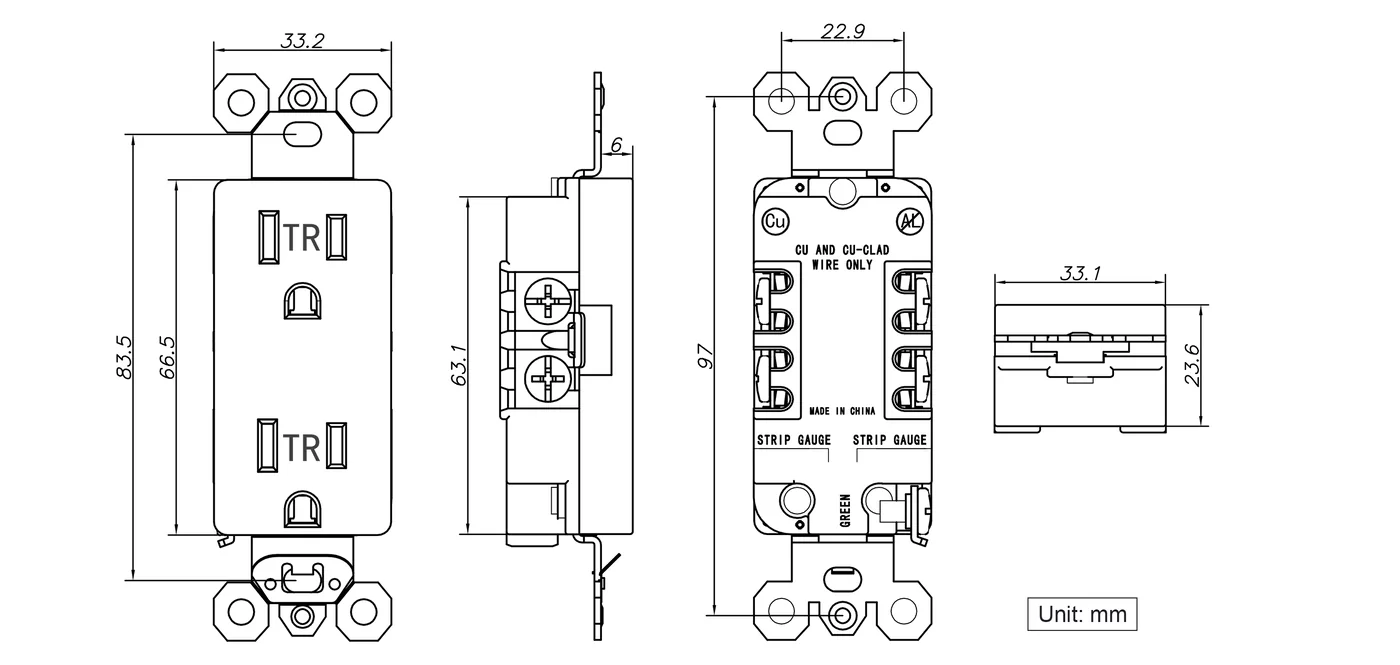

- Dimensions & wiring reference 1
Supplied certificate · E498095 · E498095-20211123 · issued December 13, 2021. Model addenda: PDF pages 2, 4. Confirm current coverage for the selected model.
DT15 is named in the supplied December 13, 2021 addendum (report E498095-20211123). Confirm current coverage for the ordered configuration.
Specification notes
- Wiring versions follow catalogue pages 15–18. The 15A push-in terminal is marked #14 AWG only. Confirm conductor material, solid/stranded suitability, strip length and torque in the approved model instructions; this push-in limit is not a specification for side/back terminals.
Technical Parameters
| Model | DT15 |
|---|---|

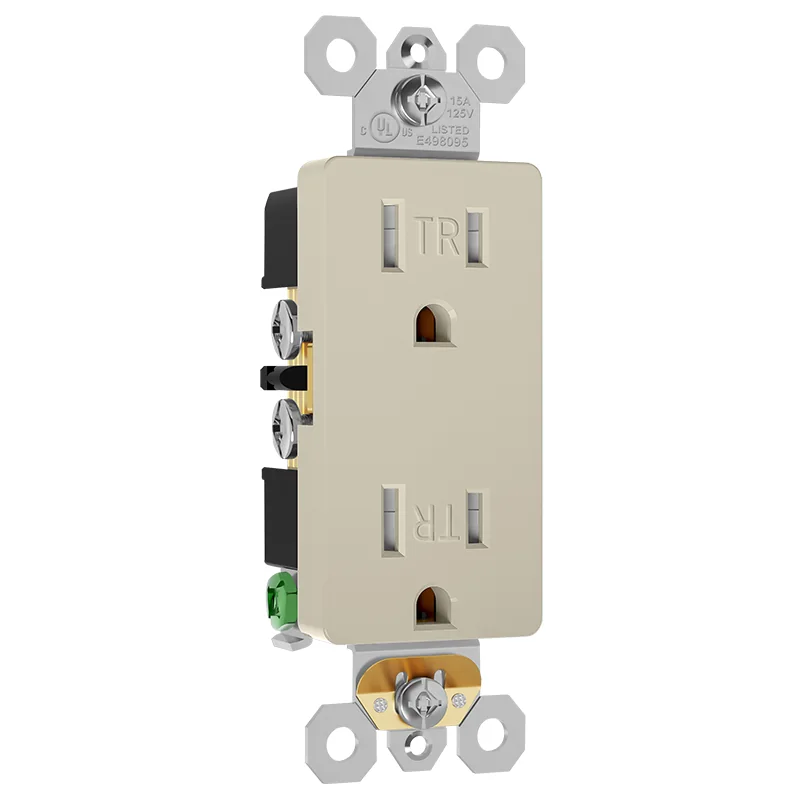

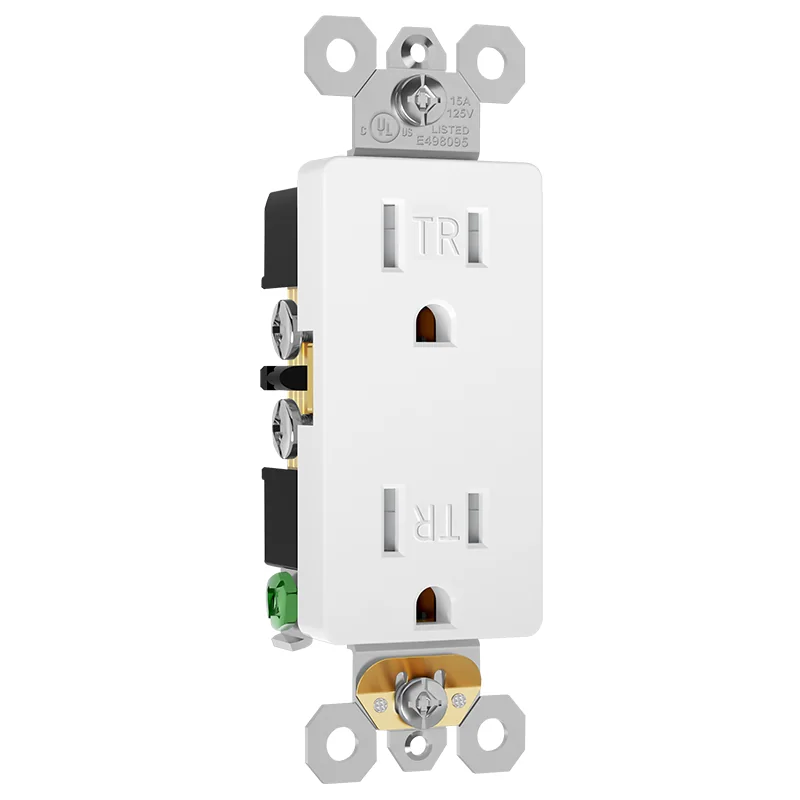

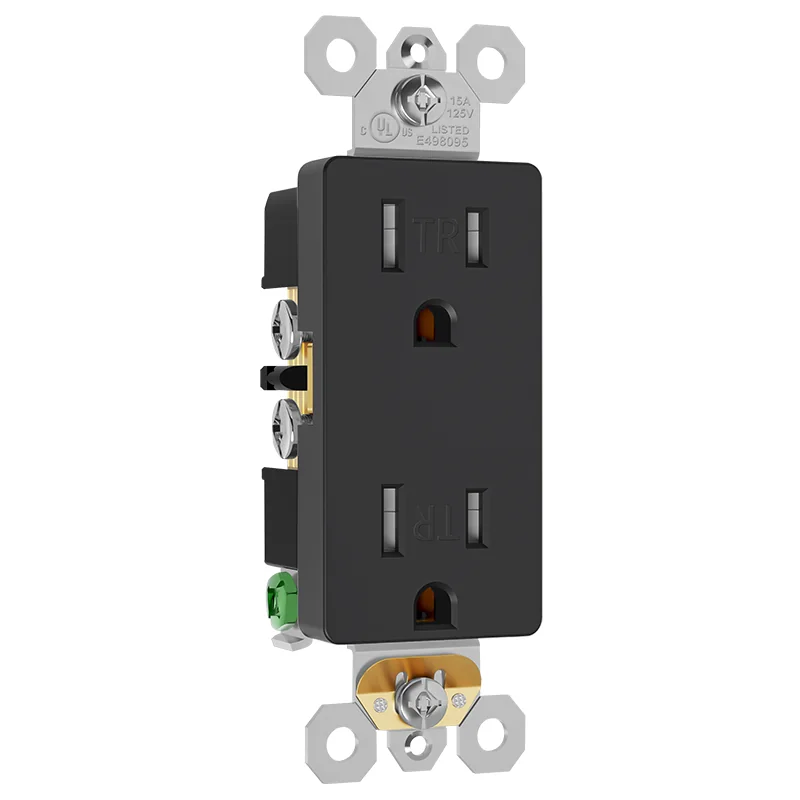

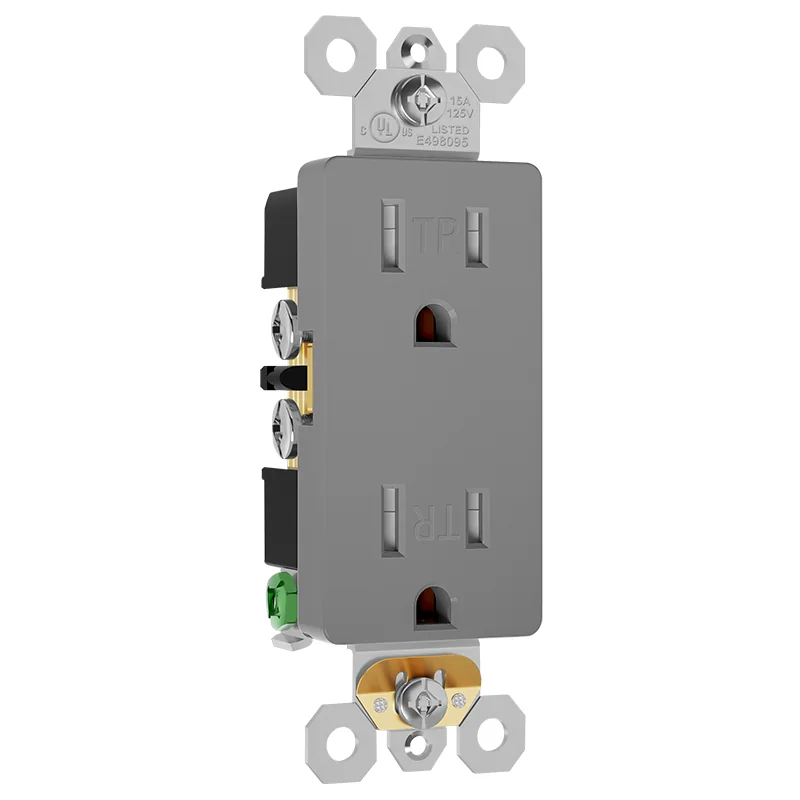

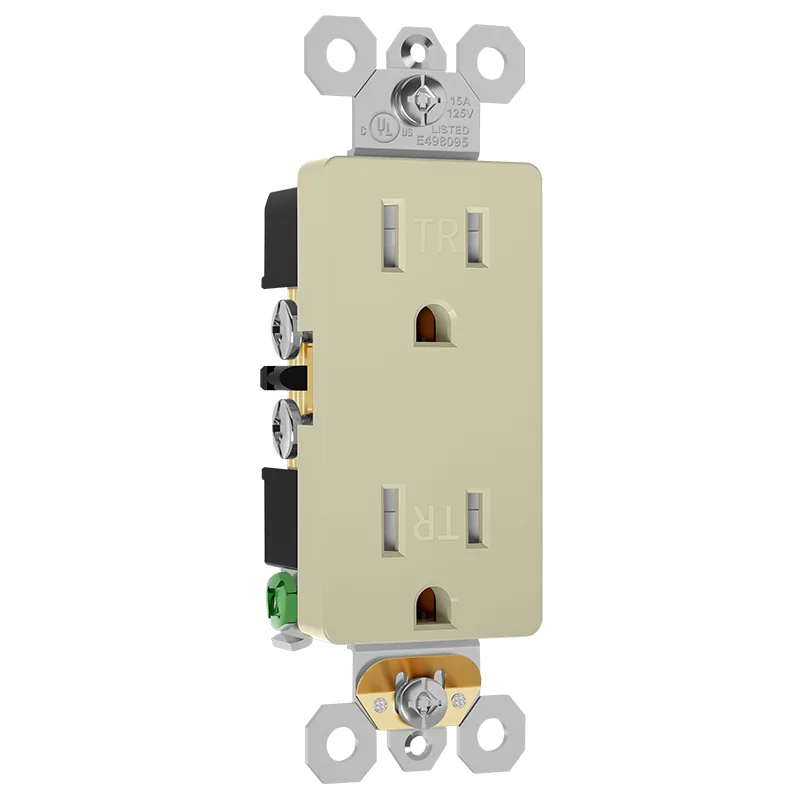

| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Feature | Decorative Outlet |
| Device rating | 15A 125V AC |
| Protection features | Tamper-Resistant |
| Dielectric Voltage Withstand | 1250V |
| Wiring method | Side Wire / Back Wire |
| NEMA | 5-15R |
| Pole & wire | 2-Pole, 3 Wire |
| Grounding | Self-Grounding with Extend Cooper Clip |
| Source model designation | DT15 |
| Published certification | UL/CUL |
| Certification file | E498095 |
| Application grade | Residential & Commercial |
| Standard | UL498 16th Edition/CSA C22.2 NO. 42-10 |
| Tamper-resistant | Yes |
| Weather-resistant | No |
| Warranty | 3 years limited |
| Front Cover/Body | High-Impact PC-Thermoplastic |
| Operation Temperature | -35 °C~ 70 °C |
| Environmental | Flammability UL-94 V2 Rating |
| Yoke | Zinc-Plated Steel 1.2mm Thick |
| Clamps | Phosphor Bronze 0.8mm Thick |
| Terminal Screws | Plated Steel |
