Match the load
Use the voltage, current and configuration published for this exact model.

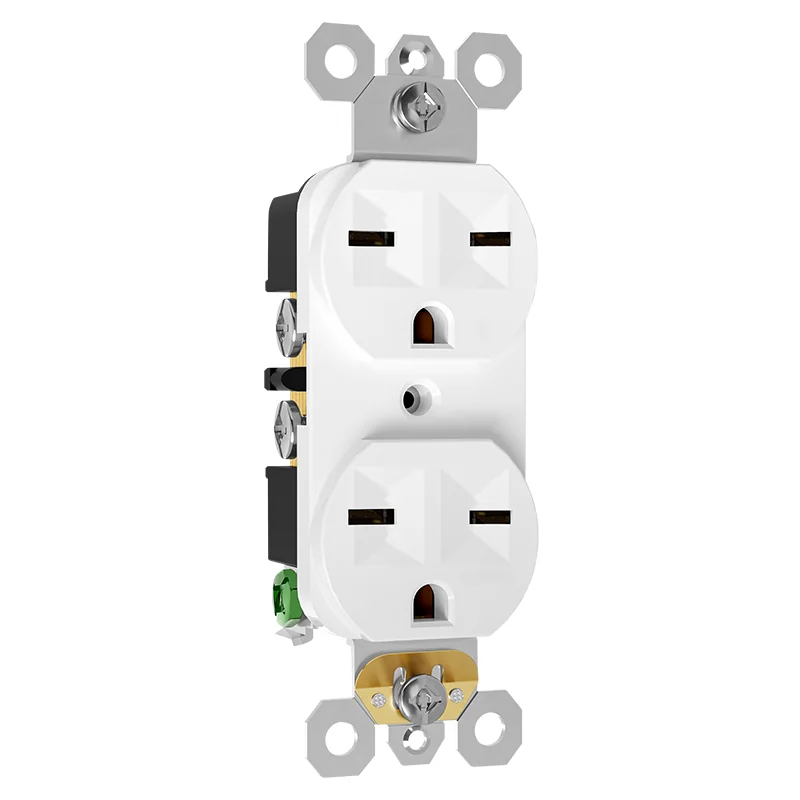

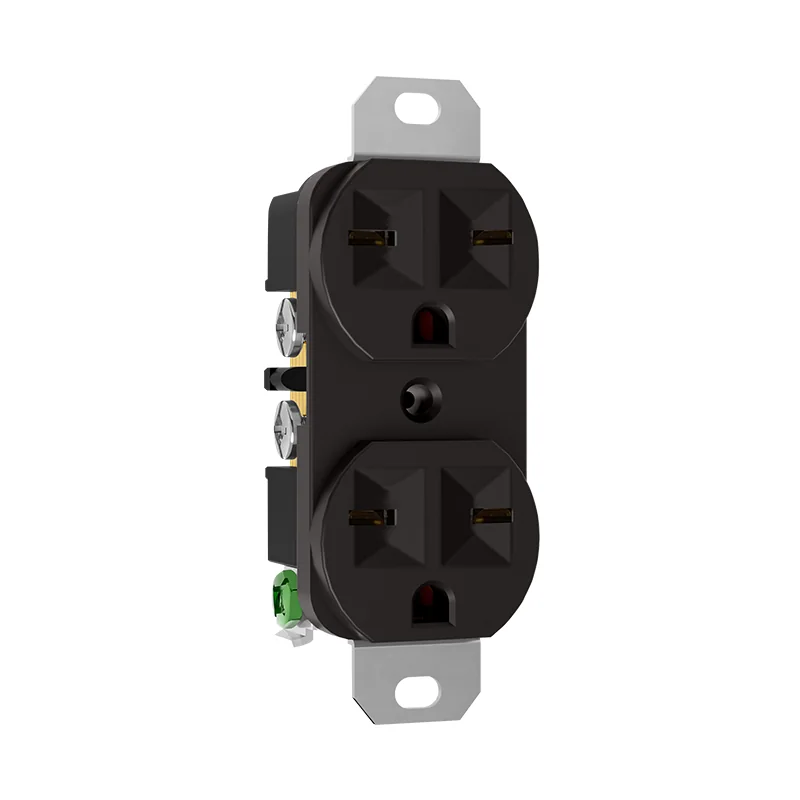

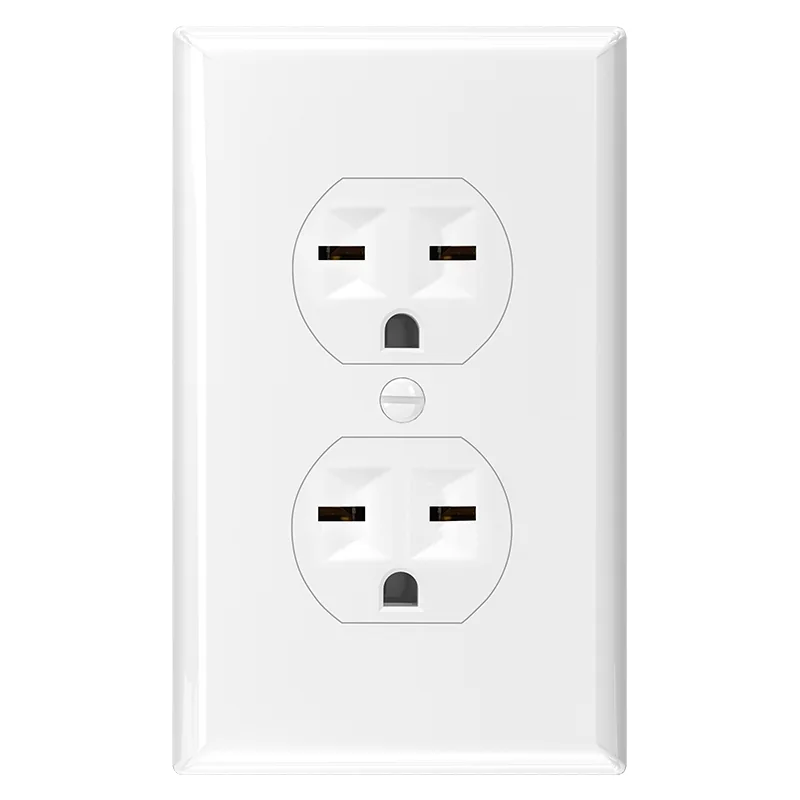

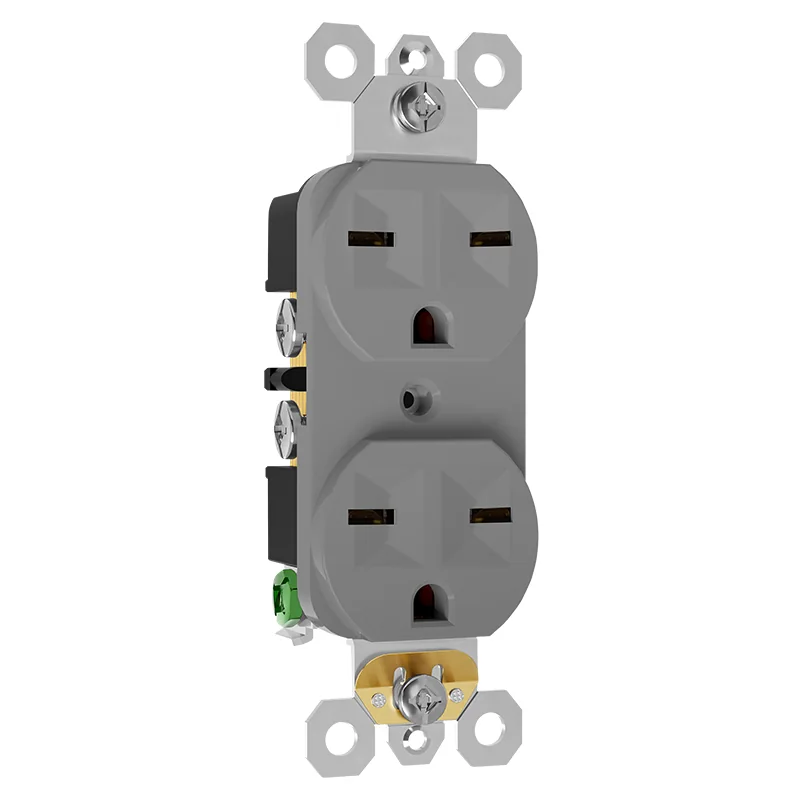

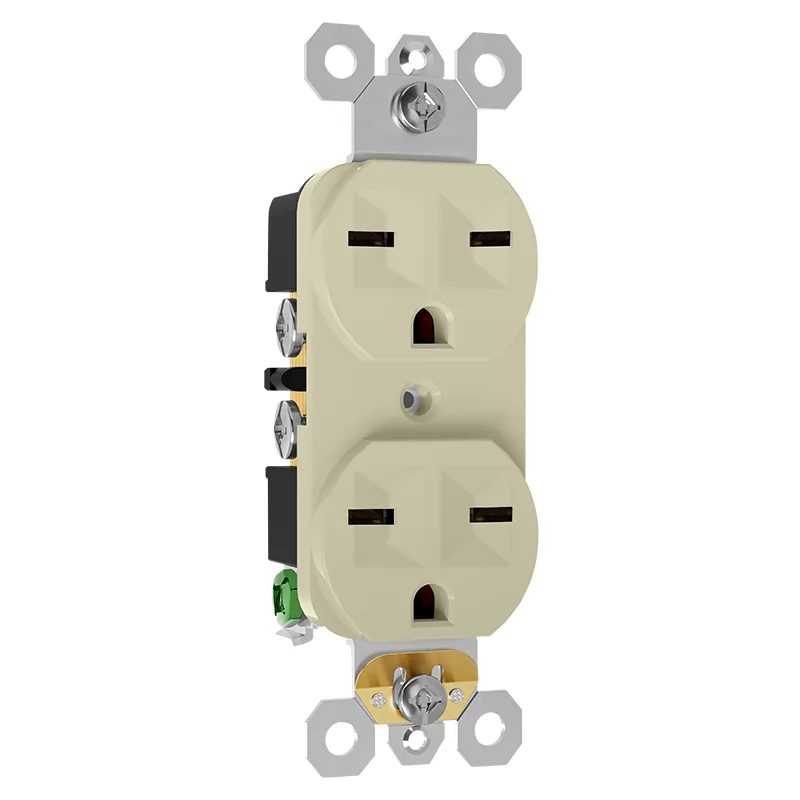

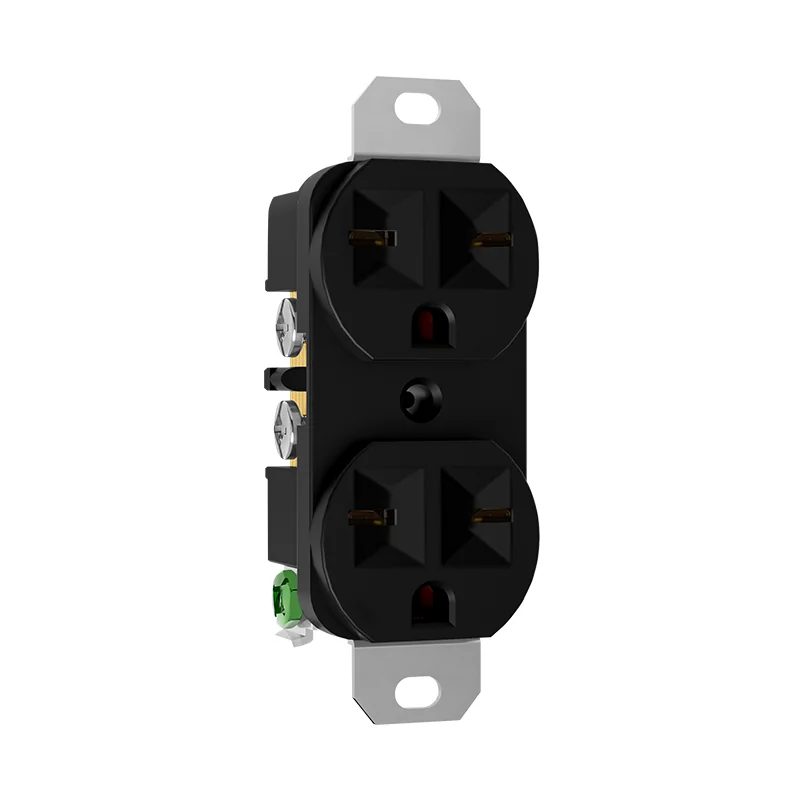

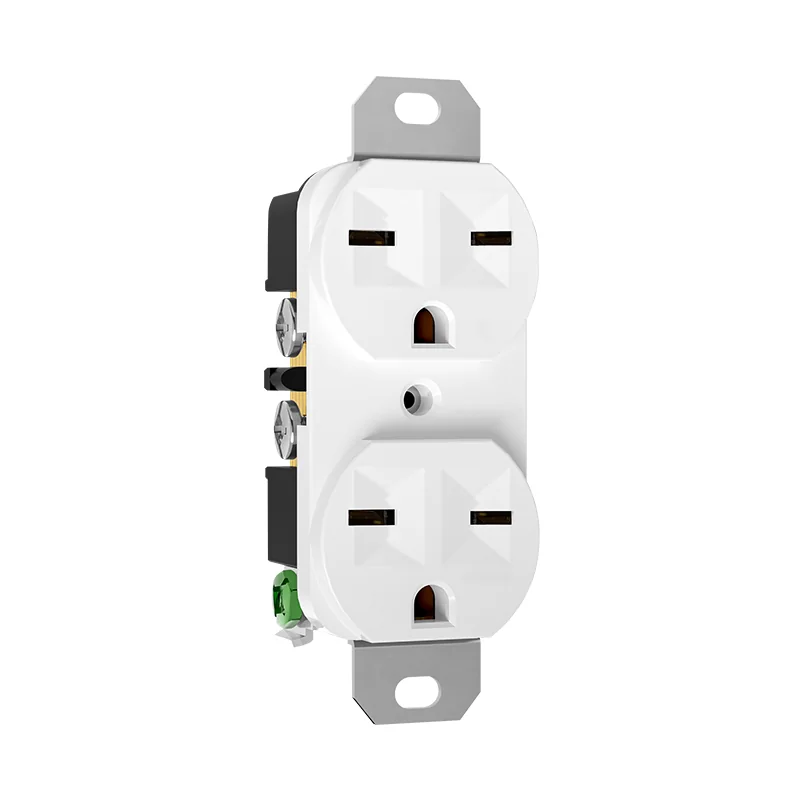

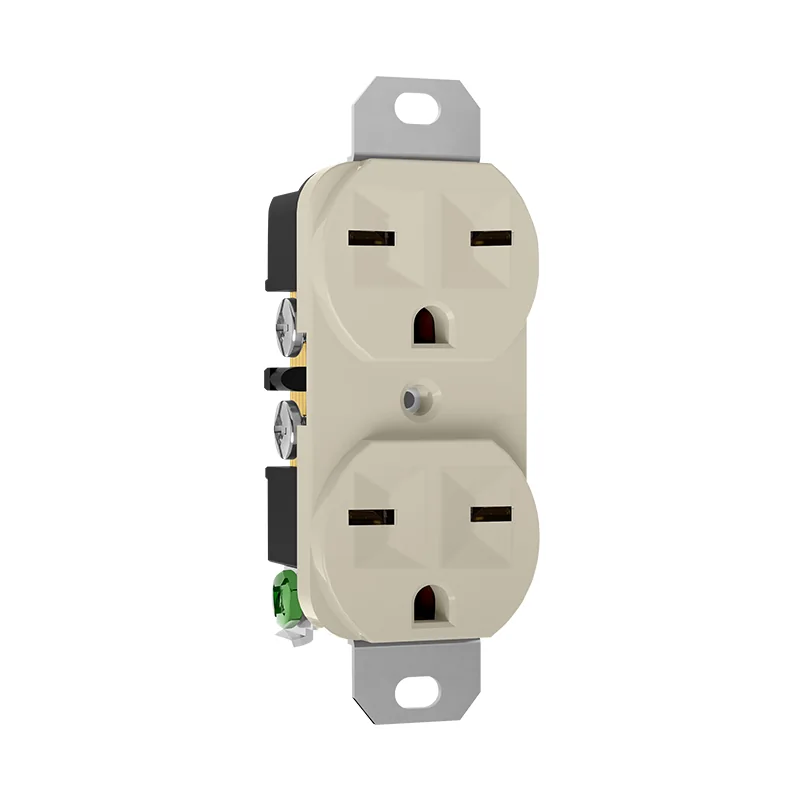

Model CR15
15A Industrial Grade Duplex Receptacle
CR15: industrial grade duplex receptacles. Side Wire / Back Wire · 15A · 125V/250V.
Key specifications
- Rating
- 15A · 125V/250V
- Configuration
- 2-Pole, 3 Wire
- Variant
- Standard
- Application
- Industrial Grade
Model-specific documentation available on request
Model data
Technical specifications.
Key values first, with the complete specification grouped below for faster review.
- Rating
- 15A · 125V/250V
- Configuration
- 2-Pole, 3 Wire
- Variant
- Standard
- Application
- Industrial Grade
Complete model specification
Electrical & functional
5 details- Feature
- Duplex Outlet
- Device rating
- 15A · 125V/250V
- Protection features
- Non Tamper-Resistant
- Dielectric Voltage Withstand
- 1250V
- Plug configuration
- Match the ordered device to its model photograph and approved specification
Installation & dimensions
3 details- Wiring method
- Side Wire / Back Wire
- Pole & wire
- 2-Pole, 3 Wire
- Grounding
- Self-Grounding with Extend Cooper Clip
Compliance & application
7 details- Model
- CR15
- Source model designation
- CR15
- Application grade
- Industrial Grade
- Standard
- UL498 16th Edition/CSA C22.2 NO. 42-10
- Tamper-resistant
- No
- Weather-resistant
- No
- Warranty
- 3 years limited
Materials & construction
6 details- Front Cover/Body
- High-Impact PC-Thermoplastic
- Operation Temperature
- -35 °C~ 70 °C
- Environmental
- Flammability UL-94 V2 Rating
- Yoke
- Zinc-Plated Steel 1.2mm Thick
- Clamps
- Phosphor Bronze 0.8mm Thick
- Terminal Screws
- Plated Steel
Product details
Power, matched to the installation.
Model CR15. A closer look at the product and the details that distinguish this configuration.
Rating: 15A · 125V/250V
Configuration: 2-Pole, 3 Wire
Variant: Standard
Application: Industrial Grade
Wiring: Side Wire / Back Wire
Warranty: 3 years limited
Application review
Choose the face, rating and wiring you need.
Match the installation
Check the listed wiring method, conductor size and enclosure requirements.
Coordinate the finish
Pair the device with a compatible wall plate and the approved project finish.
Program configuration
Product, finish and packaging.
Coordinate the exact model, visible finish and customer-branded outer packaging in one approved sample.
- Exact configuration
- Confirm CR15, its finish and any included wall plate on the quotation.
- Custom outer packaging
- Customer-branded boxes can be reviewed with your artwork and brand authorization.
- Packing quantities
- Inner-box and carton quantities are confirmed for the selected model and packaging format.

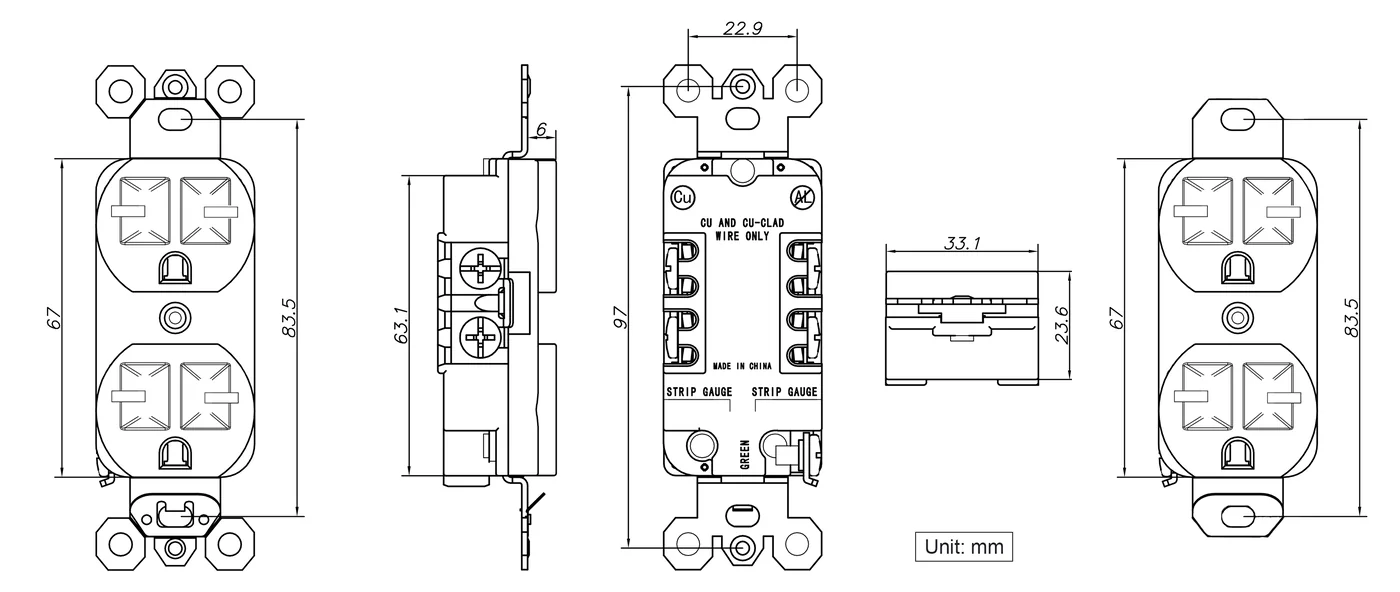

Model reference
Dimensions & installation reference.
Open the supplied reference for a closer look and check its stated scope. Follow the approved installation instructions for the exact model.
Source documentation
Details your team can review.
No matching certificate PDF for CR15 is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
