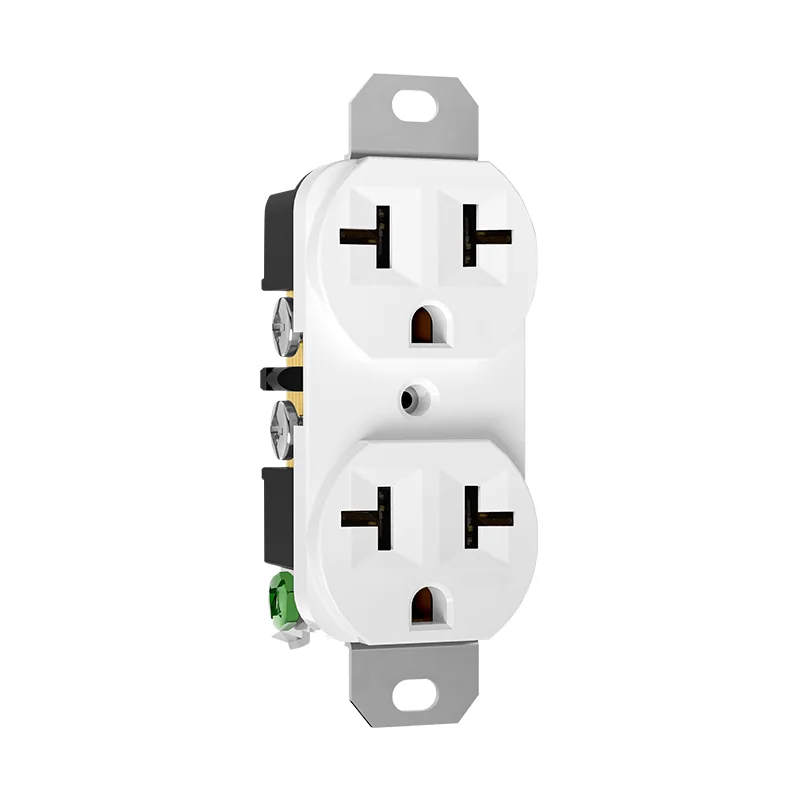

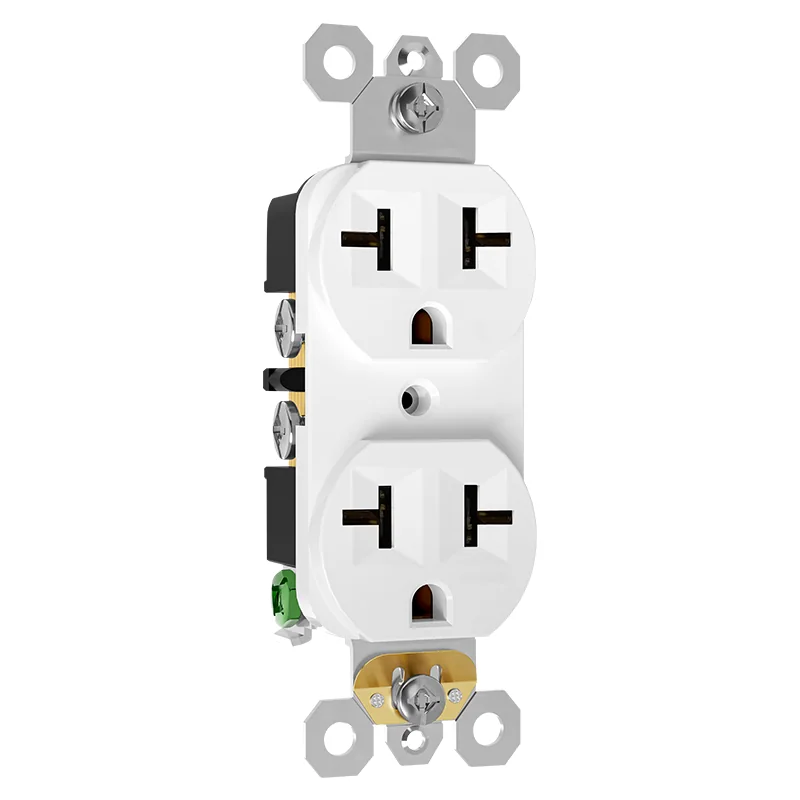

Model CD20
20A Industrial Grade Duplex Receptacle
CD20: Industrial grade duplex receptacle rated 20A · 125V/250V. Side Wire / Back Wire.
Model-specific documentation available on request
- Industrial duplex receptacle: 20A · 125V/250V; match the plug configuration to the ordered model photograph and approved specification.
- Durable construction: flame-retardant thermoplastic housing, conductive Phosphor Bronze 0.8mm Thick, Zinc-Plated Steel 1.2mm Thick, and Plated Steel. Request model test data for oxidation resistance.

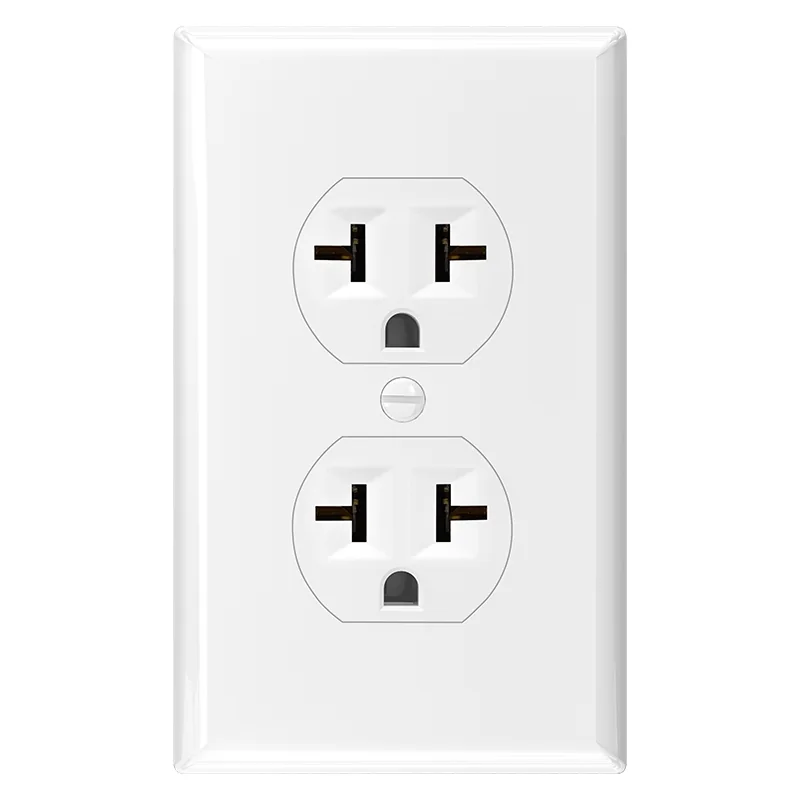

- Easy installation: Side Wire / Back Wire; secure terminal connections and mounting for the matching wall plate. Confirm conductor suitability, strip length and torque in the approved model instructions.
- Versatile Use: Suitable for kitchens, living rooms, garages, offices, and all residential/commercial spaces.
- Warranty: 3 years limited
No matching certificate PDF for CD20 is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
Specification notes
- Rating and industrial grade follow catalogue page 17. The printed 125V/250V rating does not establish interchangeable plug configurations; confirm the required configuration for the order. Legacy NEMA descriptions are not used as the selection specification.
- Wiring versions follow catalogue pages 15–18. The 15A push-in terminal is marked #14 AWG only. Confirm conductor material, solid/stranded suitability, strip length and torque in the approved model instructions; this push-in limit is not a specification for side/back terminals.
Technical Parameters
| Model | CD20 |
|---|---|

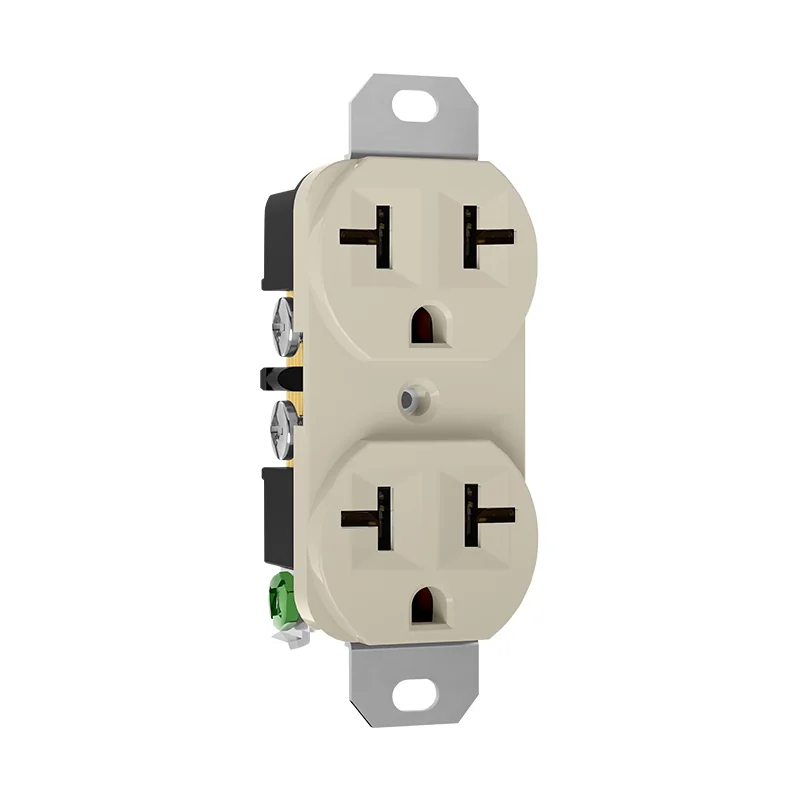

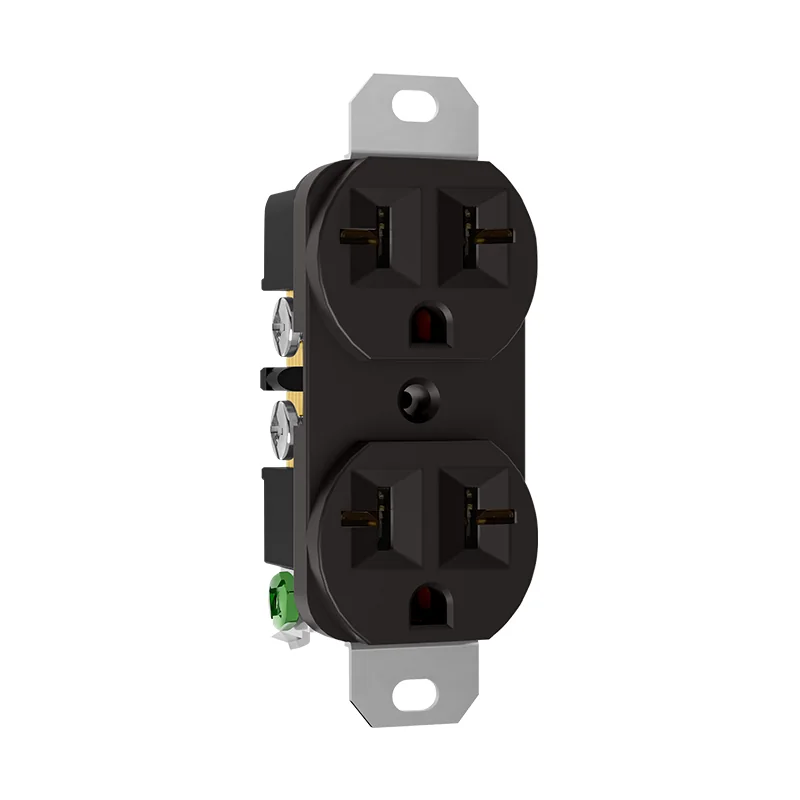

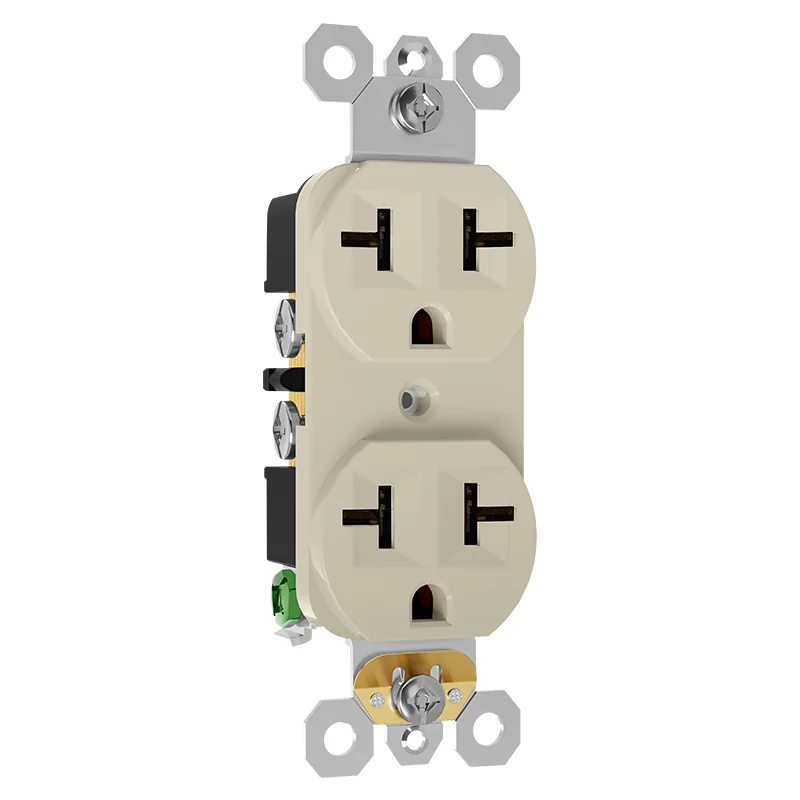

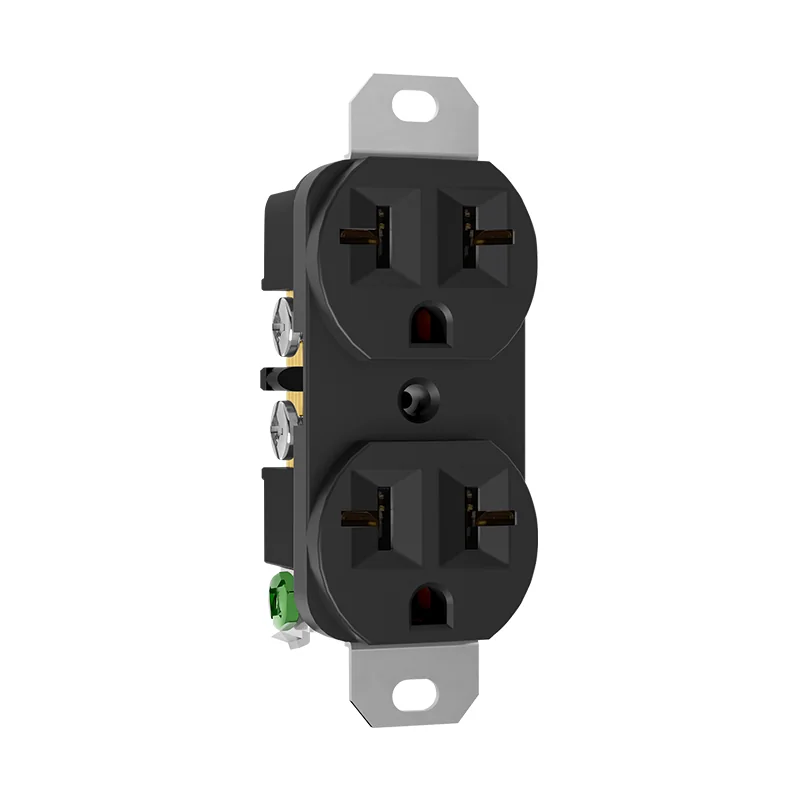

| Available finishes | White / Ivory / Light Almond / Black / Grey / Brown / Graphite |
| Feature | Duplex Outlet |
| Device rating | 20A · 125V/250V |
| Protection features | Non Tamper-Resistant |
| Dielectric Voltage Withstand | 2000VAC |
| Plug configuration | Match the ordered device to its model photograph and approved specification |
| Wiring method | Side Wire / Back Wire |
| Pole & wire | 2-Pole, 3 Wire |
| Grounding | Self-Grounding with Extend Cooper Clip |
| Source model designation | CD20 |
| Application grade | Industrial Grade |
| Standard | UL498 16th Edition/CSA C22.2 NO. 42-10 |
| Tamper-resistant | No |
| Weather-resistant | No |
| Warranty | 3 years limited |
| Front Cover/Body | High-Impact PC-Thermoplastic |
| Operation Temperature | -35 °C~ 70 °C |
| Environmental | Flammability UL-94 V2 Rating |
| Yoke | Zinc-Plated Steel 1.2mm Thick |
| Clamps | Phosphor Bronze 0.8mm Thick |
| Terminal Screws | Plated Steel |
