Circuit configuration
Select single-pole or multi-location control from the model specification.

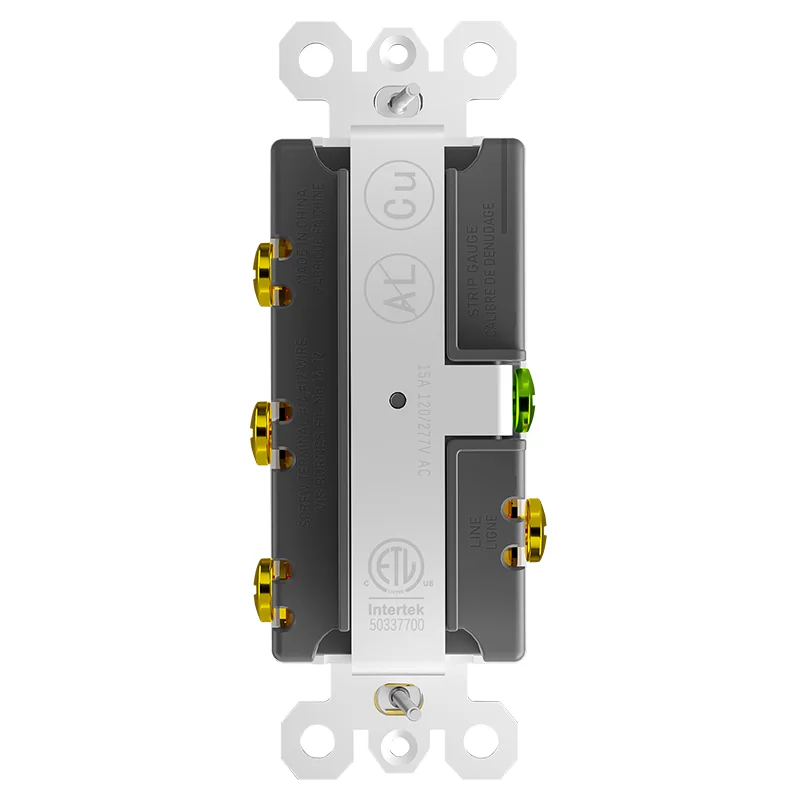

Model DS1503
15A Triple Paddle Combination Switch
15A 120/277V AC. 3 single-pole rockers control with back wire & side wire. ETL is the certification identified on the original model page.
Key specifications
- Rating
- 15A 120/277V AC
- Circuit
- 3 single-pole rockers
- Wiring
- Back Wire & Side Wire
- Published certification
- ETL
ETL · file E5033770
Model data
Technical specifications.
Key values first, with the complete specification grouped below for faster review.
- Rating
- 15A 120/277V AC
- Circuit
- 3 single-pole rockers
- Wiring
- Back Wire & Side Wire
- Published certification
- ETL
Complete model specification
Electrical & functional
4 details- Feature
- Rocker Switch

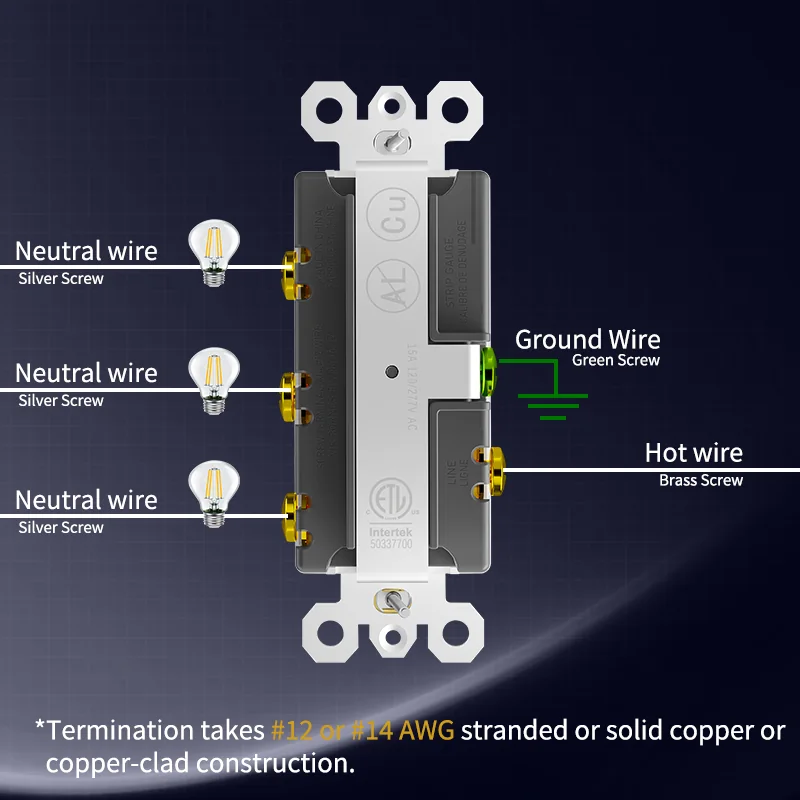

- Terminal accommodation
- #12 and #14 AWG stranded and copper wire
- Device rating
- 15A 120/277V AC
- Mounting type
- Wall Mount
Installation & dimensions

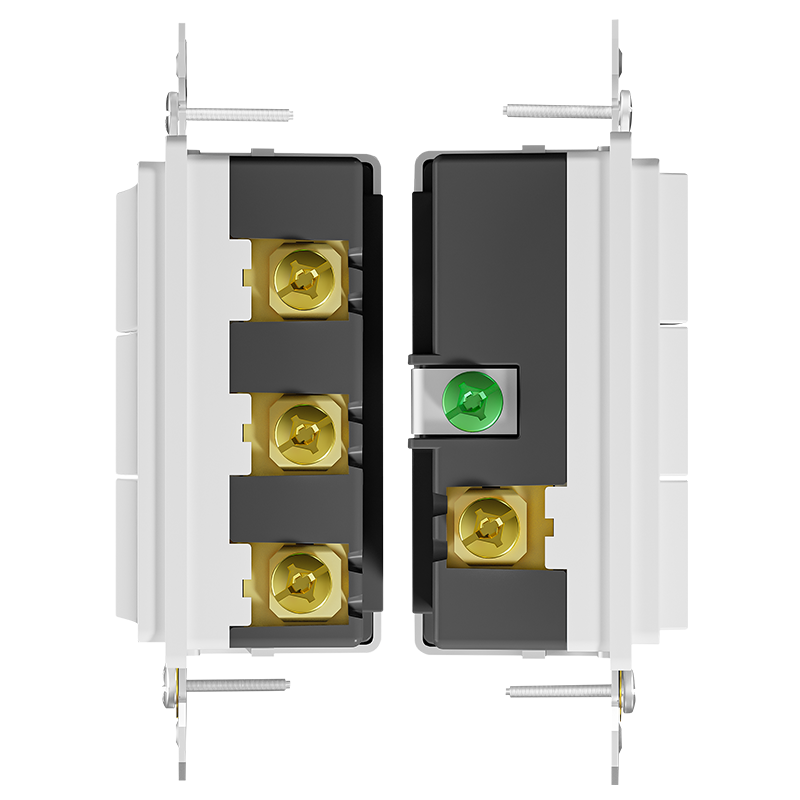

3 details- Wiring method
- Back Wire & Side Wire
- Pole & wire
- 3 Single Pole, 3 Wire
- Grounding
- Self-Grounding with Extend Cooper Clip
Compliance & application
6 details- Model
- DS1503
- Source model designation
- DS1503
- Published certification
- ETL
- Certification file
- E5033770
- Application grade
- Residential & Commercial
- Warranty
- 3 years limited
Materials & construction
6 details- Front Cover/Body
- High-Impact PC-Thermoplastic
- Operation Temperature
- -35 °C~ 70 °C
- Environmental
- Flammability UL-94 V2 Rating
- Yoke
- Zinc-Plated Steel 1.2mm Thick
- Clamps
- Phosphor Bronze 0.8mm Thick
- Terminal Screws
- Plated Steel
Product details
Everyday control, clearly specified.
Model DS1503. A closer look at the product and the details that distinguish this configuration.
Rating: 15A 120/277V AC
Circuit: 3 single-pole rockers
Wiring: Back Wire & Side Wire
Published certification: ETL
Warranty: 3 years limited
Application review
Switching that fits the room and circuit.
Load compatibility
Review the published voltage and load limits before specifying the switch.
Coordinated presentation

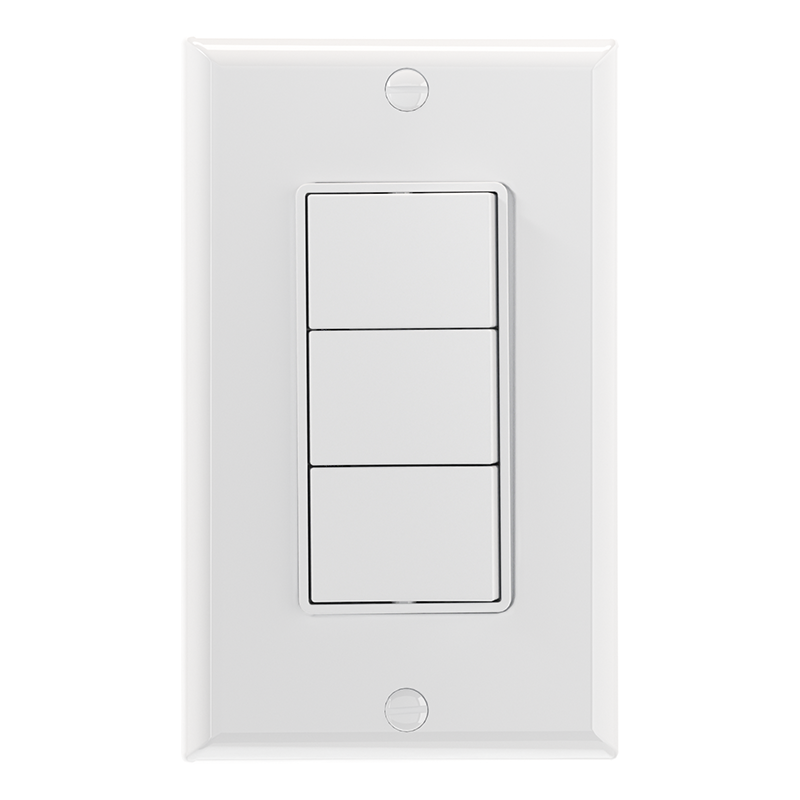

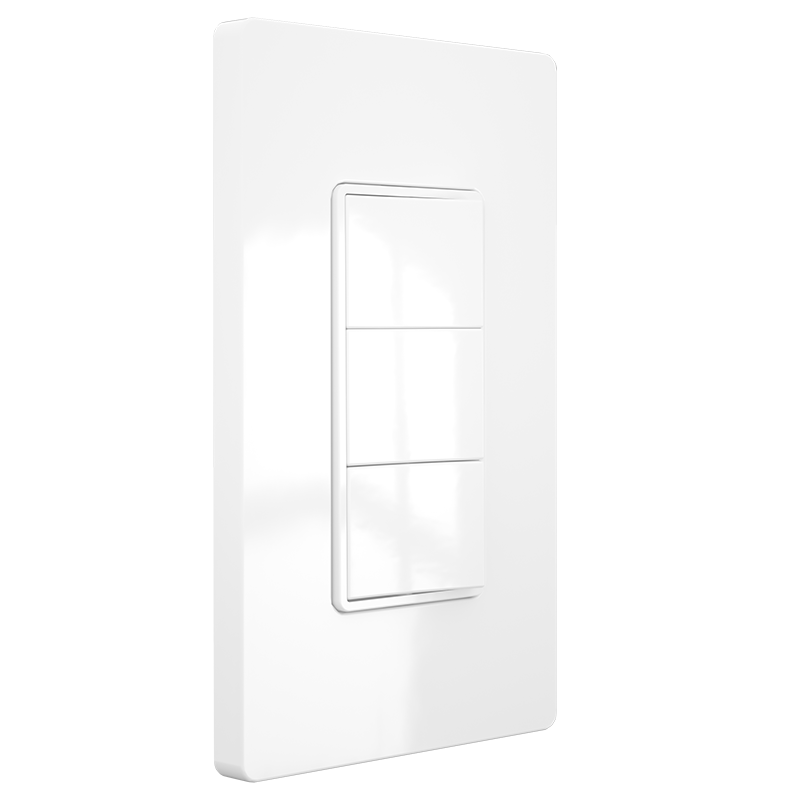

Match the paddle or toggle opening with the correct wall plate.
Program configuration
Product, finish and packaging.
Coordinate the exact model, visible finish and customer-branded outer packaging in one approved sample.
- Exact configuration
- Confirm DS1503, its finish and any included wall plate on the quotation.
- Custom outer packaging
- Customer-branded boxes can be reviewed with your artwork and brand authorization.
- Packing quantities
- Inner-box and carton quantities are confirmed for the selected model and packaging format.
Model reference

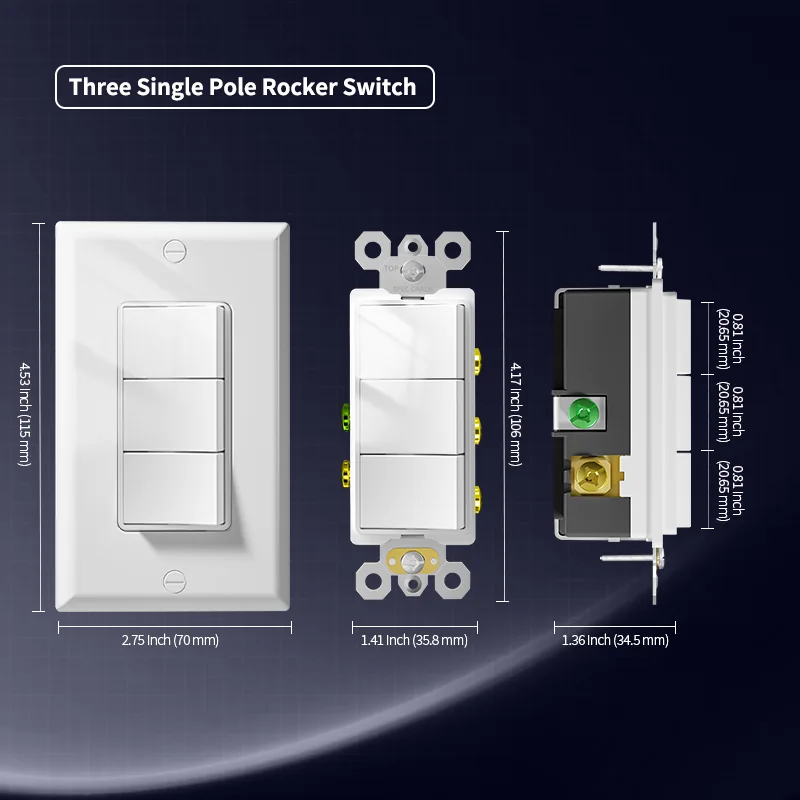

Dimensions & installation reference.
Open the supplied reference for a closer look and check its stated scope. Follow the approved installation instructions for the exact model.
Source documentation
Details your team can review.
Supplier-published reference: ETL · file E5033770
No matching certificate PDF for DS1503 is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
