Control method
Phase dimming and 0–10V control are different systems. Match this model to the lamp or driver.

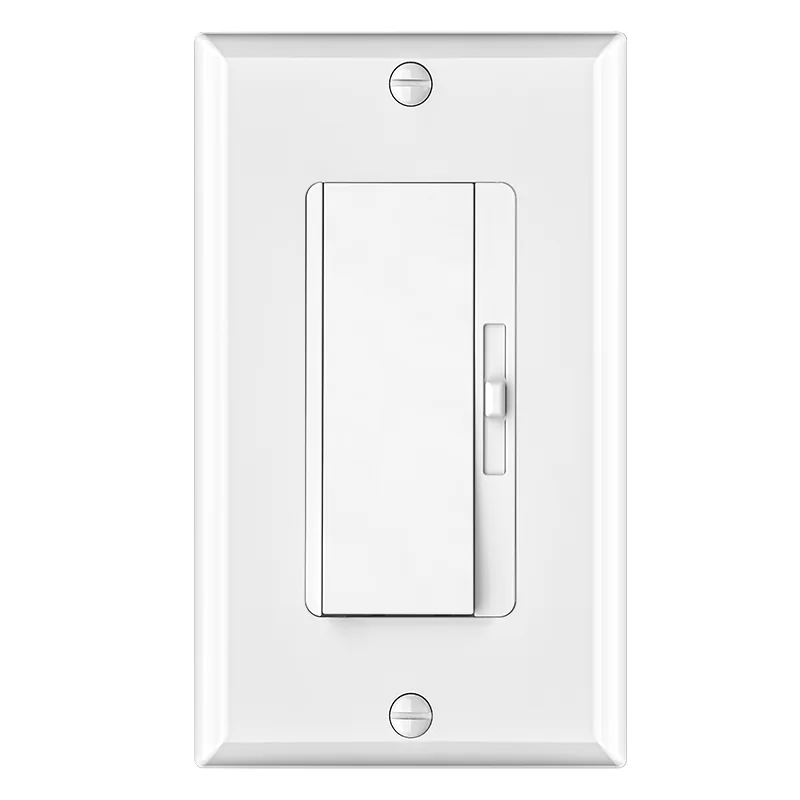

Model DM2010
Digital Slide Dimmer
Paddle on/off switching with a separate brightness slider. For 120V AC, 60Hz circuits, with distinct incandescent and LED/CFL load limits.
Key specifications
- Supply
- 120V AC · 60Hz
- Load
- LED / CFL: 5–200W
- Control
- On/off + slide dimming
- Circuit
- Single-pole / 3-way
UL / cUL marking on model · file E550002
Model data
Technical specifications.
Key values first, with the complete specification grouped below for faster review.
- Supply
- 120V AC · 60Hz
- Load
- LED / CFL: 5–200W
- Control
- On/off + slide dimming
- Circuit
- Single-pole / 3-way
Complete model specification
Electrical & functional
7 details- Operating voltage
- 120V AC · 60Hz
- Current rating
- 5A
- Control method
- On/off slide dimmer
- Incandescent load
- 20–600W
- LED / CFL load
- 5–200W
- Circuit configuration
- Single-pole / 3-way
- Operating temperature
- −20°C to 40°C

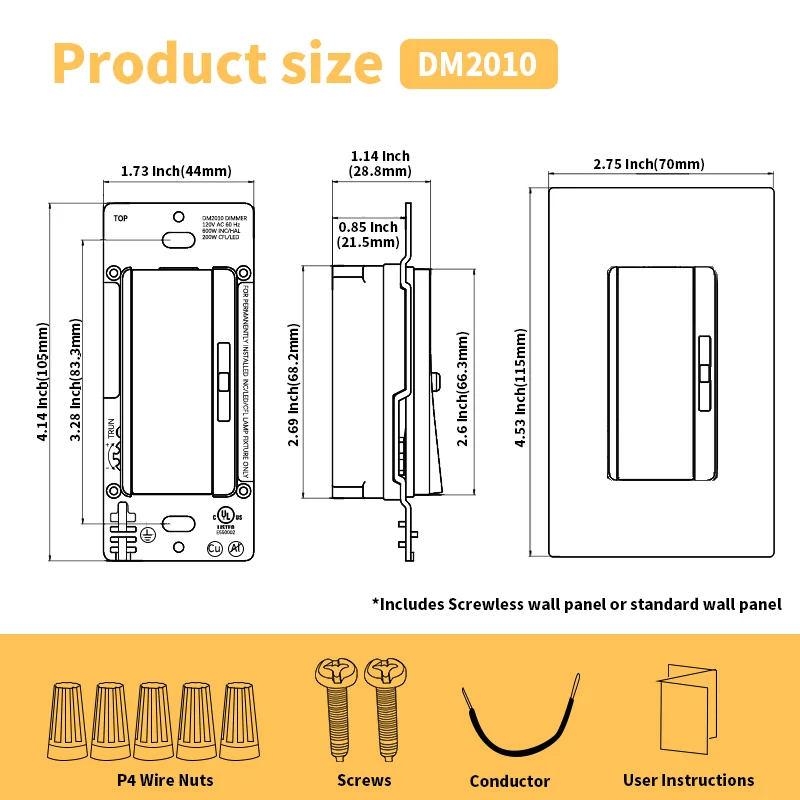

Installation & dimensions
5 details- Device width
- 1.73 in (44 mm)
- Device height
- 4.14 in (105 mm)
- Overall depth
- 1.14 in (28.8 mm)
- Wall-plate face
- 2.75 × 4.53 in (70 × 115 mm)
- Recessed depth
- 21.5 mm
Compliance & application
4 details- Model
- DM2010
- Source model designation
- DM2010
- Published certification
- UL / cUL marking on model
- Certification file
- E550002

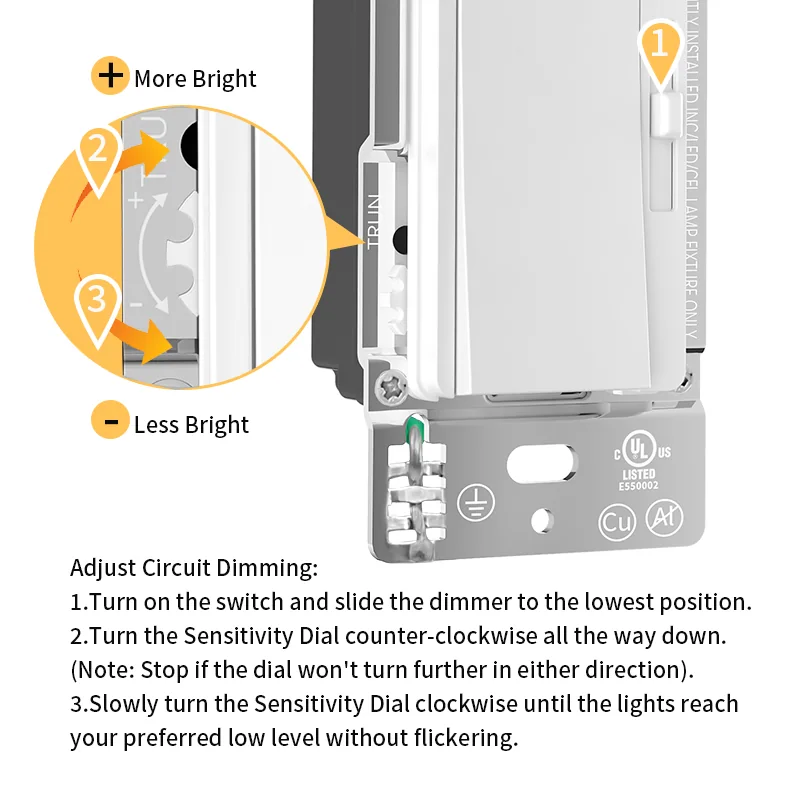

Product details
Lighting control, matched to the load.
Model DM2010. A closer look at the product and the details that distinguish this configuration.
Supply: 120V AC · 60Hz
Load: LED / CFL: 5–200W
Control: On/off + slide dimming
Circuit: Single-pole / 3-way
Application review
Choose the right dimming method.
Load review
Check the separate LED, CFL and incandescent limits where specified. Do not use one load rating for every lamp type.

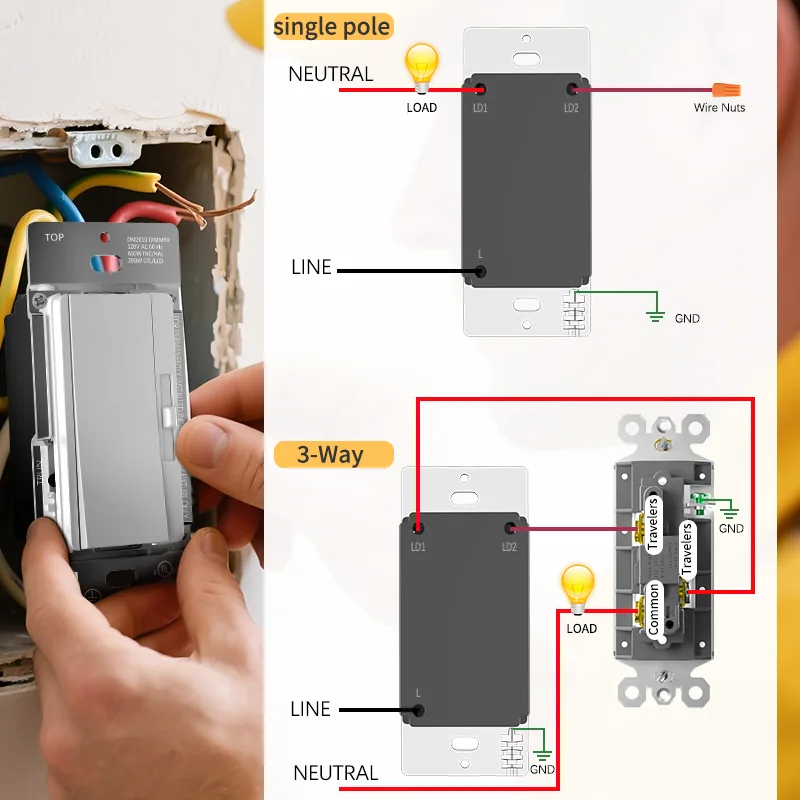

Circuit planning
Confirm the supply, wiring configuration and multi-location requirements with the installer.
Program configuration
Product, finish and packaging.
Coordinate the exact model, visible finish and customer-branded outer packaging in one approved sample.
- Exact configuration

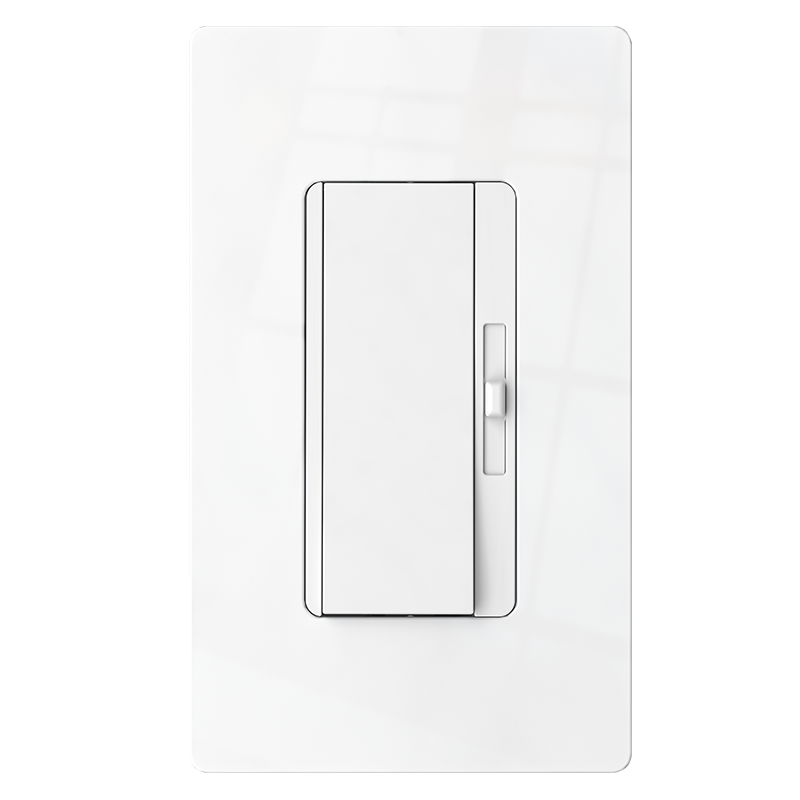

- Confirm DM2010, its finish and any included wall plate on the quotation.

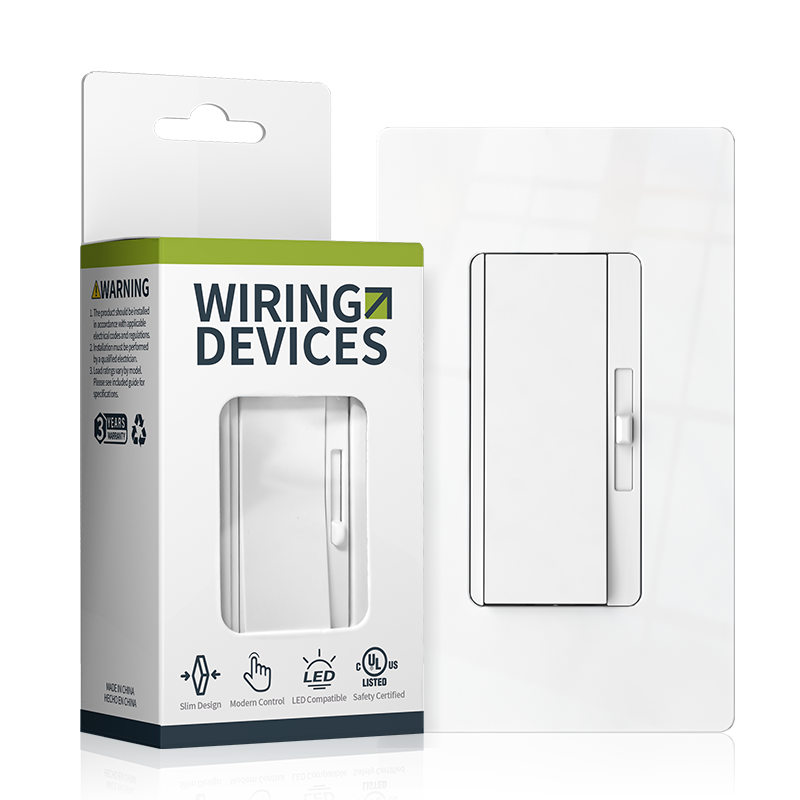

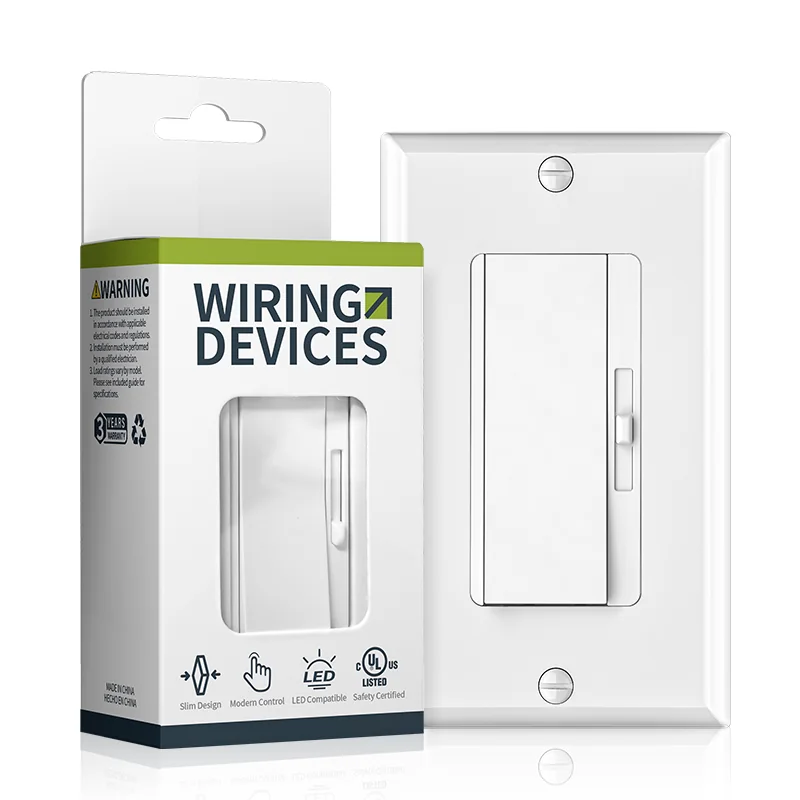

- Custom outer packaging
- Customer-branded boxes can be reviewed with your artwork and brand authorization.
- Packing quantities
- Inner-box and carton quantities are confirmed for the selected model and packaging format.
Model reference
Dimensions & installation reference.
Open the supplied reference for a closer look and check its stated scope. Follow the approved installation instructions for the exact model.
Open full drawing
Open full drawing Source documentation
Details your team can review.
Supplier-published reference: UL / cUL marking on model · file E550002
No matching certificate PDF for DM2010 is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
