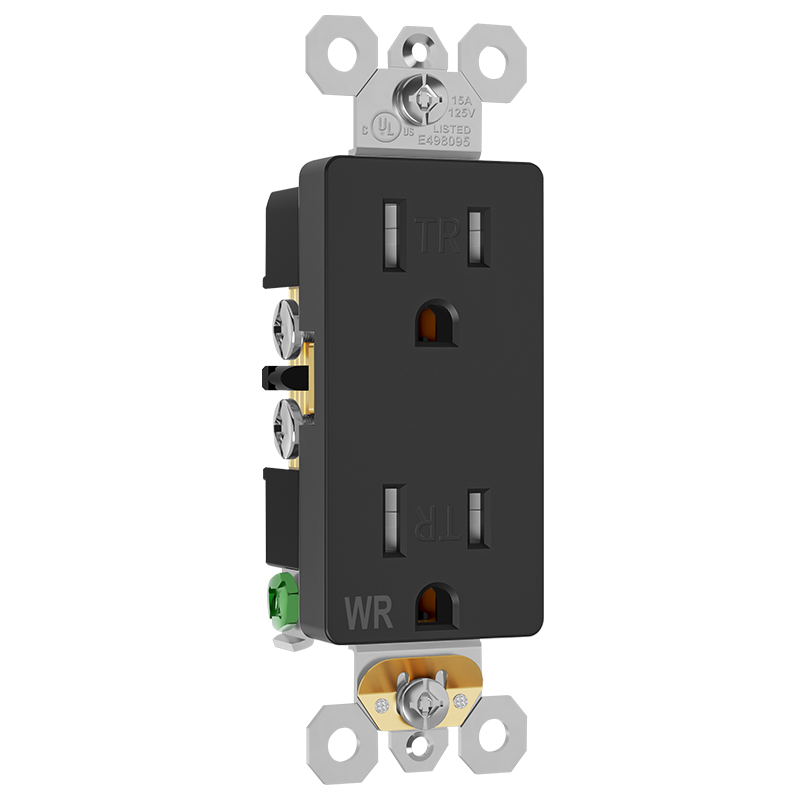

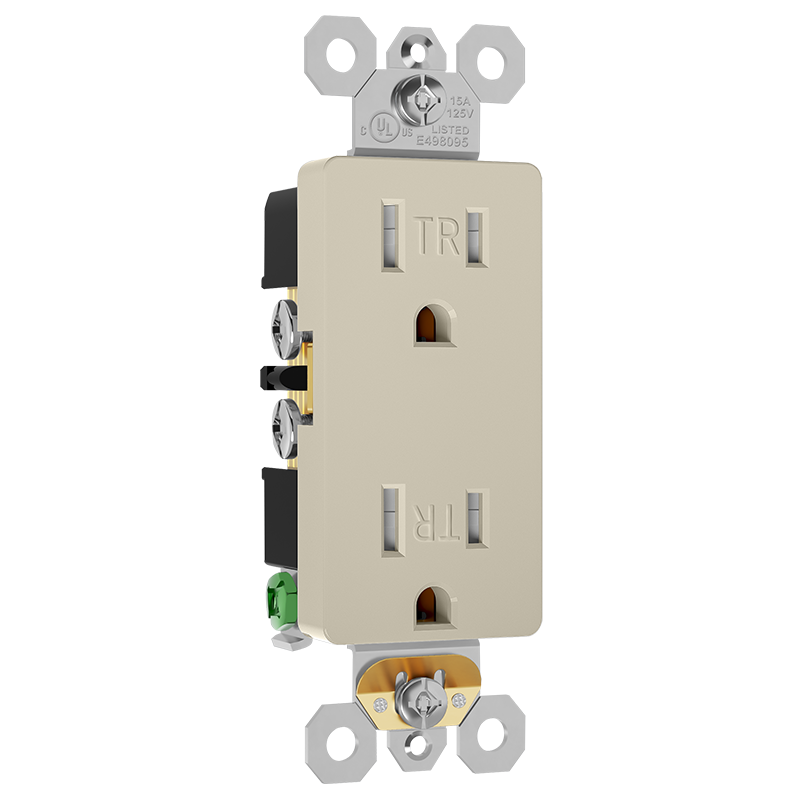

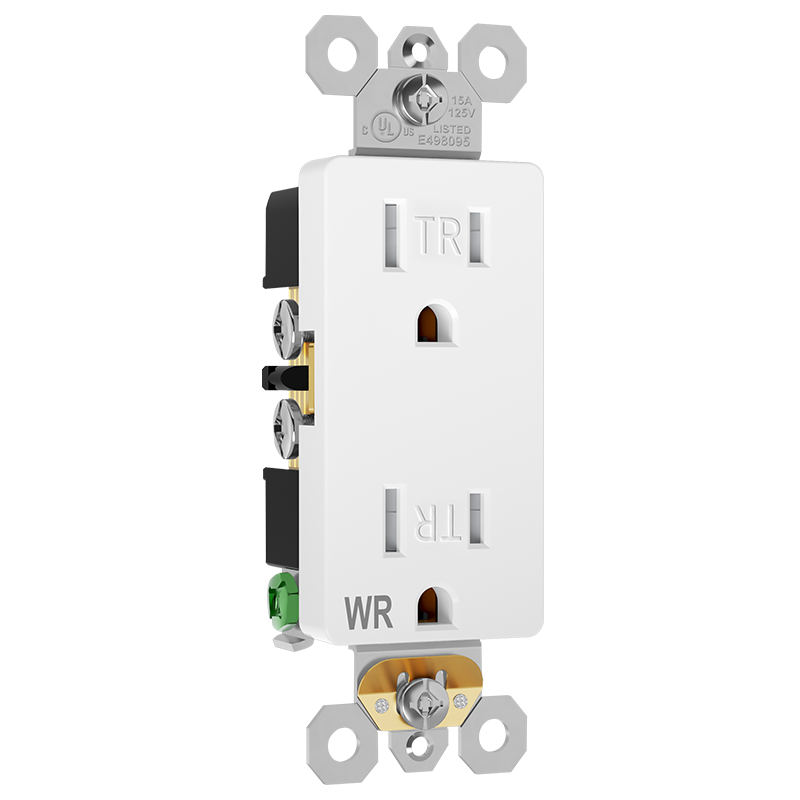

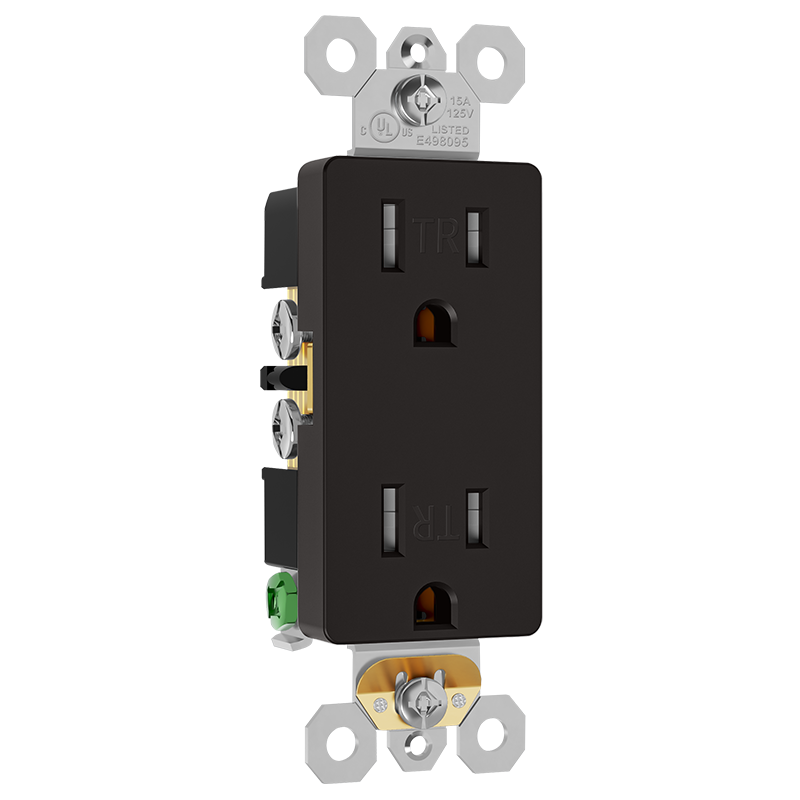

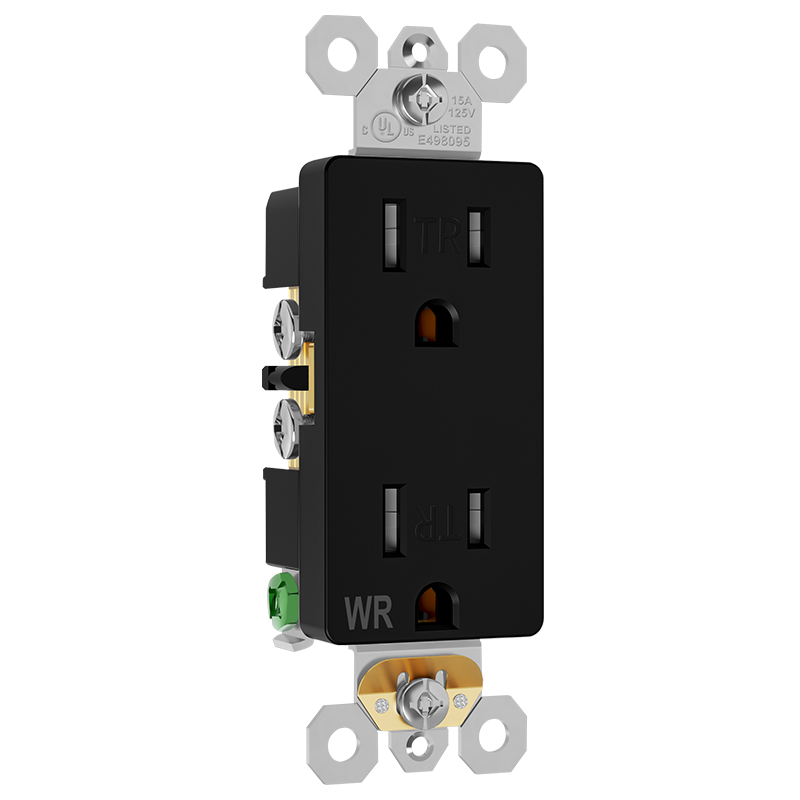

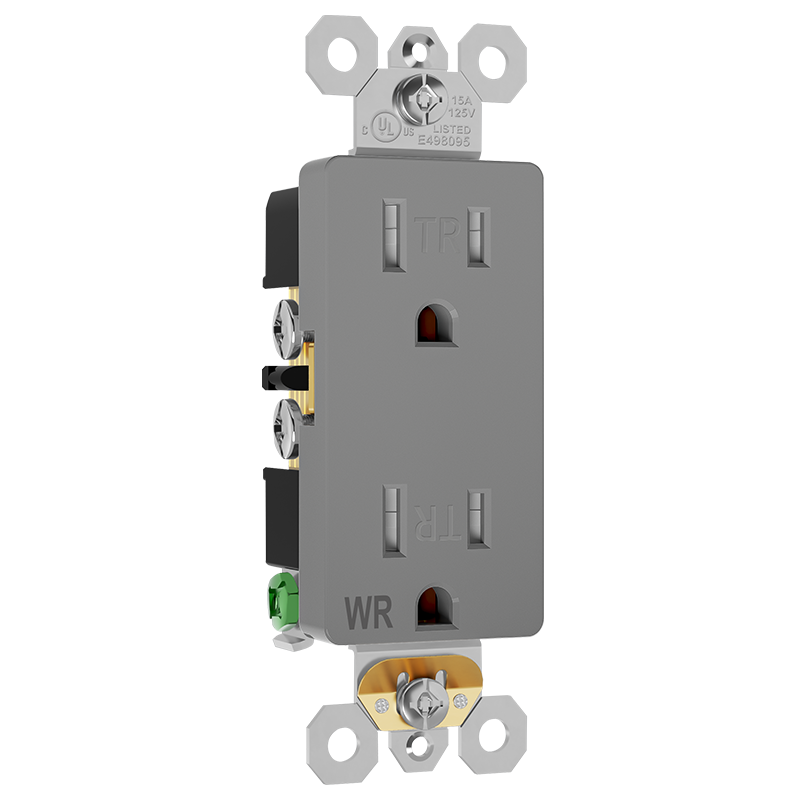

DW15

15A 125V Tamper-Resistant Weather-Resistant, UL Listed cULus Certified, Decorator Wall Outlet, Child Safe Outdoor/Indoor Electrical Socket for Residential & Commercial Use


Color:

  • White-WH

  • Black-BK

  • Ivory-IV

  • Almond-AL

  • Grey-GR

  • Brown-BR

  • Graphite-GP

Quantity:

Features & Benefits

Tamper-Resistant (TR) Design: Built-in mechanical safety barriers prevent foreign object insertion, complying with NEC mandatory requirements to protect children from electric shock.

Weather-Resistant (WR) Rating: Engineered to withstand rain, snow, humidity, and extreme temperatures, perfect for outdoor porches, garages, patios, and wet locations.

UL/c(UL) Certified for North American Market: 15A 125V NEMA 5-15 standard duplex receptacle, fully compliant with US & Canadian electrical safety codes, perfect for residential, commercial, and renovation projects.

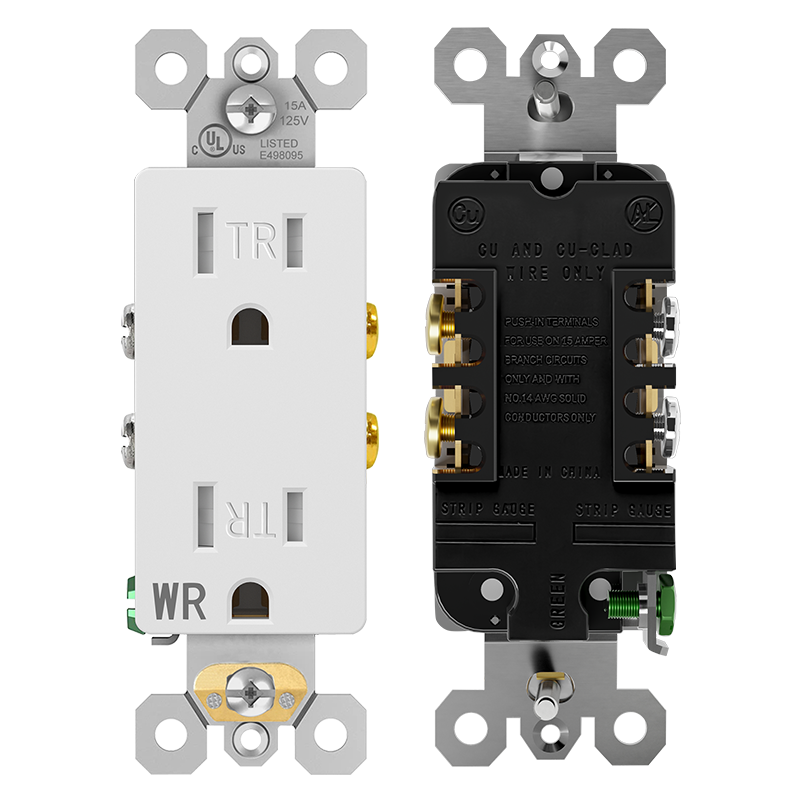

Dual Wiring Design for Easy Installation:  Back Wire & Side Wire and side screw terminals for secure, long-term connections, compatible with #14AWG copper orcopper-clad wire.

Premium Materials for Safety & Durability: Flame-retardant thermoplastic housing, high-conductivity brass terminals, and galvanized steel mounting brackets ensure long-lasting, safe performance.

Universal Compatibility & Easy Replacement: Fits all standard US wall plates and electrical boxes, ideal for upgrading old outlets, new construction, or retrofitting in homes, offices, hotels, and retail spaces.

Built-in Safety Features: Green grounding screw for reliable shock protection, strip gauge markings for error-free wiring, and corrosion-resistant components meet NEC safety requirements.


Specifications

ModelDW15
CertificationUL/CUL
File No.E498095
GradeResidential & Commercial
FeatureDecorative Outlet
Standard VersionUL498 16th Edition/CSA C22.2 NO. 42-10
WiringBack Wire & Side Wire
Rating15A 125V AC
NEMA5-15R
Pole & Wire2-Pole, 3 Wire
SpecTamper-Resistant Weather-Resistant
GroundingSelf-Grounding with Extend Cooper Clip
Dielectric Voltage Withstand1250V

Material Characteristics

Front Cover/Body: High-Impact PC-Thermoplastic

Operation Temperature: -35 ℃~ 70 ℃

Environmental : Flammability UL-94 V2 Rating

Yoke: Zinc-Plated Steel 1.2mm Thick

Clamps: Phosphor Bronze 0.8mm Thick

Terminal Screws: Plated Steel

Warranty: 3 Years Limited

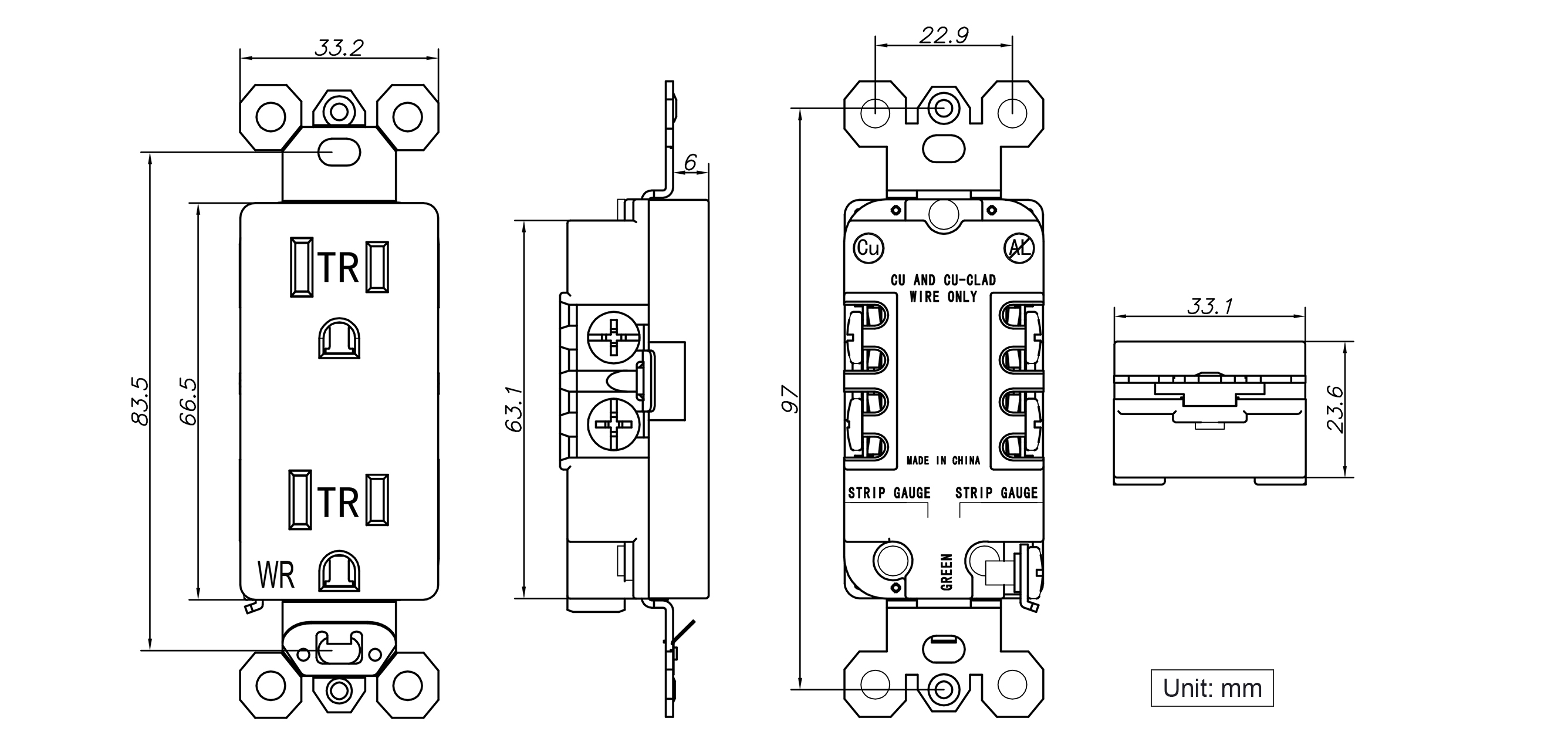

Diemension
