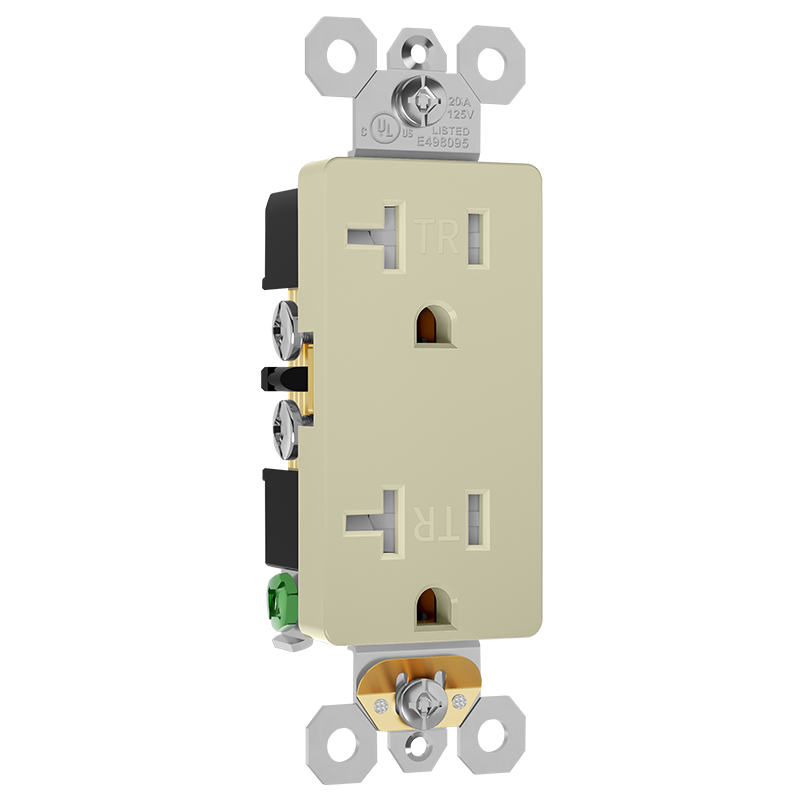

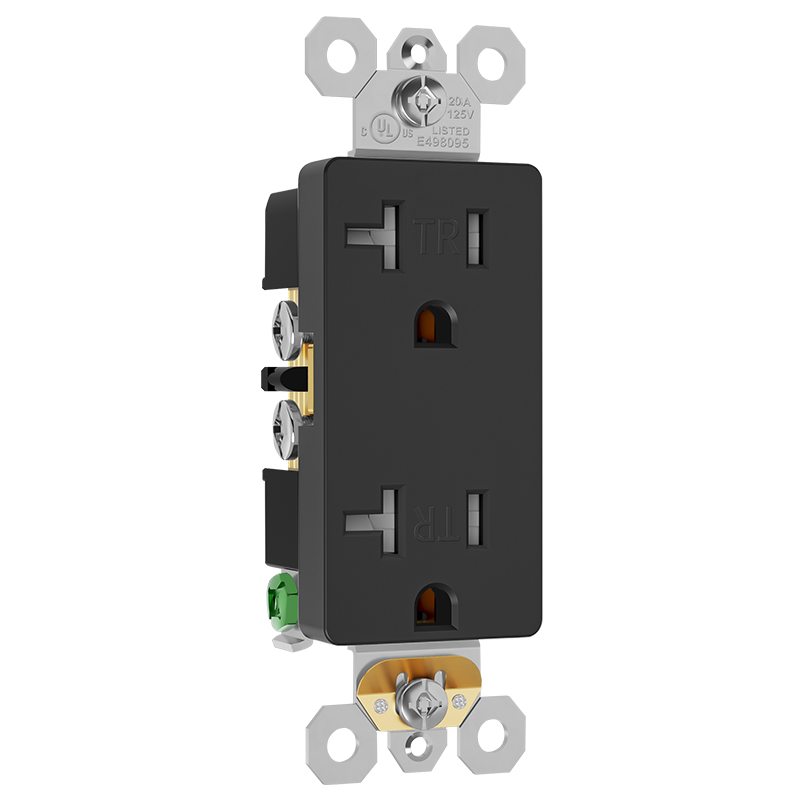

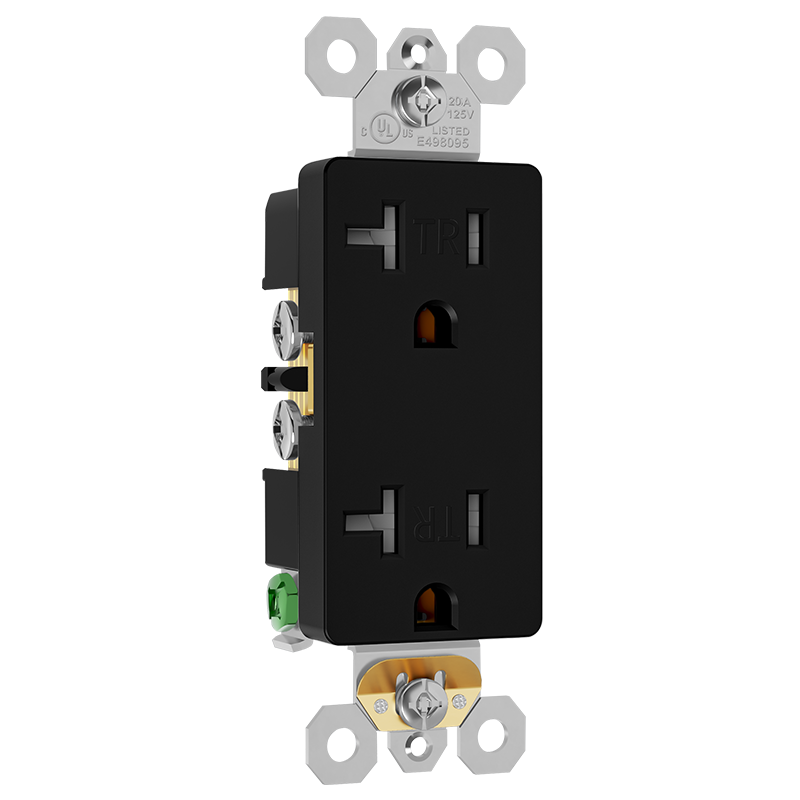

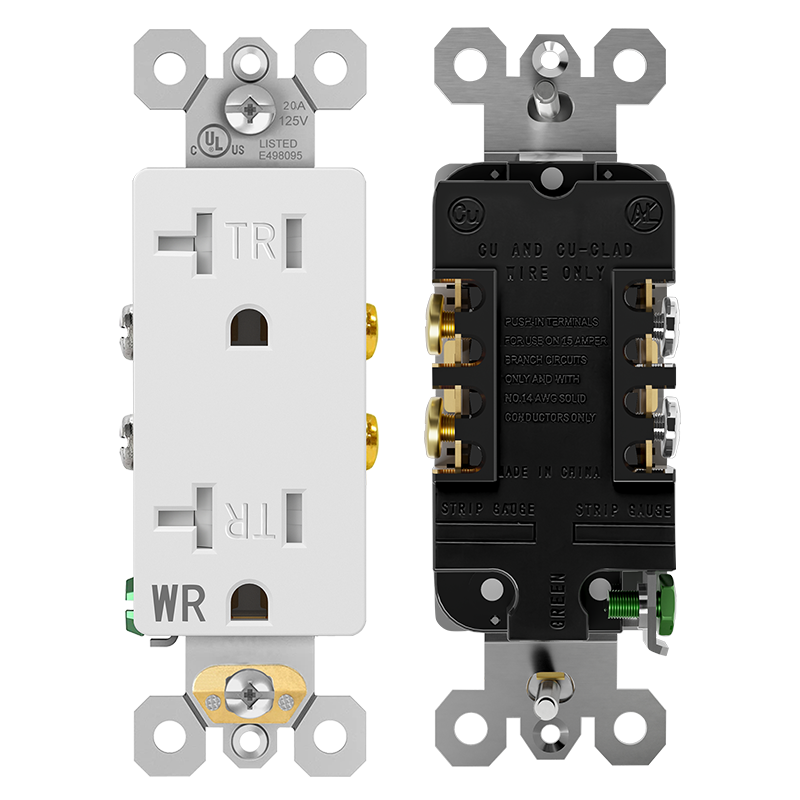

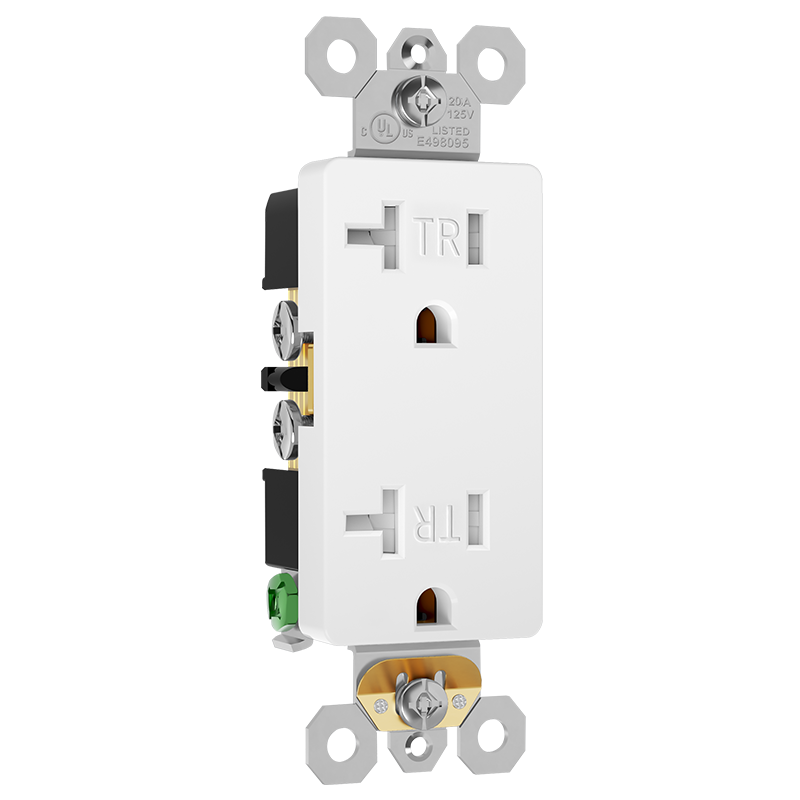

DT20
20A 125V Tamper Resistant, UL Listed cULus Certified, Decorator Wall Outlet, Child Safe Electrical Socket for Residential & Commercial Use
Language
<
Return to main menu
Color:
-
White-WH
-
Black-BK
-
Ivory-IV
-
Almond-AL
-
Grey-GR
-
Brown-BR
-
Graphite-GP
Quantity:
Features & Benefits
Tamper-Resistant (TR) Design: Built-in mechanical safety barriers prevent foreign object insertion, complying with NEC mandatory requirements to protect children from electric shock.
UL/c(UL) Certified for North American Market: 20A 125V NEMA 5-20 standard duplex receptacle, fully compliant with US & Canadian electrical safety codes, perfect for residential, commercial, and renovation projects.
Dual Wiring Design for Easy Installation: Back Wire & Side Wire and side screw terminals for secure, long-term connections, compatible with #12AWG copper orcopper-clad wire.
Premium Materials for Safety & Durability: Flame-retardant thermoplastic housing, high-conductivity brass terminals, and galvanized steel mounting brackets ensure long-lasting, safe performance.
Universal Compatibility & Easy Replacement: Fits all standard US wall plates and electrical boxes, ideal for upgrading old outlets, new construction, or retrofitting in homes, offices, hotels, and retail spaces.
Built-in Safety Features: Green grounding screw for reliable shock protection, strip gauge markings for error-free wiring, and corrosion-resistant components meet NEC safety requirements.
Specifications
| Model | DT20 |
| Certification | UL/CUL |
| File No. | E498095 |
| Grade | Residential & Commercial |
| Feature | Decorative Outlet |
| Standard Version | UL498 16th Edition/CSA C22.2 NO. 42-10 |
| Wiring | Back Wire & Side Wire |
| Rating | 20A 125V AC |
| NEMA | 5-20R |
| Pole & Wire | 2-Pole, 3 Wire |
| Spec | Tamper-Resistant |
| Grounding | Self-Grounding with Extend Cooper Clip |
| Dielectric Voltage Withstand | 1250V |
Material Characteristics
Front Cover/Body: High-Impact PC-Thermoplastic
Operation Temperature: -35 ℃~ 70 ℃
Environmental : Flammability UL-94 V2 Rating
Yoke: Zinc-Plated Steel 1.2mm Thick
Clamps: Phosphor Bronze 0.8mm Thick
Terminal Screws: Plated Steel
Warranty: 3 Years Limited

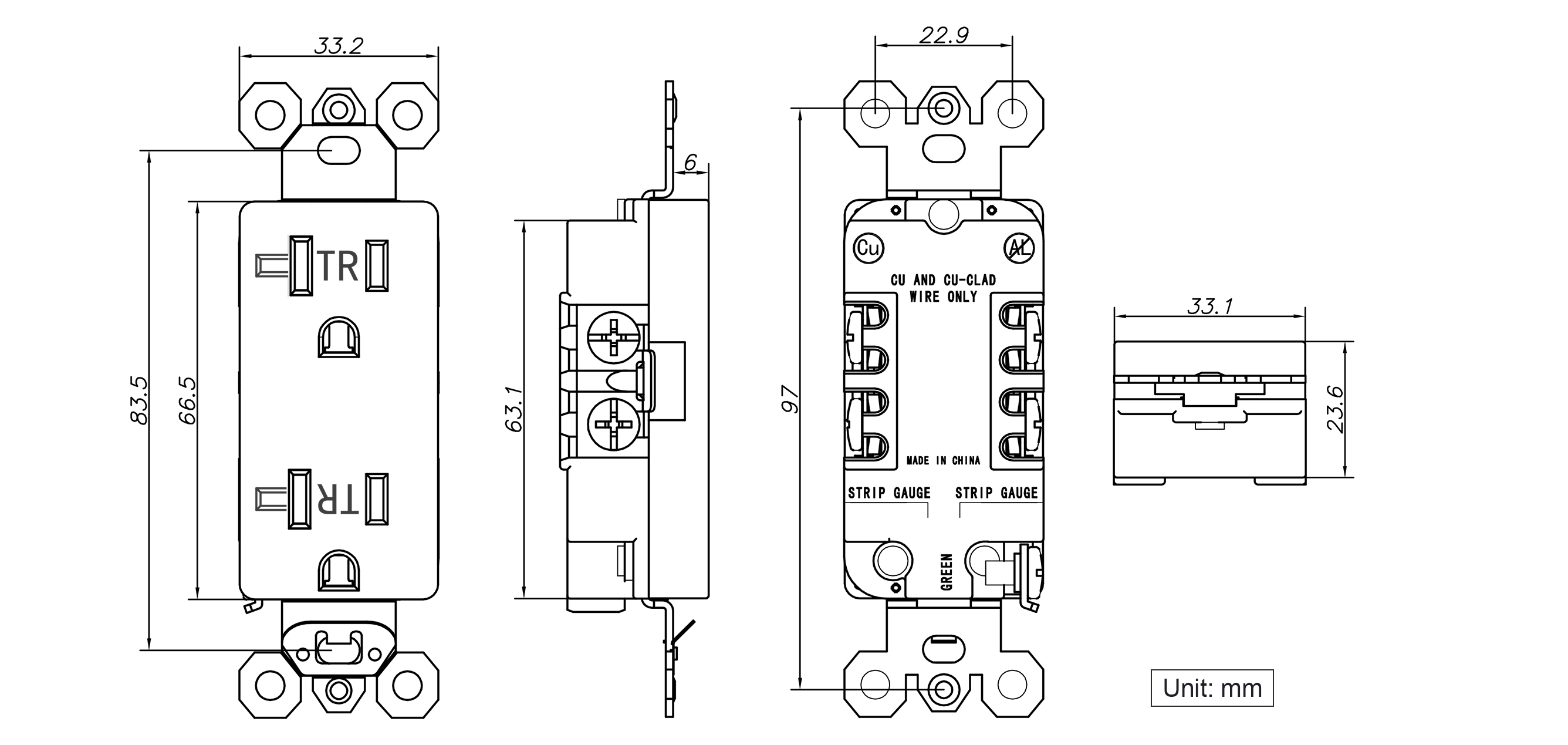

Diemension

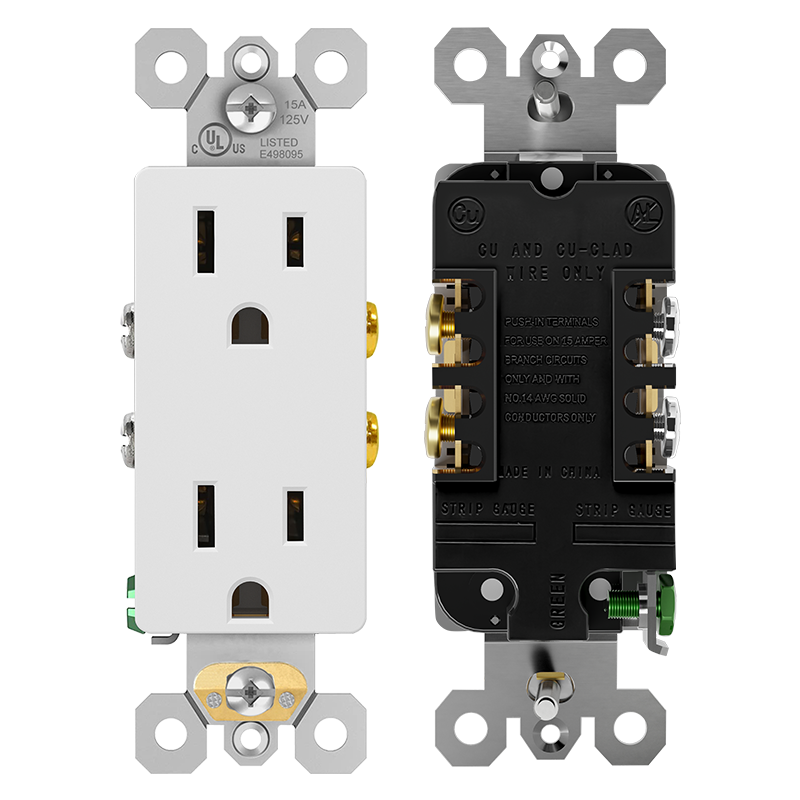

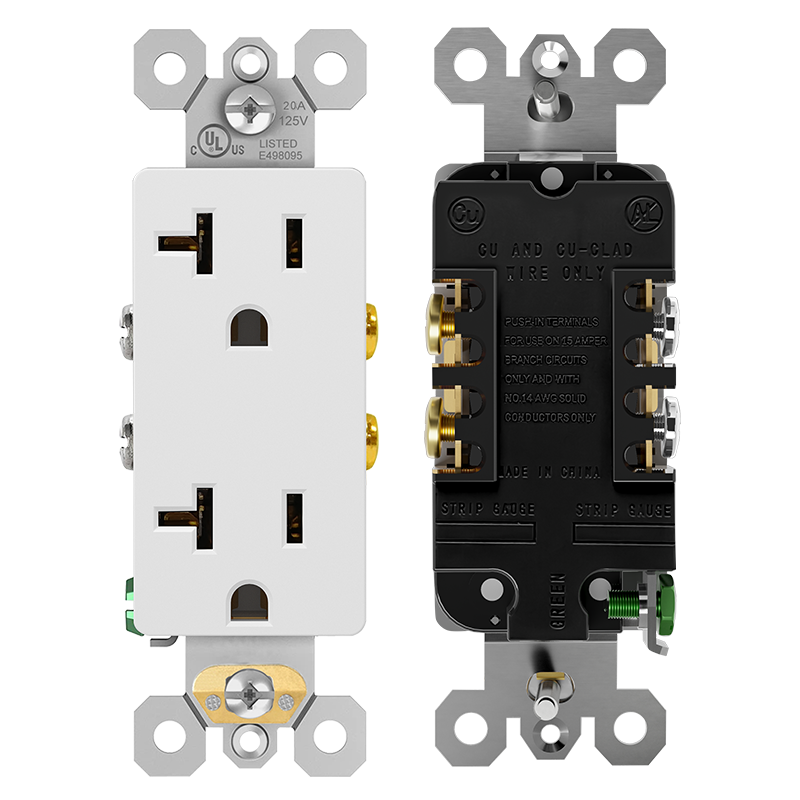

Related Products
