RW15
15A 125V Tamper Resistant Weather Resistant Duplex Receptacle, UL Listed, Residential & Commercial Grade Wall Outlet
Language
<
Return to main menu
Color:
-

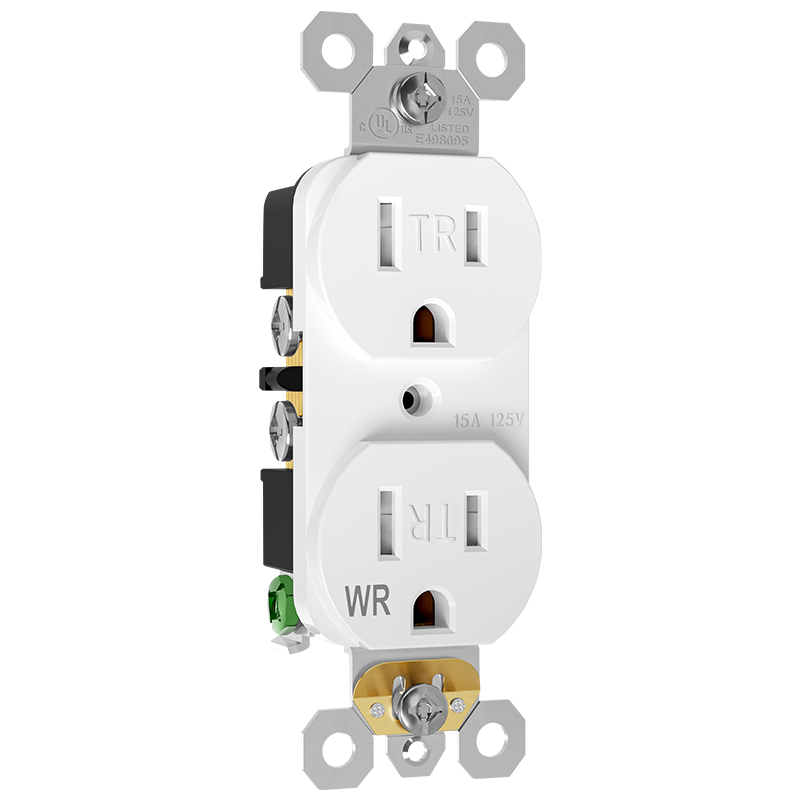

White-WH
-

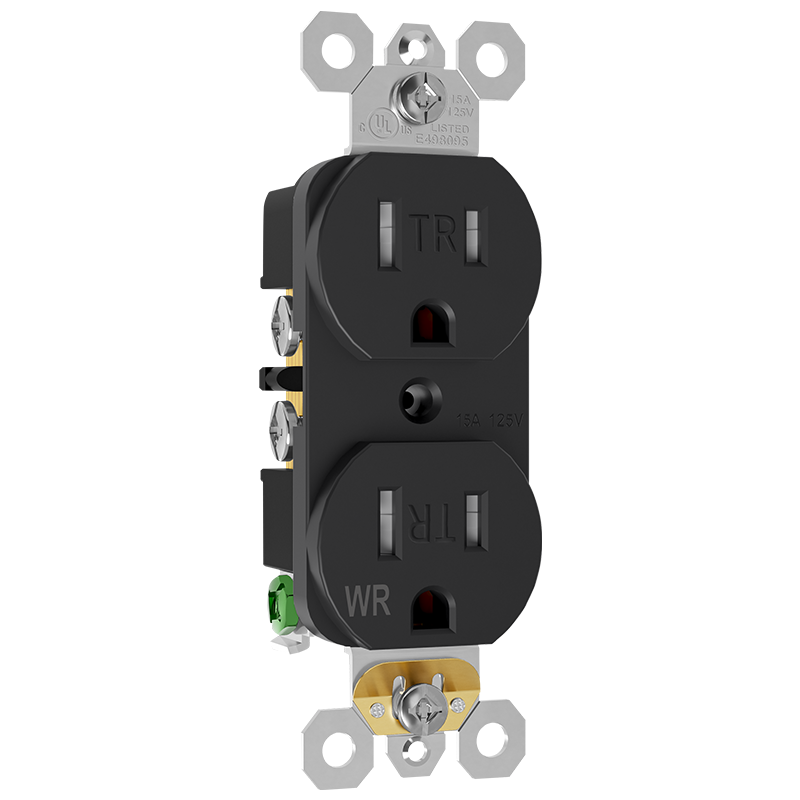

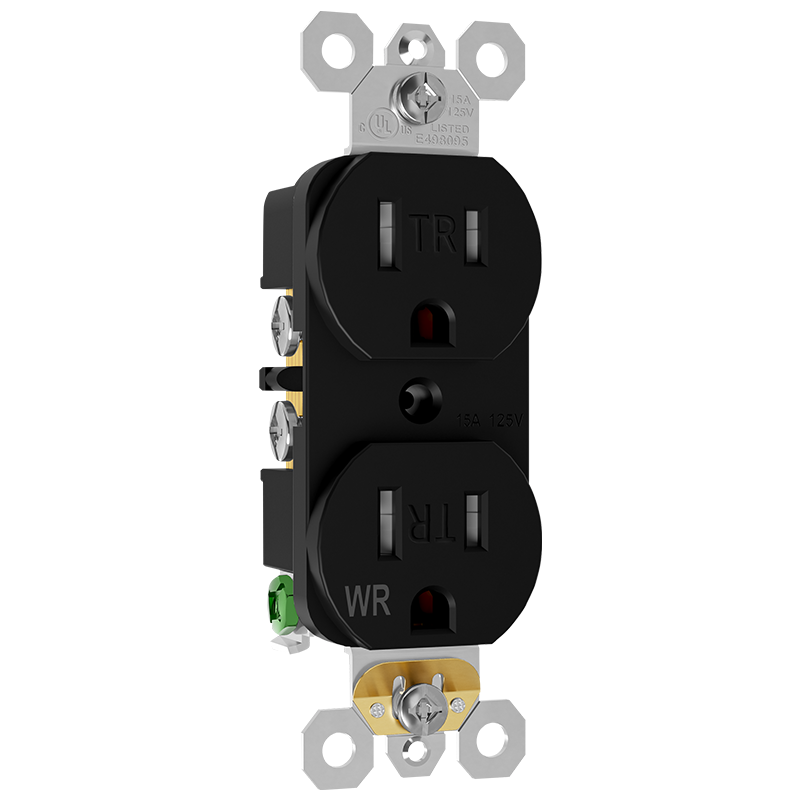

Black-BK
-

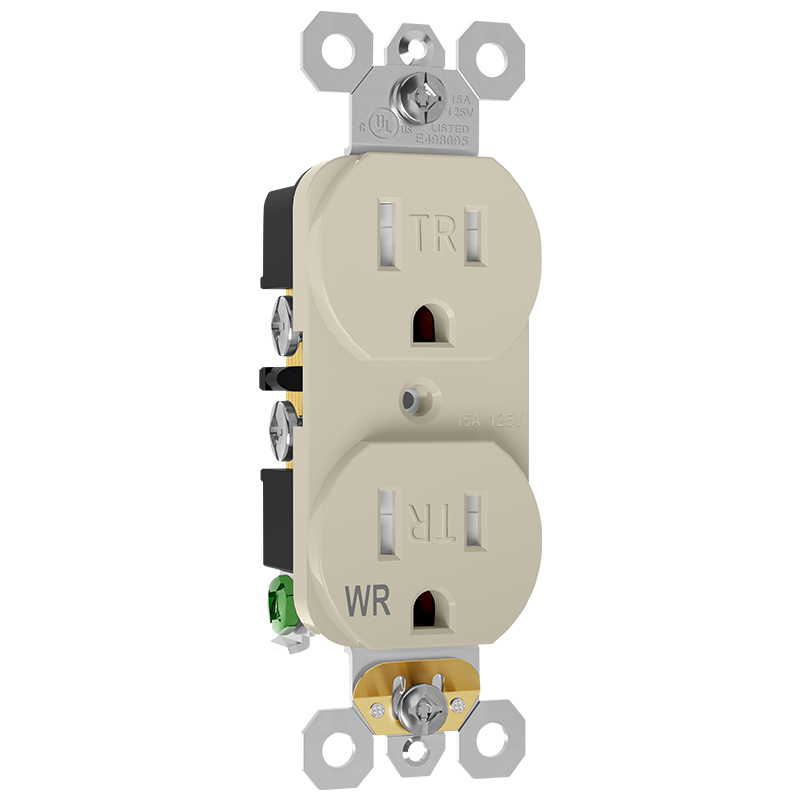

Ivory-IV
-
Almond-AL
-

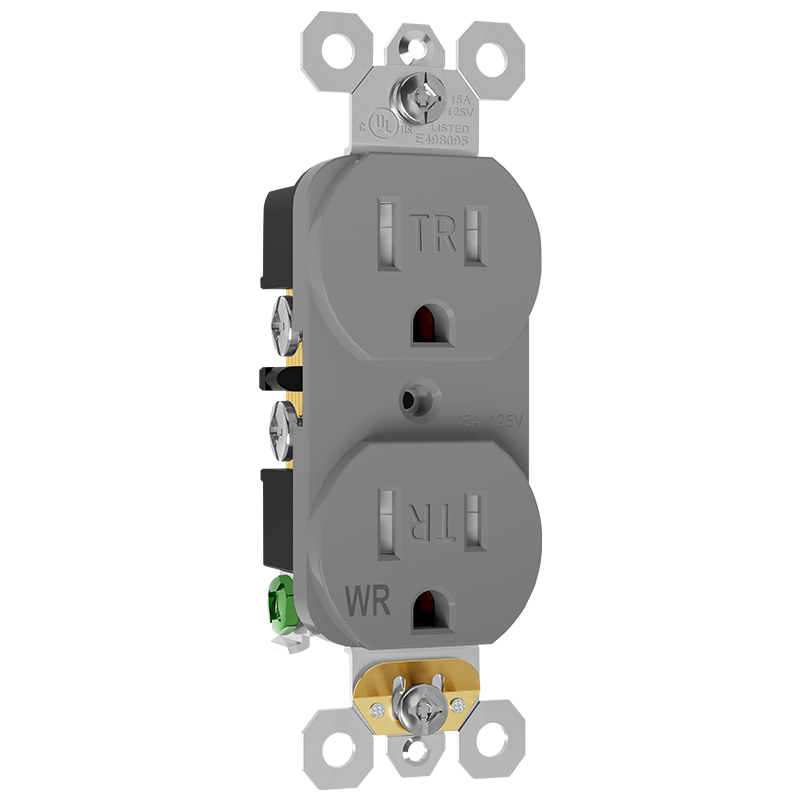

Grey-GR
-
Brown-BR
-
Graphite-GP
Quantity:
Features & Benefits
Tamper-Resistant (TR) Design: Built-in mechanical safety barriers prevent children from inserting foreign objects, fully compliant with NEC safety standards for residential use.
Weather-Resistant (WR) Construction: Rated for wet locations, perfect for outdoor, garage, and basement use.
UL Listed Safety – 15A 125V rating, certified to North American safety standards for reliable, hazard-free power.

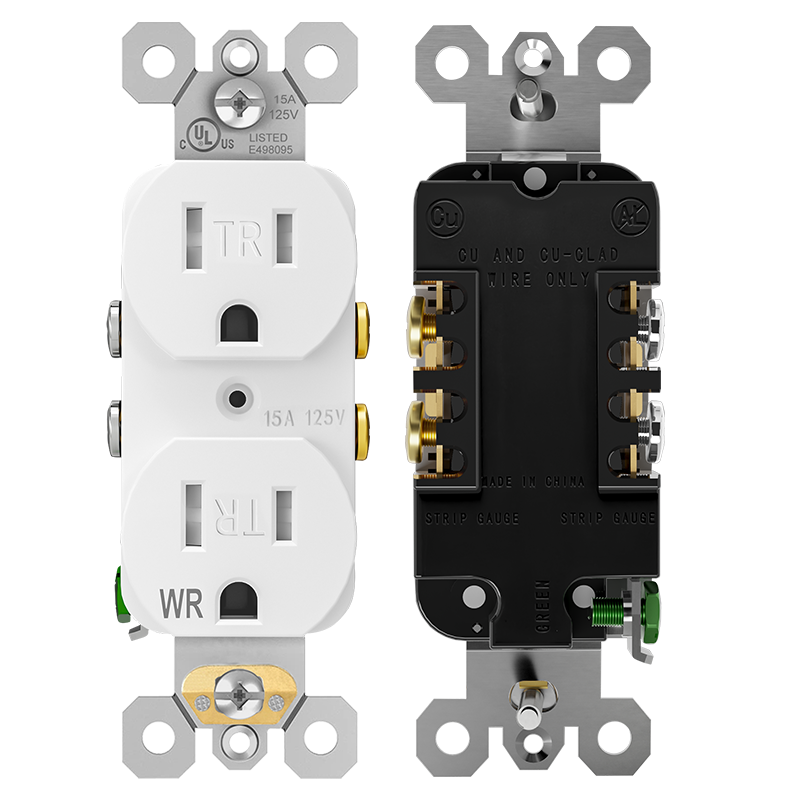

Easy Dual-Wiring – Back Wire & Side Wire, with clear strip gauges for fast, hassle-free installation.
Heavy-Duty Durability – Commercial-grade brass contacts & fire-resistant housing for long-lasting, high-traffic use.
Universal Compatibility – Standard NEMA 5-15 duplex socket fits all common North American 15A plugs.
Sleek Modern Design – Clean finish blends seamlessly with any wall decor for a professional look.
Specifications
| Model | RW15 |
| Certification | UL/CUL |
| File No. | E498095 |
| Grade | Residential & Commercial |
| Feature | Duplex Outlet |
| Standard Version | UL498 16th Edition/CSA C22.2 NO. 42-10 |
| Wiring | Back Wire & Side Wire |
| Rating | 15A 125V AC |
| NEMA | 5-15R |
| Pole & Wire | 2-Pole, 3 Wire |
| Spec | Tamper-Resistant & Weather Resistant |
| Grounding | Self-Grounding with Extend Cooper Clip |
| Dielectric Voltage Withstand | 1250V |
Material Characteristics
Front Cover/Body: High-Impact PC-Thermoplastic
Operation Temperature: -35 ℃~ 70 ℃
Environmental : Flammability UL-94 V2 Rating
Yoke: Zinc-Plated Steel 1.2mm Thick
Clamps: Phosphor Bronze 0.8mm Thick
Terminal Screws: Plated Steel
Warranty: 3 Years Limited

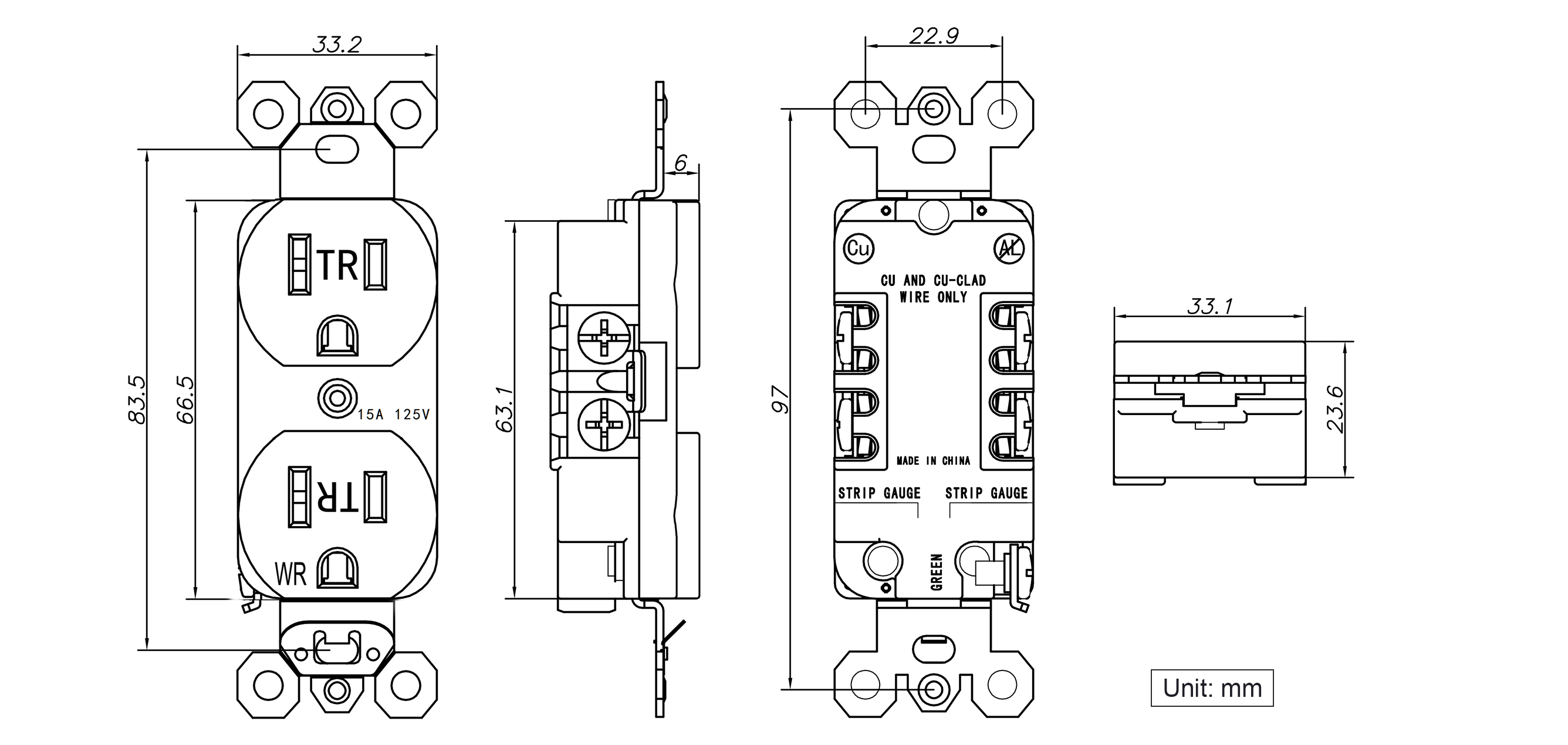

Diemension
