Color:
-

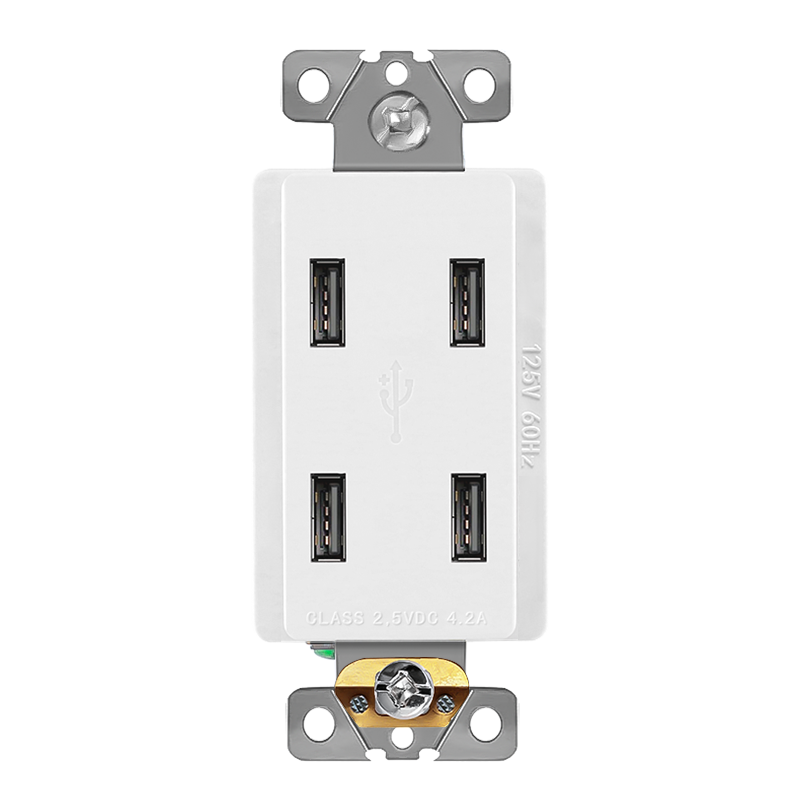

White-WH
-

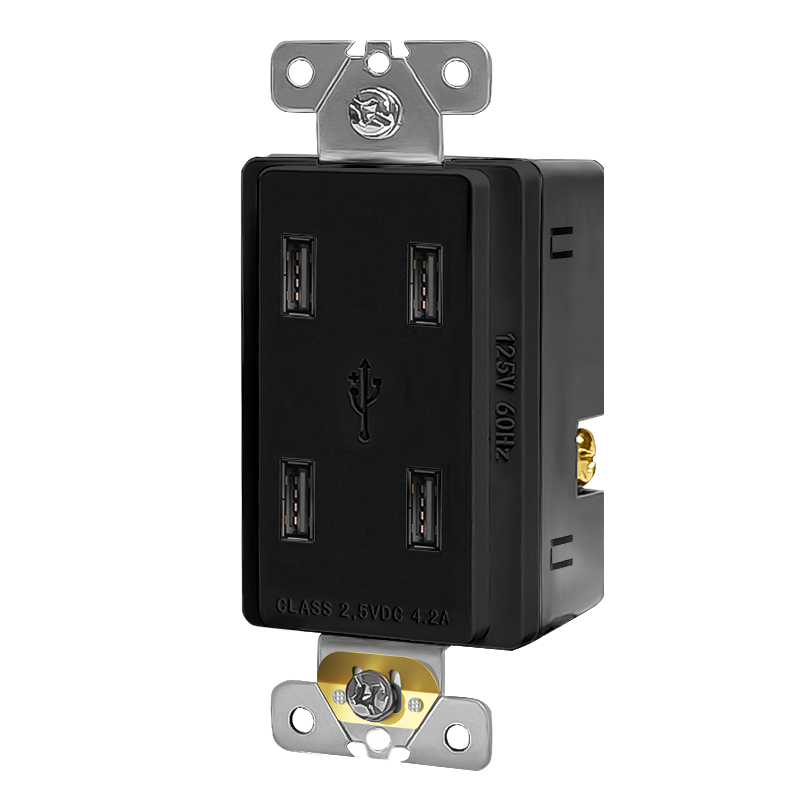

Black-BK
-

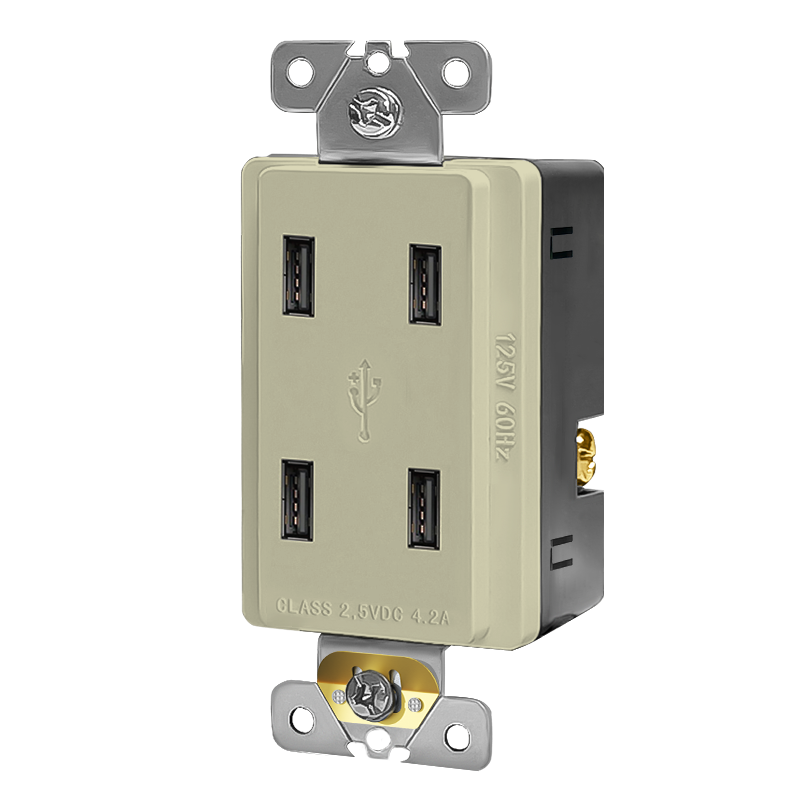

Ivory-IV
-
Almond-AL
-
Grey-GR
-
Brown-BR
-
Graphite-GP
Quantity:

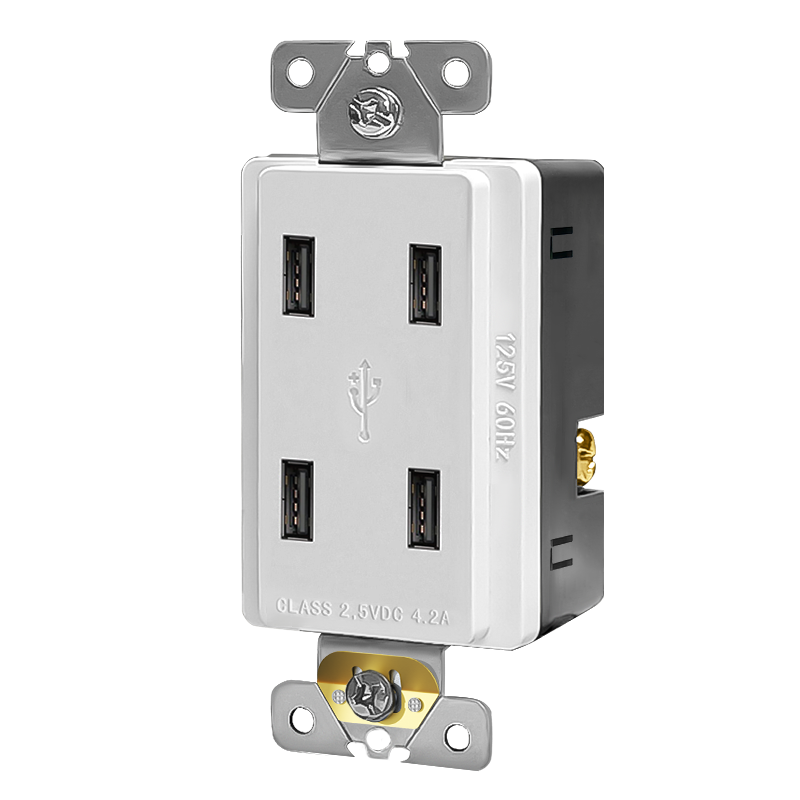

Features & Benefits
UL/cUL certified File No.E498095;
Residence Homelife：Laundry rooms, Living rooms, Kitchens, Basements, Garages,Commercial Offices Retail shopping MallsPublic areas, Restaurants, Shopping Center, Lounges;Airport, Train Station waiting rooms, Coffee Center; Education Facilities
Classrooms, Restrooms, Laboratories;
Warranty for 3 years;
Specifications
| Model | F4P |
| Certification | UL/CUL |
| Standard | UL498/CSA C22.2 No. 42, 7th Ed |
| Receptacle Rating | 125V 60Hz |
| USB Rating | 4.2A, 2.5V DC |
| 4 x USB A | 5V DC 2.4A Max |
| Operating Temp | -35℃ to 66℃ (-30℉ to 150℉) |

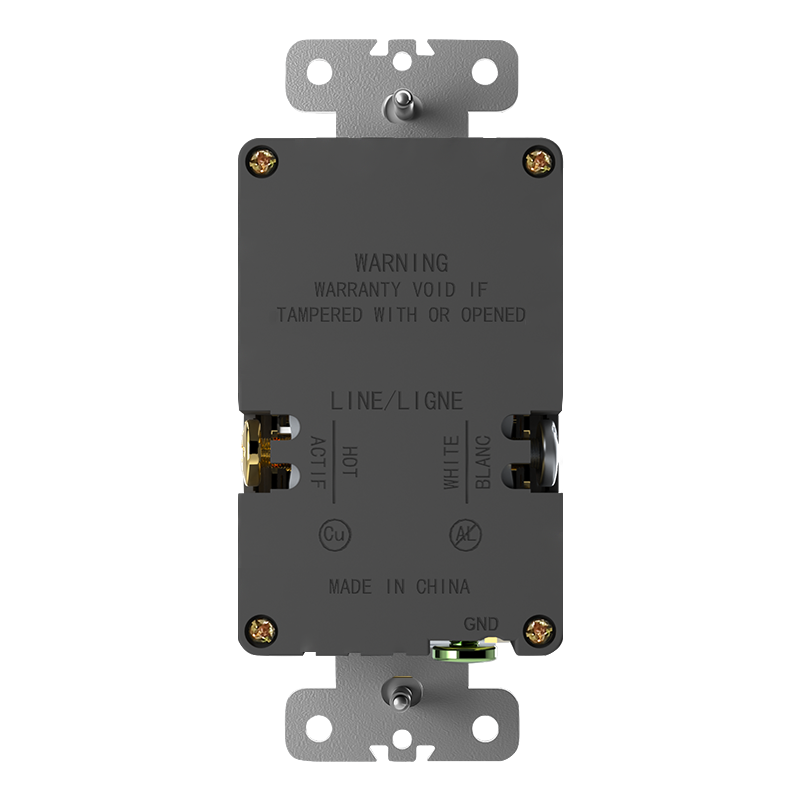

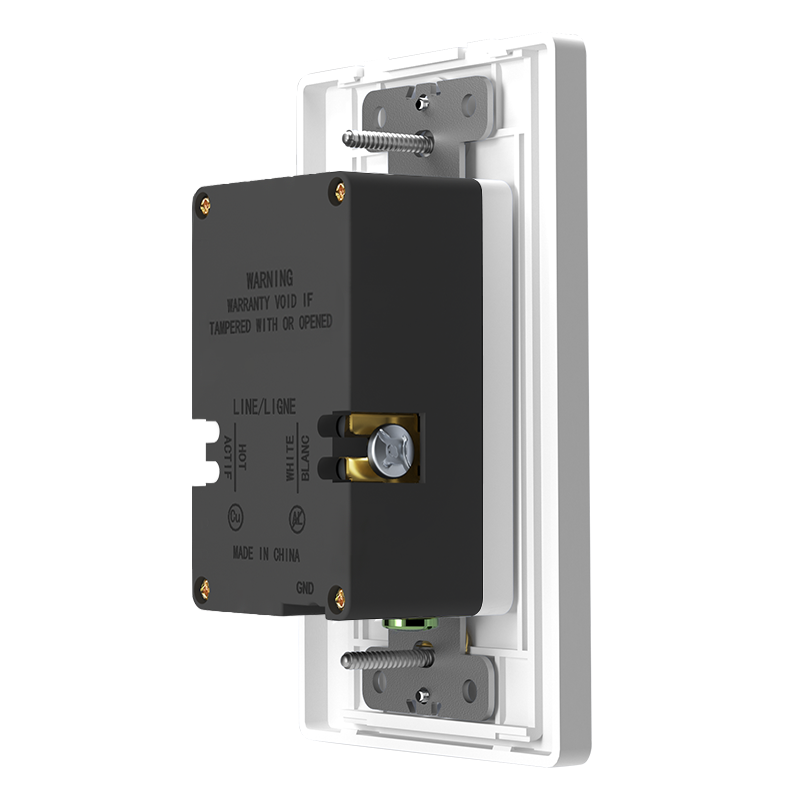

| Wiring Method | Side Wire & Back Wire |
| Wire Gauge | #12~#14 AWG Copper Wire |
| Grade | Residential & Commercial Grade |
| Pole & Wire | 2-Pole, 3-Wire |
| Grounding | Self-Grounding |
| Tamer-Resistant | Non |
| Weather-Resistant | Non |

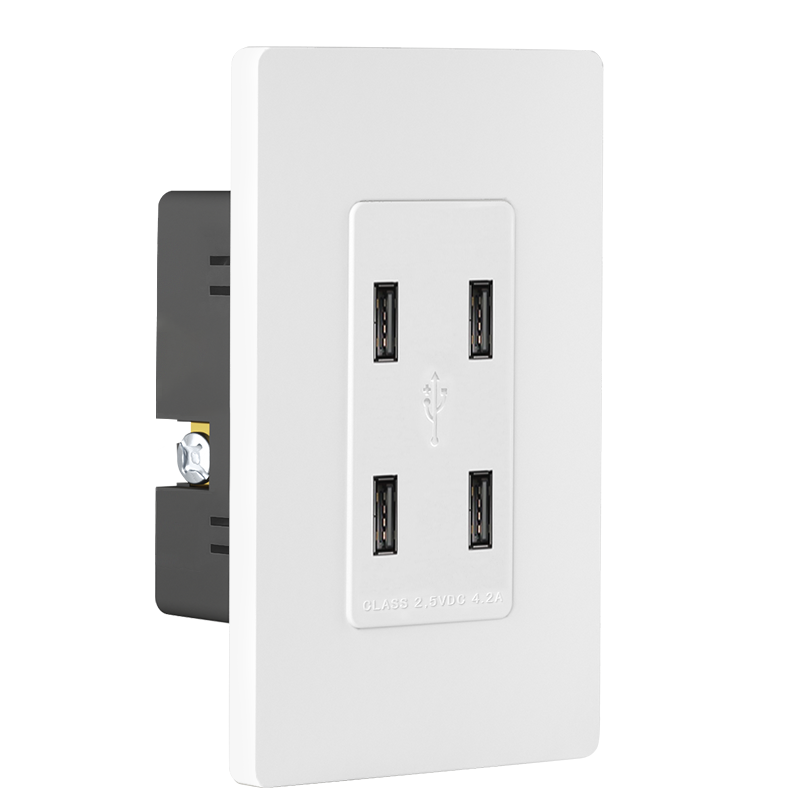

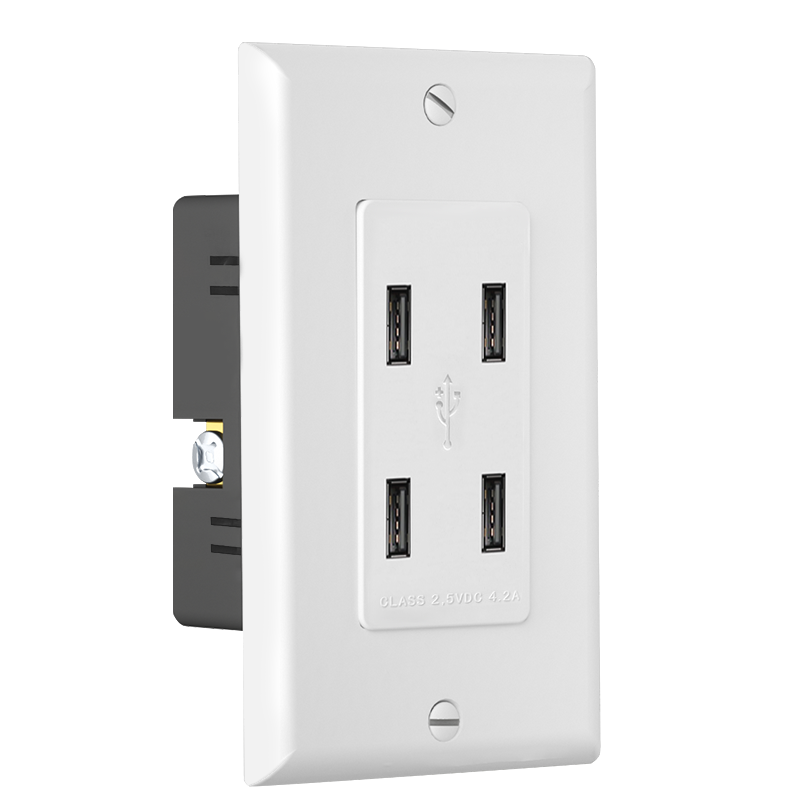

| Wallplate | Standard / Screwless Wallplate Optional |
Material Characteristics
Material: Face, Thermoplastic; Body, Thermoplastic;
0.8mm thick high-precision phosphorus bronze;
1.2mm thick galvanized steel bracket;
Silver alloy contacts with 30 silver layer thick;
Coated PC board with Smart chip MCU to protect critical components from moisture;
Environmental: Flammability UL-94 V1 Rating.
Smart Built-in smart chip recognizes the individual device’s charging requirements to optimize the charge;
Powerful Two high-powered charging ports deliver a combined total of up to 4.2A charging current and 25 watts of power;
Convenient No more searching for charging adapters. Upgrade your existing outlets so youcan charge up to four USB powered devices at once, leaving the outlets free for additional power needs;
The future of charging USB Type-A provides faster charging;
Easy Installation Compact design fits in a standard wall box and compatible with Decorator and Decorator Plus screwless wall plates, back and side wired for easy installation;
UL/cUL Listed Compatible with USB 1.1/2.1/3.0 devices. Designed for back and side wiring for easy installation;

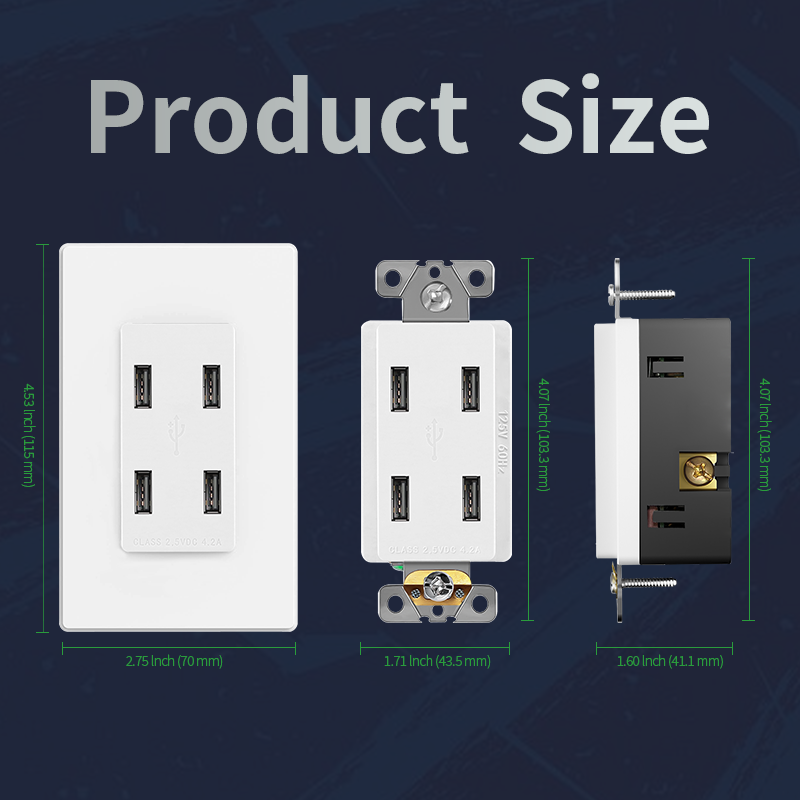

Diemension
